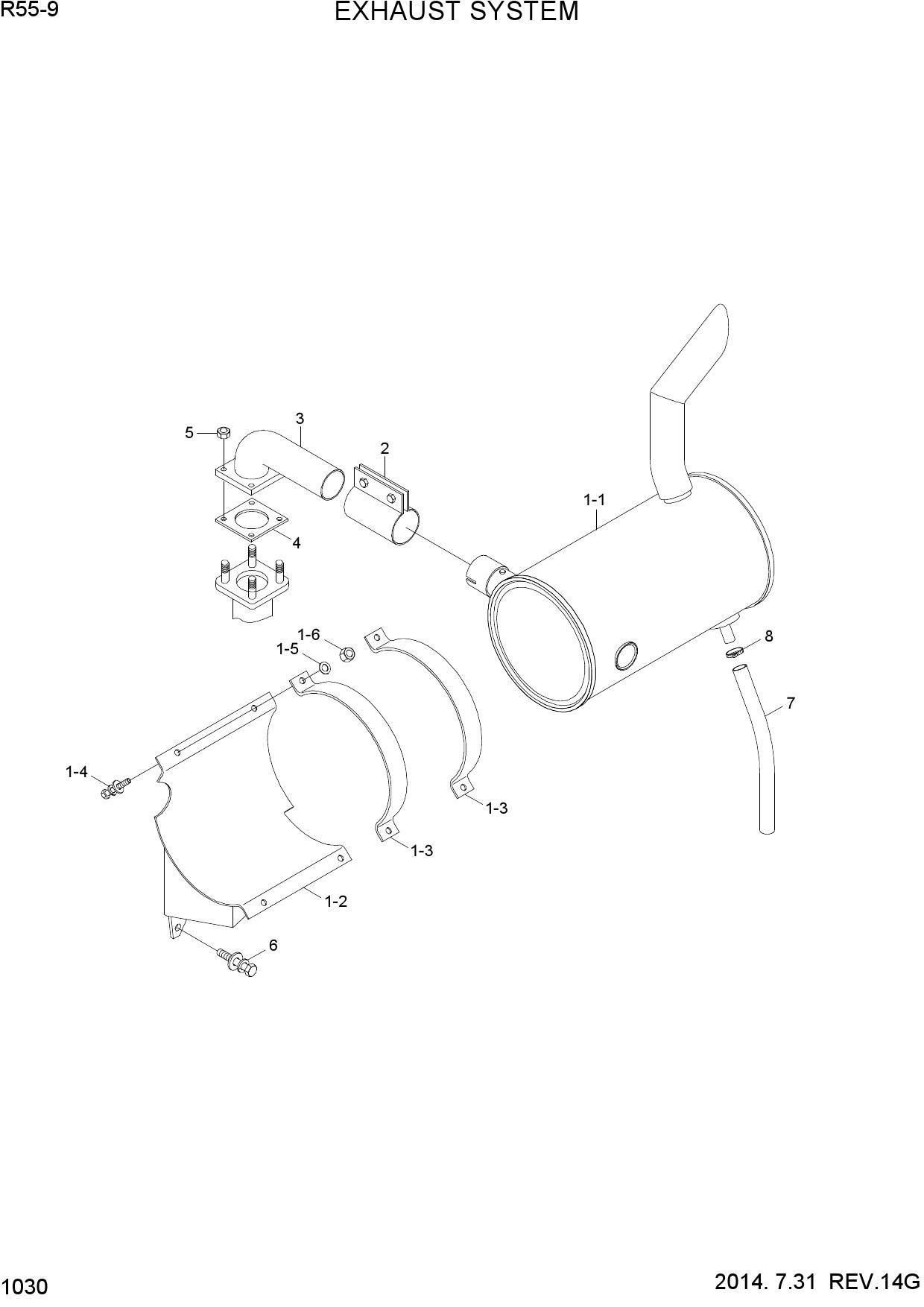

EXHAUST SYSTEM
1 11M9-30340
- 11M9-30340 - MUFFLER SUB ASSY
- Поз.: 1
2 11M9-30350
- 11M9-30350 - MUFFLER WA
- Поз.: 1-1
3 11M9-30353
- 11M9-30353 - MUFFLER WA
- Поз.: 1-1
4 11M9-30355
- 11M9-30355 - MUFFLER WA
- Поз.: 1-1
5 11M9-30356
- 11M9-30356 - MUFFLER WA
- Поз.: 1-1
6 11N1-32120
- 11N1-32120 - BRACKET-MUFFLER
- Поз.: 1-2
7 11M8-32260
- 11M8-32260 - CLAMP-BAND
- Поз.: 1-3
8 S035-083056
- S035-083056 - BOLT-W/WASHER
- Поз.: 1-4
9 S441-08000B
- S441-08000B - WASHER-HARDENED
- Поз.: 1-5
10 S203-081006
- S203-081006 - NUT-HEX
- Поз.: 1-6
11 11M8-30041
- 11M8-30041 - CLAMP-SEAL
- Поз.: 2
12 11M8-30020
- 11M8-30020 - PIPE WA
- Поз.: 3
13 11M6-56100
- 11M6-56100 - GASKET
- Поз.: 4
14 S285-08100B
- S285-08100B - NUT-FLANGED
- Поз.: 5
15 S285-08100B
- S285-08100B - NUT-FLANGED
- Поз.: 5
16 S285-08100B
- S285-08100B - NUT-FLANGED
- Поз.: 5
17 S285-08100B
- S285-08100B - NUT-FLANGED
- Поз.: 5
18 S037-103056
- S037-103056 - BOLT-W/WASHER
- Поз.: 6
19 11M9-31310
- 11M9-31310 - HOSE
- Поз.: 7
20 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 8
