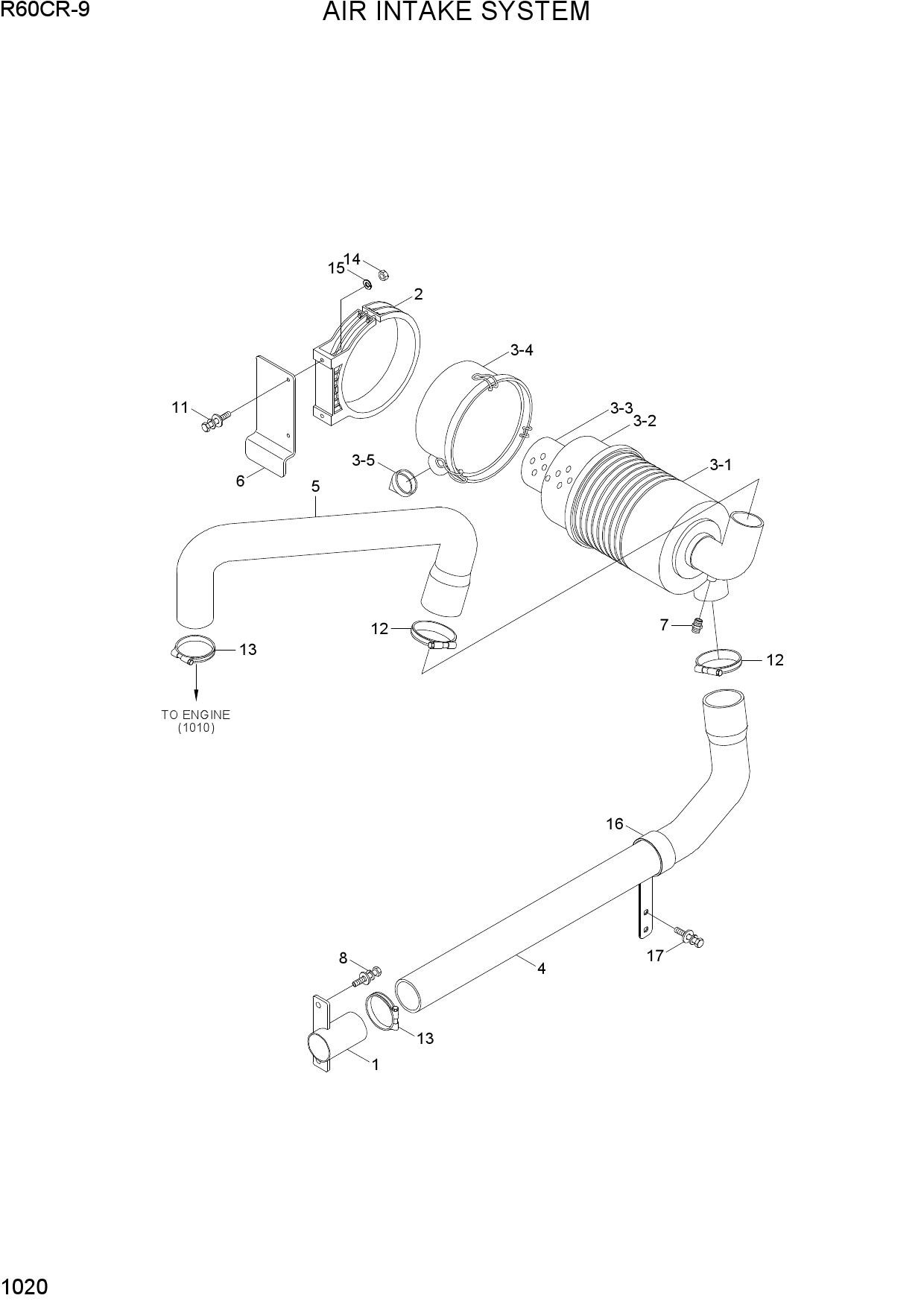

AIR INTAKE SYSTEM
1 11Q1-20522
- 11Q1-20522 - PIPE WA
- Поз.: 1
2 11M9-20340
- 11M9-20340 - BRACKET-AIR CLEANER
- Поз.: 2
3 11S7-40070
- 11S7-40070 - AIR CLEANER ASSY
- Поз.: 3
4 11S7-40120
- 11S7-40120 - ELEMENT-PRIMARY(OUT)
- Поз.: 3-2
5 11S7-40130
- 11S7-40130 - ELEMENT-SAFETY(IN)
- Поз.: 3-3
6 11S7-40140
- 11S7-40140 - COVER ASSY
- Поз.: 3-4
7 11S7-40150
- 11S7-40150 - VALVE-VACUATOR
- Поз.: 3-5
8 11Q1-20532
- 11Q1-20532 - HOSE
- Поз.: 4
9 11ML-20011
- 11ML-20011 - HOSE
- Поз.: 5
10 11ML-20070
- 11ML-20070 - BRACKET
- Поз.: 6
11 11FQ-20060
- 11FQ-20060 - ADAPTER
- Поз.: 7
12 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 8
13 S035-083526
- S035-083526 - BOLT-W/WASHER
- Поз.: 11
14 S520-076000
- S520-076000 - CLAMP-HOSE
- Поз.: 12
15 S520-058000
- S520-058000 - CLAMP-HOSE
- Поз.: 13
16 S205-08100B
- S205-08100B - NUT-HEX
- Поз.: 14
17 S411-08000B
- S411-08000B - WASHER-SPRING
- Поз.: 15
18 11Q1-20540
- 11Q1-20540 - CLAMP ASSY-HOSE
- Поз.: 16
19 S037-103526
- S037-103526 - BOLT-W/WASHER
- Поз.: 17
