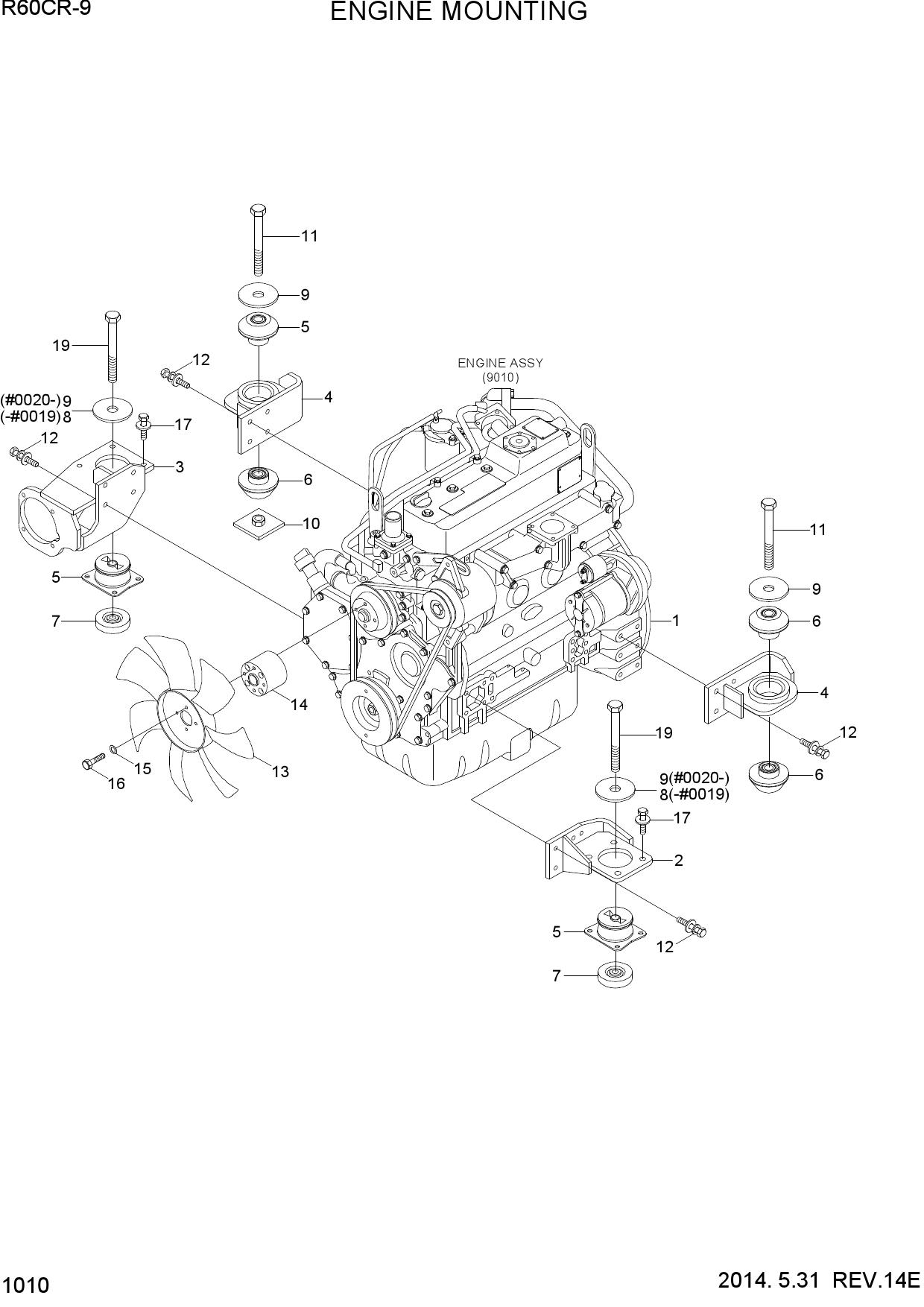

ENGINE MOUNTING
1 11M9-00015
- 11M9-00015 - ENGINE ASSY
- Поз.: 1
2 11M9-00014
- 11M9-00014 - ENGINE ASSY
- Поз.: 1
3 11M8-00020
- 11M8-00020 - BRACKET
- Поз.: 2
4 11M8-00150
- 11M8-00150 - BRACKET-COMP
- Поз.: 3
5 11ML-00010
- 11ML-00010 - BRACKET
- Поз.: 4
6 11M8-07550
- 11M8-07550 - RESILIENT
- Поз.: 5
7 11N6-08245
- 11N6-08245 - RUBBER-MOUNT
- Поз.: 6
8 11N1-10000-DA
- 11N1-10000-DA - WASHER-OVERLOAD
- Поз.: 7
9 11M8-00130-DA
- 11M8-00130-DA - WASHER-OVERLOAD
- Поз.: 8
10 11M9-01100
- 11M9-01100 - WASHER-OVERLOAD
- Поз.: 9
11 11M9-01100
- 11M9-01100 - WASHER-OVERLOAD
- Поз.: 9
12 11M9-01200
- 11M9-01200 - STOPPER-NUT
- Поз.: 10
13 S017-161306
- S017-161306 - BOLT-HEX
- Поз.: 11
14 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 12
15 11N1-00110
- 11N1-00110 - FAN-COOLING
- Поз.: 13
16 11N1-00111
- 11N1-00111 - FAN-COOLING
- Поз.: 13
17 11M9-00210
- 11M9-00210 - SPACER
- Поз.: 14
18 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 15
19 S015-080806
- S015-080806 - BOLT-HEX
- Поз.: 16
20 S035-082556
- S035-082556 - BOLT-W/WASHER
- Поз.: 17
21 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 17
22 S017-16115D
- S017-16115D - BOLT-HEX
- Поз.: 19
