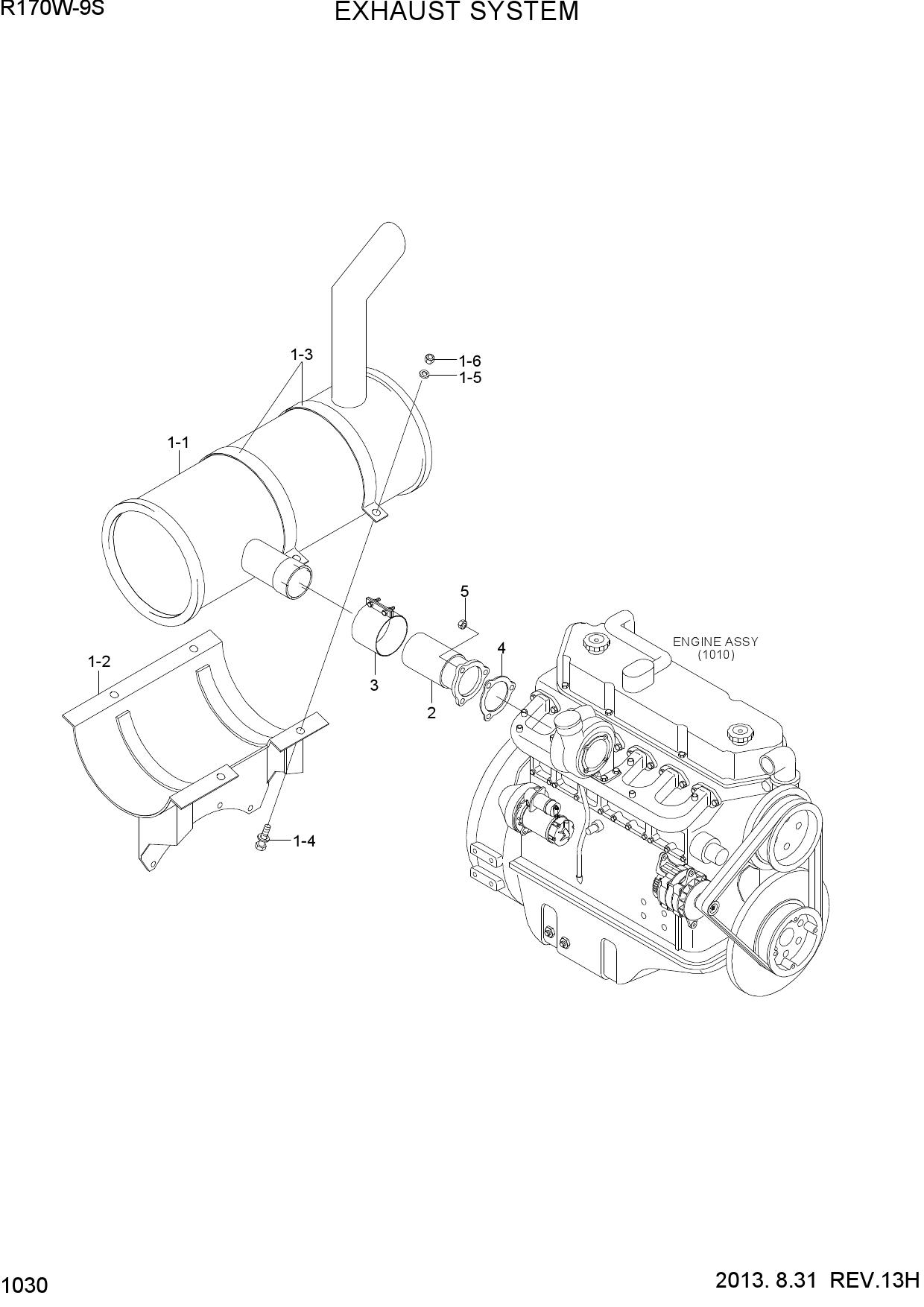

EXHAUST SYSTEM
1 11N5-32200
- 11N5-32200 - MUFFLER SUB ASSY
- Поз.: 1
2 11N5-30020
- 11N5-30020 - MUFFLER WA
- Поз.: 1-1
3 11N5-30030
- 11N5-30030 - BRACKET-MUFFLER
- Поз.: 1-2
4 11EM-30130
- 11EM-30130 - CLAMP-BAND
- Поз.: 1-3
5 S037-103056
- S037-103056 - BOLT-W/WASHER
- Поз.: 1-4
6 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 1-5
7 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 1-6
8 11N5-30050
- 11N5-30050 - CONNECTOR-PIPE
- Поз.: 2
9 11N6-30040
- 11N6-30040 - CLAMP-SEAL
- Поз.: 3
10 11LM-50090
- 11LM-50090 - CLAMP ASSY-SEAL
- Поз.: 3
11 11EE-31040
- 11EE-31040 - GASKET
- Поз.: 4
12 11EE-31041
- 11EE-31041 - GASKET
- Поз.: 4
13 S206-101006
- S206-101006 - NUT-HEX
- Поз.: 5
14 S206-101006
- S206-101006 - NUT-HEX
- Поз.: 5
