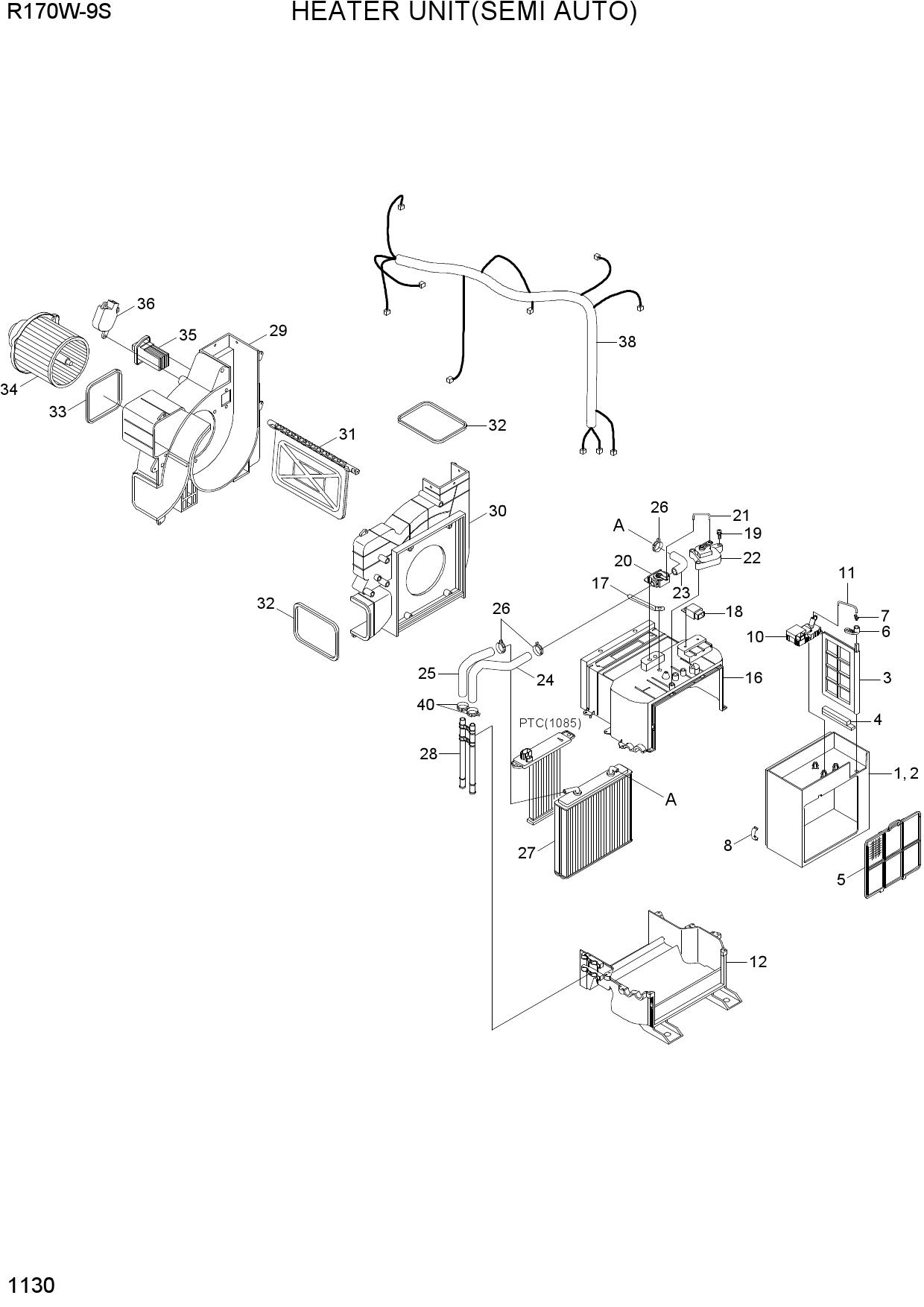

HEATER UNIT(SEMI AUTO)
1 AM70003600-3
- AM70003600-3 - SEAL-FILTER
- FRESH
- Поз.: 4
2 11N6-90770
- 11N6-90770 - AIR FILTER-REFRESH
- Поз.: 5
3 3AH0705
- 3AH0705 - ROD-CLAMP
- Поз.: 7
4 4AH0688
- 4AH0688 - CLIP-CASE
- Поз.: 8
5 11Q6-90570
- 11Q6-90570 - MOTOR ACT-INTAKE
- Поз.: 10
6 AM52300100-4
- AM52300100-4 - ROD-INTAKE
- Поз.: 11
7 AH002402
- AH002402 - HVAC CASE-LOW
- Поз.: 12
8 4AH0643
- 4AH0643 - HOLDER-WIRE
- Поз.: 17
9 11N6-90820
- 11N6-90820 - RELAY
- Поз.: 18
10 AH000865
- AH000865 - SCREW
- Поз.: 19
11 AH001160
- AH001160 - VLAVE-WATER
- Поз.: 20
12 AH000559
- AH000559 - ROD-TEMP
- Поз.: 21
13 AH100656
- AH100656 - MOTOR ACT ASSY-TEMP
- Поз.: 22
14 AH001287
- AH001287 - HOSE-INLET
- WATER
- Поз.: 23
15 AH002411
- AH002411 - HOSE-INLET
- WATER
- Поз.: 24
16 AH002412
- AH002412 - HOSE-OUTLET
- WATER
- Поз.: 25
17 AH001853
- AH001853 - CLAMP-WATER HOSE
- Поз.: 26
18 11Q6-90540
- 11Q6-90540 - HEATER SET-RAD
- Поз.: 27
19 AH002410
- AH002410 - PIPE-INLET/OUTLET
- Поз.: 28
20 AH002407
- AH002407 - DOOR ASSY-VENT
- Поз.: 31
21 AW80000303-3
- AW80000303-3 - SEAL-SPONGE A
- Поз.: 32
22 AW80000304-3
- AW80000304-3 - SEAL-SPONGE B
- Поз.: 33
23 11N6-90700
- 11N6-90700 - FAN & MOTOR
- Поз.: 34
24 11Q6-90530
- 11Q6-90530 - FET
- Поз.: 35
25 11Q6-90520
- 11Q6-90520 - MOTOR ACT ASSY-VENT DF
- Поз.: 36
26 11Q6-90610
- 11Q6-90610 - WIRING ASSY-SATC
- Поз.: 38
27 AH000314
- AH000314 - CLAMP-H/RAD PIPE
- Поз.: 40
