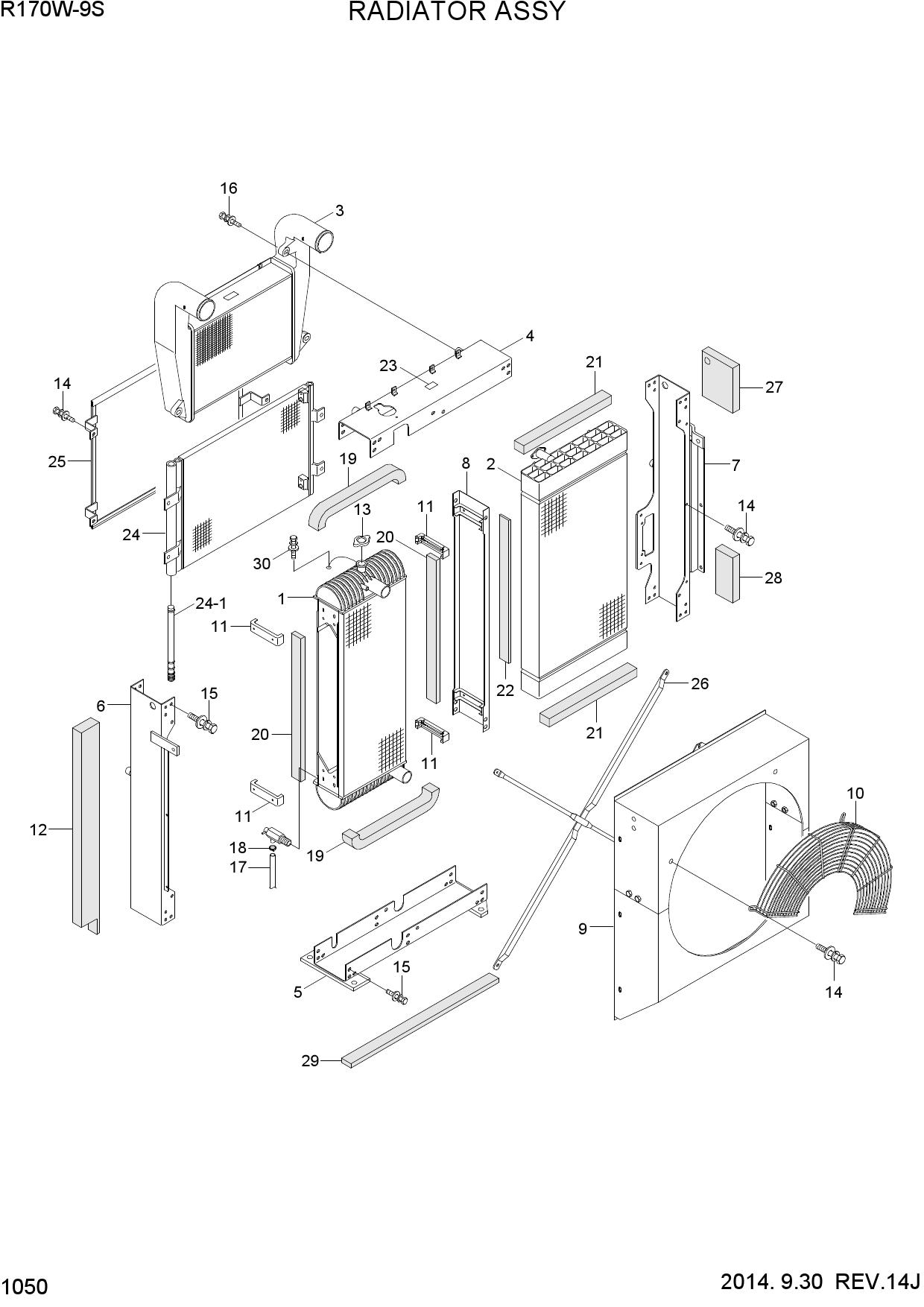

RADIATOR ASSY
1 11Q4-44021
- 11Q4-44021 - RADIATOR ASSY
- Поз.: 1
2 11Q4-42022
- 11Q4-42022 - OIL COOLER ASSY
- Поз.: 2
3 11Q4-42400
- 11Q4-42400 - CHARGE AIR COOLER
- Поз.: 3
4 11Q4-42401
- 11Q4-42401 - AIR COOLER-CHARGE
- Поз.: 3
5 11Q4-42310
- 11Q4-42310 - SUPPORT-UPPER
- Поз.: 4
6 11Q4-42320
- 11Q4-42320 - SUPPORT-LOWER
- Поз.: 5
7 11Q4-42330
- 11Q4-42330 - SUPPORT-LH
- SIDE
- Поз.: 6
8 11Q5-42120
- 11Q5-42120 - SUPPORT WA-RH
- Поз.: 7
9 11Q4-42350
- 11Q4-42350 - SUPPORT-LH
- MID
- Поз.: 8
10 11Q5-48010
- 11Q5-48010 - SHROUD
- Поз.: 9
11 11Q4-42051
- 11Q4-42051 - GUARD-FAN
- Поз.: 10
12 11Q4-42360
- 11Q4-42360 - ISOLATOR
- Поз.: 11
13 11Q4-42160
- 11Q4-42160 - SPONGE
- Поз.: 12
14 11N4-49480
- 11N4-49480 - CAP
- Поз.: 13
15 S037-082026
- S037-082026 - BOLT-W/WASHER
- Поз.: 14
16 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 15
17 S037-104026
- S037-104026 - BOLT-W/WASHER
- Поз.: 16
18 11Q5-42220
- 11Q5-42220 - HOSE-DRAIN
- Поз.: 17
19 11Q5-42230
- 11Q5-42230 - CLIP-HOSE
- Поз.: 18
20 11Q5-42240
- 11Q5-42240 - SEALING
- Поз.: 19
21 11Q5-42250
- 11Q5-42250 - SEALING
- Поз.: 20
22 11Q5-42260
- 11Q5-42260 - SEALING
- Поз.: 21
23 11Q5-42270
- 11Q5-42270 - SEALING
- Поз.: 22
24 11Q6-90071
- 11Q6-90071 - CONDENSER-R/DRYER
- Поз.: 24
25 A2W00701D
- A2W00701D - CARTRIDGE ASSY
- Поз.: 24-1
26 11Q4-42380
- 11Q4-42380 - NET-B
- Поз.: 25
27 11Q4-42390
- 11Q4-42390 - BAR-CROSS
- Поз.: 26
28 11Q5-42290
- 11Q5-42290 - SEALING-A
- Поз.: 27
29 11Q5-42300
- 11Q5-42300 - SEALING-C
- Поз.: 28
30 11Q5-42310
- 11Q5-42310 - SEALING-D
- Поз.: 29
31 11Q5-42320
- 11Q5-42320 - BOLT
- Поз.: 30
