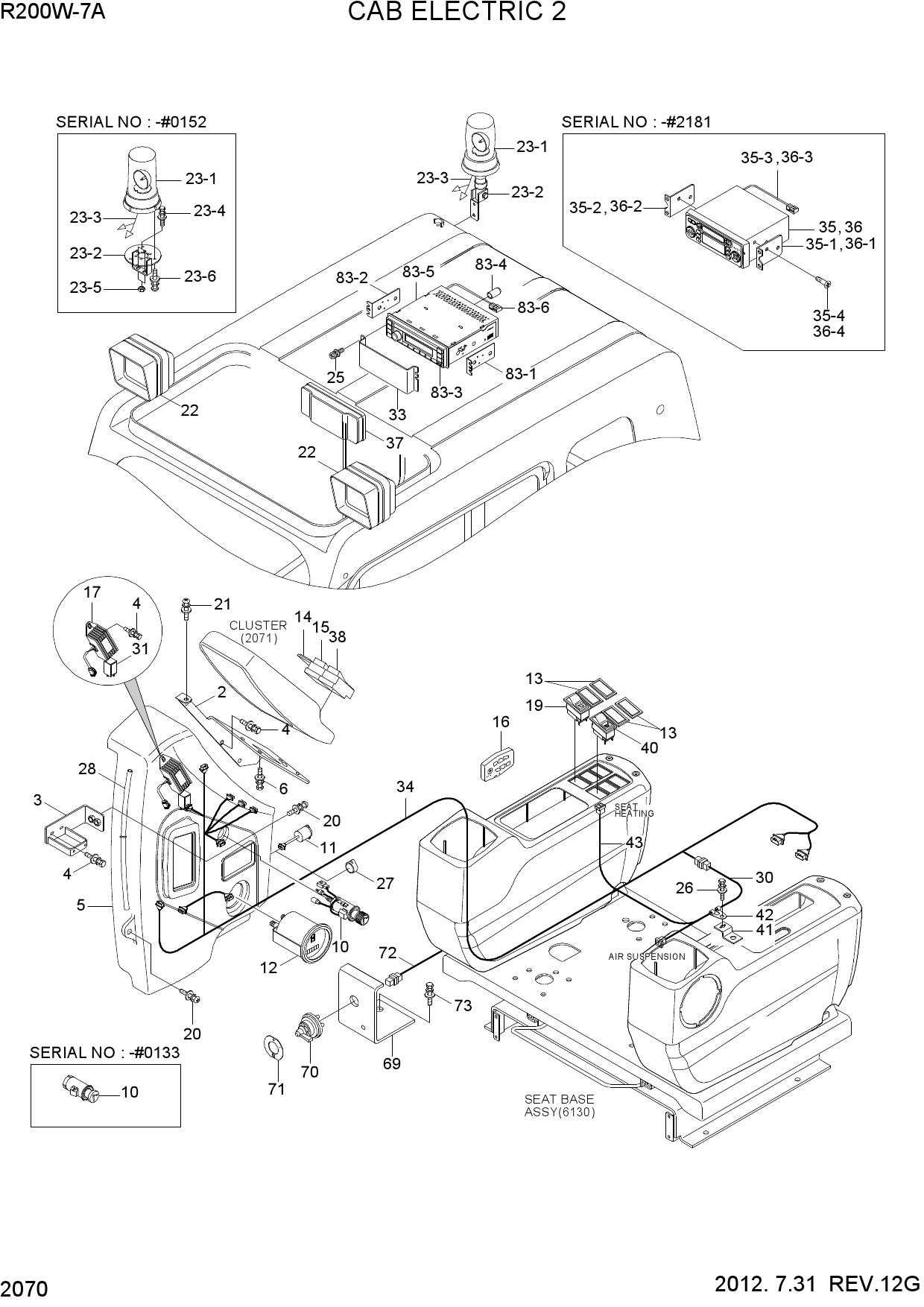

CAB ELECTRIC 2
1 21N8-21011
- 21N8-21011 - BRACKET WA
- Поз.: 2
2 21N6-01320
- 21N6-01320 - BRACKET WA
- Поз.: 2
3 21N8-21070
- 21N8-21070 - BRACKET WA
- Поз.: 3
4 21N6-01320
- 21N6-01320 - BRACKET WA
- Поз.: 3
5 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 4
6 21N8-21021
- 21N8-21021 - COVER-WIPER MOTOR
- Поз.: 5
7 21N6-01310
- 21N6-01310 - COVER-WIPER MOTOR
- Поз.: 5
8 21N6-01311
- 21N6-01311 - COVER-WIPER MOTOR
- Поз.: 5
9 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 6
10 21E4-0008
- 21E4-0008 - LIGHTER-CIGAR
- Поз.: 10
11 21LM-07110
- 21LM-07110 - LIGHTER-CIGAR
- Поз.: 10
12 21N8-20010
- 21N8-20010 - SOCKET-12V
- Поз.: 11
13 21N4-11070
- 21N4-11070 - HOUR METER ASSY
- Поз.: 12
14 21E6-10460
- 21E6-10460 - COVER
- Поз.: 13
15 21E6-40130
- 21E6-40130 - SWITCH-OVER LOAD
- Поз.: 14
16 21E9-20110
- 21E9-20110 - SWITCH-QUICK CLAMP
- Поз.: 15
17 21N8-40910
- 21N8-40910 - SWITCH-REMOTE CNTL
- Поз.: 16
18 21N8-20201
- 21N8-20201 - DC-DC CONVERTER ASSY
- Поз.: 17
19 21E6-30440
- 21E6-30440 - SWITCH-BEACON
- Поз.: 19
20 S132-061676
- S132-061676 - SCREW-W/WASHER
- Поз.: 20
21 S132-061546
- S132-061546 - SCREW-W/WASHER
- Поз.: 21
22 21N6-20211
- 21N6-20211 - WORK LAMP ASSY
- Поз.: 22
23 S866-240650
- S866-240650 - BULB
- Поз.: 22-1
24 21Q4-30380
- 21Q4-30380 - BEACON LAMP ASSY
- Поз.: 23
25 21Q4-30381
- 21Q4-30381 - BEACON LAMP ASSY
- Поз.: 23
26 21EK-10140
- 21EK-10140 - BEACON LAMP
- Поз.: 23-1
27 21Q4-20700
- 21Q4-20700 - BEACON LAMP
- Поз.: 23-1
28 21Q4-30700
- 21Q4-30700 - BEACON LAMP
- Поз.: 23-1
29 21EK-10330
- 21EK-10330 - BULB-H1
- 70W
- Поз.: 23-11
30 H1U 64155
- H1U 64155 - BULB-H1
- 70W
- Поз.: 23-11
31 21N8-00581
- 21N8-00581 - BRACKET-BEACON LAMP
- Поз.: 23-2
32 21N8-00581BG
- 21N8-00581BG - BRACKET-BEACON LAMP
- Поз.: 23-2
33 21Q4-20600
- 21Q4-20600 - BRACKET-TILT
- Поз.: 23-2
34 21Q4-31000
- 21Q4-31000 - BRACKET-TILT
- Поз.: 23-2
35 21EK-20240
- 21EK-20240 - HARNESS-BEACON LAMP
- Поз.: 23-3
36 21N4-02830
- 21N4-02830 - HARNESS-BEACON LAMP
- Поз.: 23-3
37 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 23-4
38 S205-101006
- S205-101006 - NUT-HEX
- Поз.: 23-5
39 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 23-6
40 S131-051046
- S131-051046 - SCREW-W/WASHER
- Поз.: 25
41 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 26
42 S661-260300
- S661-260300 - CAP-RUBBER
- Поз.: 27
43 S890-107508
- S890-107508 - TUBE-PVC
- Поз.: 28
44 21N8-40190
- 21N8-40190 - EXT.HARNESS-A/RIDE SEAT
- Поз.: 30
45 21ER-60702
- 21ER-60702 - FLASHER UNIT ASSY
- Поз.: 31
46 21ER-60703
- 21ER-60703 - FLASHER UNIT
- Поз.: 31
47 21N6-10450
- 21N6-10450 - PLATE-C/RADIO COVER
- Поз.: 33
48 21N4-10080
- 21N4-10080 - HARNESS-SIDE
- RH
- Поз.: 34
49 21N4-21110
- 21N4-21110 - HARNESS-SIDE
- RH
- Поз.: 34
50 21N6-10480
- 21N6-10480 - BRACKET-LH
- Поз.: 35-1
51 21N6-10490
- 21N6-10490 - BRACKET-RH
- Поз.: 35-2
52 21N8-01600
- 21N8-01600 - HARNESS-EXT WIRE
- Поз.: 35-3
53 S141-050102
- S141-050102 - SCREW-FLAT HD
- Поз.: 35-4
54 21N8-40500
- 21N8-40500 - CD PLAYER ASSY
- Поз.: 36
55 21N6-10480
- 21N6-10480 - BRACKET-LH
- Поз.: 36-1
56 21N6-10490
- 21N6-10490 - BRACKET-RH
- Поз.: 36-2
57 21N8-01600
- 21N8-01600 - HARNESS-EXT WIRE
- Поз.: 36-3
58 S141-050102
- S141-050102 - SCREW-FLAT HD
- Поз.: 36-4
59 21N8-40940
- 21N8-40940 - COVER-DUST
- Поз.: 37
60 21N6-30100
- 21N6-30100 - SW-WORK & TRAVEL
- Поз.: 38
61 21N4-43020
- 21N4-43020 - SWITCH-SEAT HEAT
- Поз.: 40
62 21N4-01190
- 21N4-01190 - PLATE-CLIP
- Поз.: 41
63 S593-000902
- S593-000902 - CLIP-HARNESS
- Поз.: 42
64 S593-000802
- S593-000802 - CLIP-HARNESS
- Поз.: 42
65 21N4-02820
- 21N4-02820 - HARNESS-SEAT HEATING
- Поз.: 43
66 21N4-47300
- 21N4-47300 - BRACKET-MASTER SW
- Поз.: 69
67 21L7-10501
- 21L7-10501 - SWITCH-MASTER
- Поз.: 70
68 21LM-10501
- 21LM-10501 - SWITCH-MASTER
- Поз.: 70
69 21LD-34180
- 21LD-34180 - DECAL-MASTER SWITCH
- Поз.: 71
70 21N5-40370
- 21N5-40370 - DECAL-MASTER SW
- Поз.: 71
71 21N8-40170
- 21N8-40170 - HARNESS-EXTENSION
- Поз.: 72
72 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 73
73 21N8-50100
- 21N8-50100 - RADIO/USB PLAYER ASSY
- Поз.: 83
74 21N8-54000
- 21N8-54000 - RADIO/USB PLAYER ASSY
- Поз.: 83
75 21LM-31010
- 21LM-31010 - BRACKET L
- Поз.: 83-1
76 21LM-31020
- 21LM-31020 - BRACKET R
- Поз.: 83-2
77 21LM-31030
- 21LM-31030 - CABLE-MP3
- Поз.: 83-3
78 21LM-31040
- 21LM-31040 - CAP
- Поз.: 83-4
79 21LM-31050
- 21LM-31050 - BODY-RADIO/USB
- Поз.: 83-5
80 21N8-50110
- 21N8-50110 - HARNESS-EXT
- WIRE
- Поз.: 83-6
