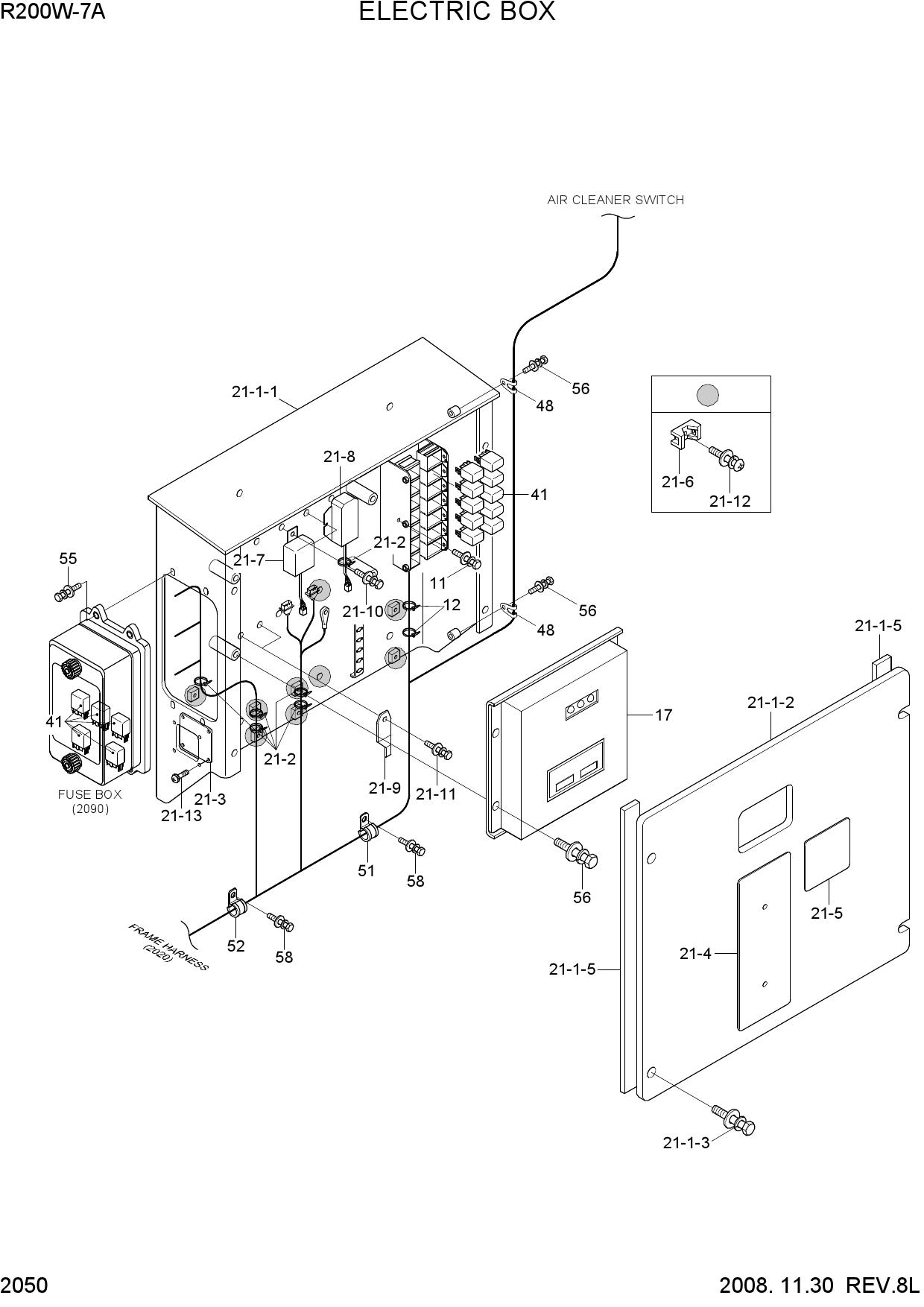

ELECTRIC BOX
1 S161-060166
- S161-060166 - SCREW-CROSS R/ROUND
- Поз.: 11
2 S552-102370
- S552-102370 - CLAMP-BAND
- Поз.: 12
3 21N6-34401
- 21N6-34401 - MCU
- Поз.: 17
4 21N6-30160
- 21N6-30160 - ELECTRIC BOX ASSY
- Поз.: 21
5 21N5-40390
- 21N5-40390 - ELECTRIC BOX ASSY
- Поз.: 21-1
6 21N5-40400
- 21N5-40400 - ELECTRIC BOX WA
- Поз.: 21-1-1
7 21N5-40310
- 21N5-40310 - PLATE-FRONT COVER
- Поз.: 21-1-2
8 S037-102016
- S037-102016 - BOLT-W/WASHER
- Поз.: 21-1-3
9 21N4-00740
- 21N4-00740 - PAD-RUBBER
- Поз.: 21-1-5
10 S552-050203
- S552-050203 - CLAMP-BAND
- Поз.: 21-2
11 21N6-21060
- 21N6-21060 - PLATE
- Поз.: 21-3
12 21N5-40360
- 21N5-40360 - DECAL-RELAY
- Поз.: 21-4
13 21N5-40320
- 21N5-40320 - DECAL-RELAY
- Поз.: 21-4
14 21N5-40330
- 21N5-40330 - DECAL-CAUTION
- Поз.: 21-5
15 21L7-00190
- 21L7-00190 - MOUNT-TIE
- Поз.: 21-6
16 21N4-00780
- 21N4-00780 - TIMER-STOP LAMP
- Поз.: 21-7
17 21E9-4018
- 21E9-4018 - PROLIX RESISTOR
- Поз.: 21-8
18 21Q4-20100
- 21Q4-20100 - RESISTOR ASSY
- Поз.: 21-8
19 21N5-40340
- 21N5-40340 - CLIP-METAL
- Поз.: 21-9
20 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 21-10
21 S037-101516
- S037-101516 - BOLT-W/WASHER
- Поз.: 21-11
22 S035-101512
- S035-101512 - BOLT-W/WASHER
- Поз.: 21-11
23 S131-051026
- S131-051026 - SCREW-W/WASHER
- Поз.: 21-12
24 S132-061256
- S132-061256 - SCREW-W/WASHER
- Поз.: 21-13
25 S131-061252
- S131-061252 - SCREW-W/WASHER
- Поз.: 21-13
26 24L1-05100
- 24L1-05100 - RELAY-5P
- Поз.: 41
27 S593-000902
- S593-000902 - CLIP-HARNESS
- Поз.: 48
28 S593-000802
- S593-000802 - CLIP-HARNESS
- Поз.: 48
29 S543-280002
- S543-280002 - CLAMP-TUBE
- Поз.: 51
30 S543-360002
- S543-360002 - CLAMP-TUBE
- Поз.: 52
31 S035-062026
- S035-062026 - BOLT-W/WASHER
- Поз.: 55
32 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 56
33 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 58
