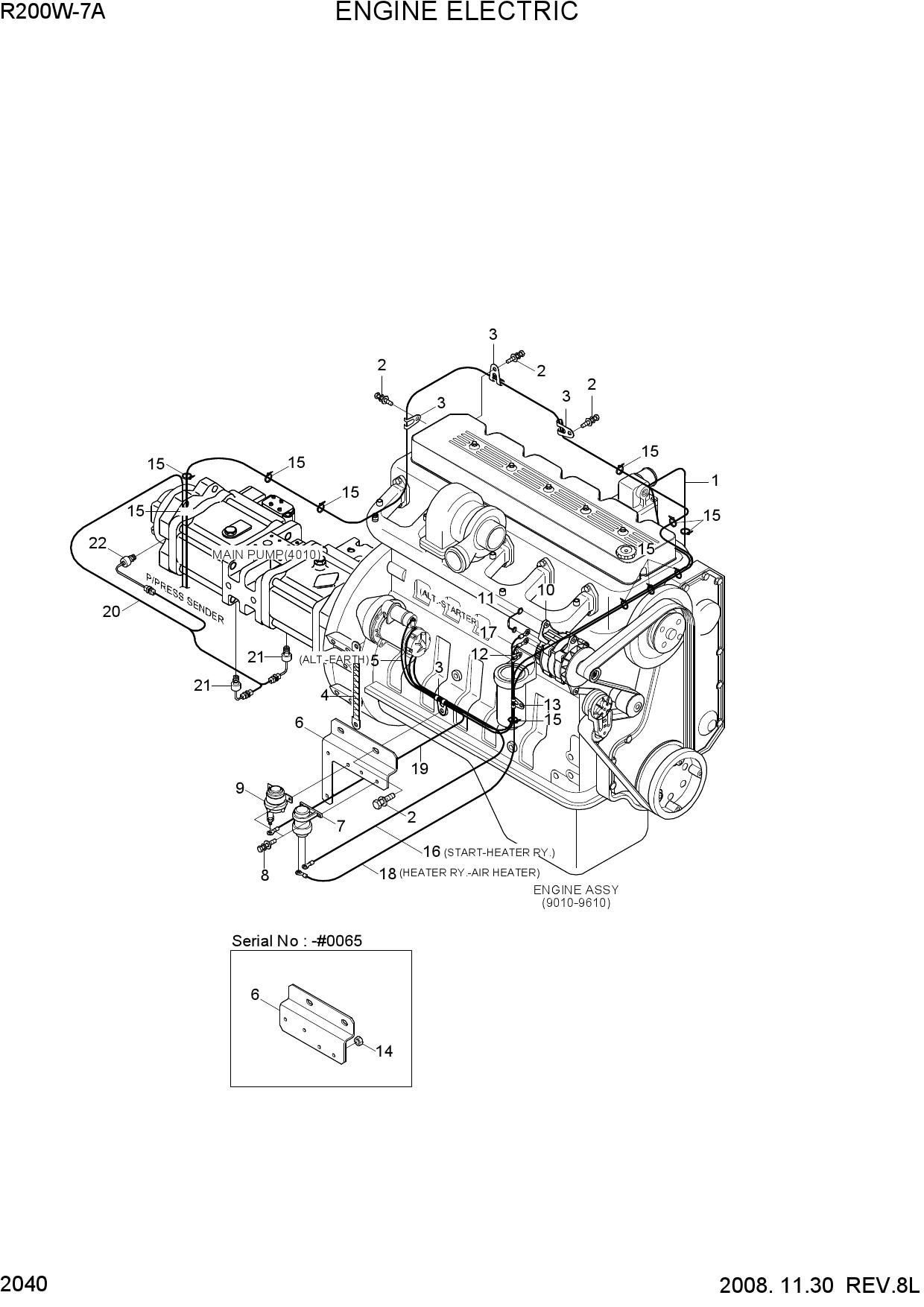

ENGINE ELECTRIC
1 21N8-42021
- 21N8-42021 - HARNESS-ENGINE
- Поз.: 1
2 21N8-42022
- 21N8-42022 - HARNESS-ENGINE
- Поз.: 1
3 S037-122056
- S037-122056 - BOLT-W/WASHER
- Поз.: 2
4 21E9-00170
- 21E9-00170 - CLIP-HARNESS
- Поз.: 3
5 21EH-30720
- 21EH-30720 - STRAP-EARTH
- Поз.: 4
6 21N8-40080
- 21N8-40080 - CABLE(ALT-EARTH)
- Поз.: 5
7 21N8-40180
- 21N8-40180 - BRACKET
- Поз.: 6
8 21Q6-40181
- 21Q6-40181 - BRACKET
- Поз.: 6
9 21N8-42050
- 21N8-42050 - RELAY-HEATER
- Поз.: 7
10 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 8
11 21N6-30120
- 21N6-30120 - RELAY-START
- Поз.: 9
12 21E6-40030
- 21E6-40030 - ALTERNATOR ASSY
- Поз.: 10
13 21Q6-41000
- 21Q6-41000 - ALTERNATOR ASSY
- Поз.: 10
14 21E1-21120
- 21E1-21120 - WIRE LINK-ALTERNATOR
- Поз.: 11
15 S593-000702
- S593-000702 - CLIP-HARNESS
- Поз.: 12
16 S593-000802
- S593-000802 - CLIP-HARNESS
- Поз.: 12
17 S593-000902
- S593-000902 - CLIP-HARNESS
- Поз.: 13
18 S593-000802
- S593-000802 - CLIP-HARNESS
- Поз.: 13
19 S285-061006
- S285-061006 - NUT-FLANGED
- Поз.: 14
20 S552-050203
- S552-050203 - CLAMP-BAND
- Поз.: 15
21 21LC-40061
- 21LC-40061 - CABLE(STARTER-HT RY)
- Поз.: 16
22 21N8-10200
- 21N8-10200 - CABLE(ALT-STARTER)
- Поз.: 17
23 21N8-10201
- 21N8-10201 - CABLE(ALT-STARTER)
- Поз.: 17
24 21LF-20141
- 21LF-20141 - CABLE(HEAT RY-AIR HEAT)
- Поз.: 18
25 21N8-40071
- 21N8-40071 - HARNESS-RELAY
- Поз.: 19
26 21N6-42090
- 21N6-42090 - HARNESS-PUMP PS
- Поз.: 20
27 21EG-32200
- 21EG-32200 - SENDER-PRESSURE
- Поз.: 21
28 21EG-32210
- 21EG-32210 - SENDER-PRESSURE
- Поз.: 22
