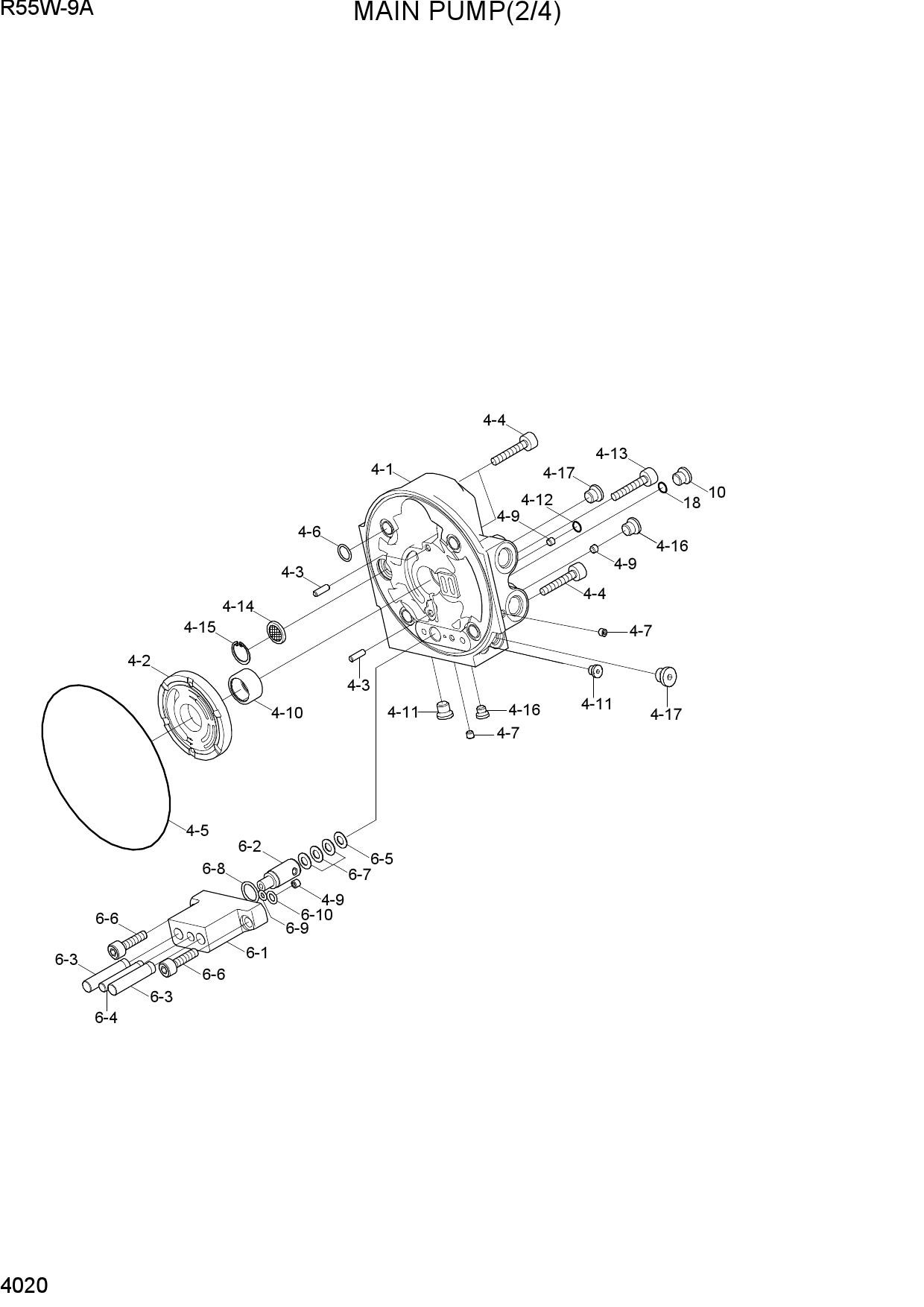

MAIN PUMP(2/4)
1 XJDD-00789
- XJDD-00789 - COVER ASSY
- Поз.: 4
2 XJDD-00817
- XJDD-00817 - COVER
- Поз.: 4-1
3 XJDD-00818
- XJDD-00818 - CONTROL PLATE
- Поз.: 4-2
4 XJDD-00819
- XJDD-00819 - PIN-PARALLEL
- Поз.: 4-3
5 XJDD-00820
- XJDD-00820 - SCREW-HEX SO HD CAP
- Поз.: 4-4
6 XJDD-00821
- XJDD-00821 - O RING
- Поз.: 4-5
7 XJDD-00103
- XJDD-00103 - O-RING
- Поз.: 4-6
8 XJDD-00017
- XJDD-00017 - PLUG
- Поз.: 4-7
9 XJDD-00822
- XJDD-00822 - ORIFICE
- Поз.: 4-9
10 XJDD-00823
- XJDD-00823 - BEARING
- Поз.: 4-10
11 XJDD-00021
- XJDD-00021 - PLUG ASSY
- Поз.: 4-11
12 XJDD-00824
- XJDD-00824 - O-RING
- Поз.: 4-12
13 XJDD-00726
- XJDD-00726 - SCREW-HEX S/HD CAP
- Поз.: 4-13
14 XJDD-00825
- XJDD-00825 - FILTER
- Поз.: 4-14
15 XJDD-00826
- XJDD-00826 - RETAINING RING(C TYPE)
- Поз.: 4-15
16 XJDD-00054
- XJDD-00054 - PLUG
- Поз.: 4-16
17 XJDD-00827
- XJDD-00827 - PLUG
- Поз.: 4-17
18 XJDD-00869
- XJDD-00869 - CONTROL PISTON ASSY
- Поз.: 6
19 XJDD-00870
- XJDD-00870 - CYLINDER
- Поз.: 6-1
20 XJDD-00871
- XJDD-00871 - PISTON
- Поз.: 6-2
21 XJDD-00838
- XJDD-00838 - PIN-PARALLEL
- Поз.: 6-3
22 XJDD-00872
- XJDD-00872 - PIN-PARALLEL
- Поз.: 6-4
23 XJDD-00840
- XJDD-00840 - SPRING SEAT
- Поз.: 6-5
24 XJDD-00841
- XJDD-00841 - SCREW-HEX SO HD CAP
- Поз.: 6-6
25 XJDD-00842
- XJDD-00842 - SPRING-CONED DISC
- Поз.: 6-7
26 XJDD-00873
- XJDD-00873 - O-RING
- Поз.: 6-8
27 XJDD-00874
- XJDD-00874 - O-RING
- Поз.: 6-9
28 XJDD-00875
- XJDD-00875 - O-RING
- Поз.: 6-10
29 XJDD-01008
- XJDD-01008 - PLUG
- Поз.: 10
30 XJDD-00103
- XJDD-00103 - O-RING
- Поз.: 18
