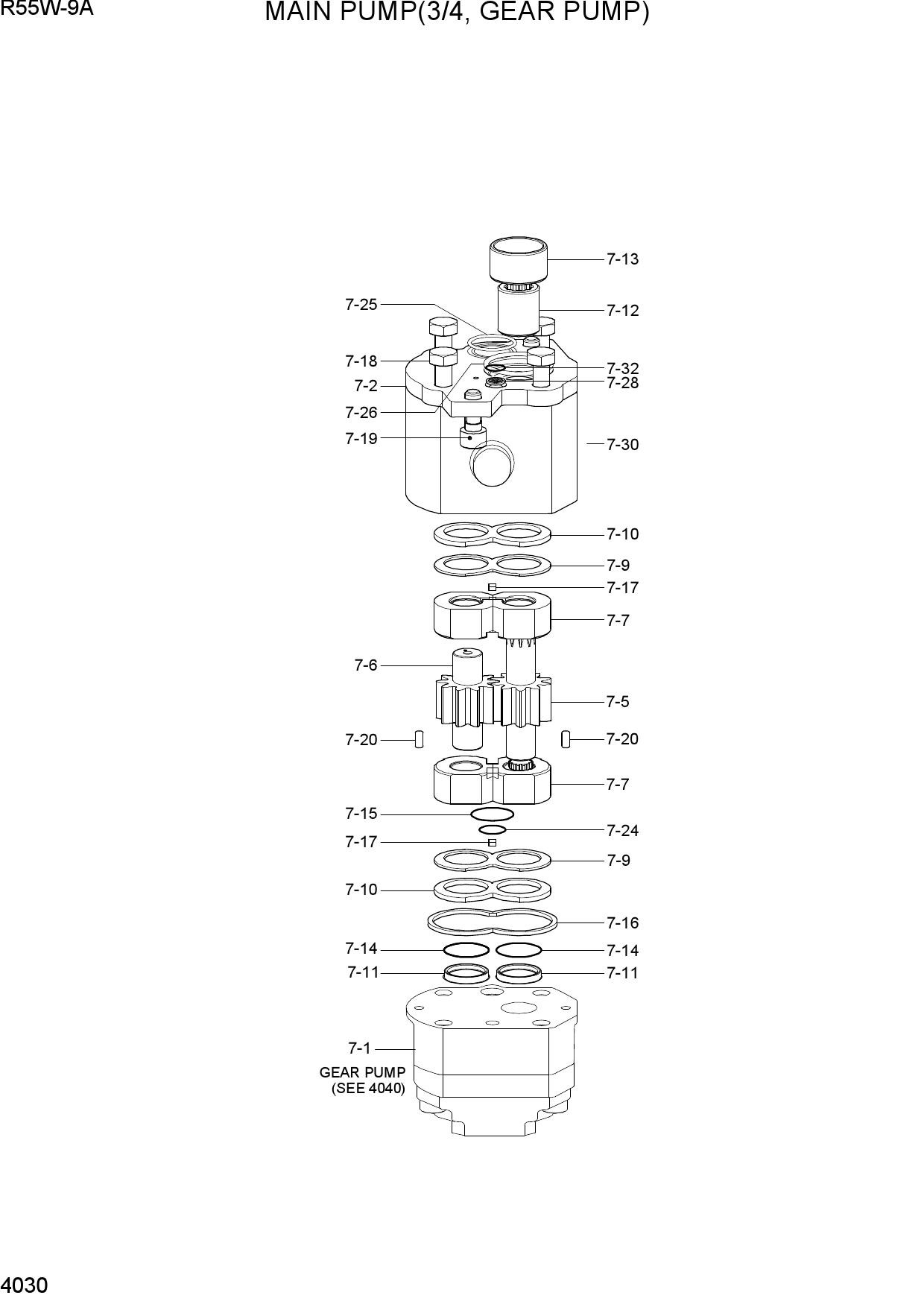

MAIN PUMP(3/4, GEAR PUMP)
1 XJDD-00876
- XJDD-00876 - GEAR PUMP
- Поз.: 7
2 XJDD-00848
- XJDD-00848 - HOUSING
- Поз.: 7-2
3 XJDD-00882
- XJDD-00882 - GEAR
- Поз.: 7-5
4 XJDD-00883
- XJDD-00883 - GEAR
- Поз.: 7-6
5 XJDD-00851
- XJDD-00851 - THRUST PLATE ASSY
- Поз.: 7-7
6 XJDD-00754
- XJDD-00754 - PLATE
- Поз.: 7-10
7 XJDD-00755
- XJDD-00755 - GUIDE
- Поз.: 7-11
8 XJDD-00852
- XJDD-00852 - COUPLING
- Поз.: 7-12
9 XJDD-00097
- XJDD-00097 - BUSH
- Поз.: 7-13
10 XJDD-00781
- XJDD-00781 - O-RING
- Поз.: 7-14
11 XJDD-00853
- XJDD-00853 - O-RING
- Поз.: 7-15
12 XJDD-00759
- XJDD-00759 - RING-SQUARE
- Поз.: 7-16
13 XJDD-00760
- XJDD-00760 - RING-SQUARE
- Поз.: 7-17
14 XJDD-00854
- XJDD-00854 - SCREW-HEX SO HD CAP
- Поз.: 7-18
15 XJDD-00098
- XJDD-00098 - BOLT
- Поз.: 7-19
16 XJDD-00084
- XJDD-00084 - PIN-PARALLEL
- Поз.: 7-20
17 XJDD-00855
- XJDD-00855 - O-RING
- Поз.: 7-24
18 XJDD-00856
- XJDD-00856 - O-RING
- Поз.: 7-25
19 XJDD-00096
- XJDD-00096 - O-RING
- Поз.: 7-26
20 XJDD-00857
- XJDD-00857 - FILTER
- Поз.: 7-28
21 XJDD-00858
- XJDD-00858 - NAME PLATE ASSY
- Поз.: 7-30
22 XJDD-00859
- XJDD-00859 - O-RING
- Поз.: 7-32
