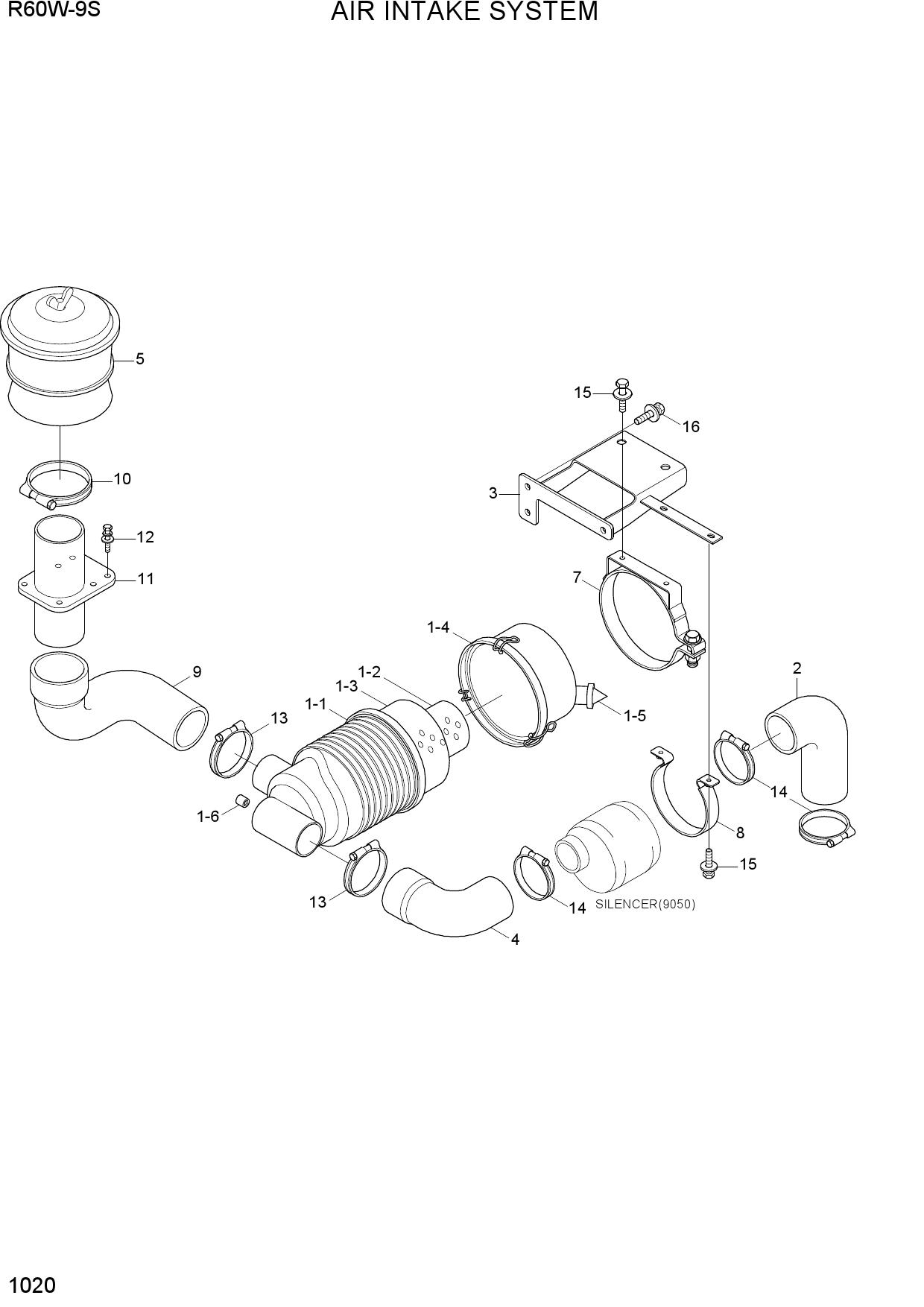

AIR INTAKE SYSTEM
1 11M8-20000
- 11M8-20000 - AIR CLEANER ASSY
- Поз.: 1
2 11M8-20100
- 11M8-20100 - BODY-AIR CLEANER
- Поз.: 1-1
3 11M8-20110
- 11M8-20110 - ELEMENT-INNER
- Поз.: 1-2
4 11M8-20120
- 11M8-20120 - ELEMENT-OUTER
- Поз.: 1-3
5 11M8-20130
- 11M8-20130 - COVER
- Поз.: 1-4
6 11M8-20140
- 11M8-20140 - VALVE-VACUATOR
- Поз.: 1-5
7 11M8-20150
- 11M8-20150 - CAP-NIPPLE
- Поз.: 1-6
8 11M9-20120
- 11M9-20120 - HOSE
- Поз.: 2
9 11M9-20102
- 11M9-20102 - BRACKET
- Поз.: 3
10 11M8-20020
- 11M8-20020 - HOSE
- Поз.: 4
11 11M6-56400
- 11M6-56400 - PRECLEANER
- Поз.: 5
12 11M8-20180
- 11M8-20180 - CLAMP-A/CLEANER
- Поз.: 7
13 11M8-20160
- 11M8-20160 - CLAMP-RESONATOR
- Поз.: 8
14 11M9-20110
- 11M9-20110 - HOSE
- Поз.: 9
15 S520-076000
- S520-076000 - CLAMP-HOSE
- Поз.: 10
16 11M9-20131
- 11M9-20131 - PIPE ASSY
- Поз.: 11
17 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 12
18 S520-065000
- S520-065000 - CLAMP-HOSE
- Поз.: 13
19 S520-058000
- S520-058000 - CLAMP-HOSE
- Поз.: 14
20 S035-082056
- S035-082056 - BOLT-W/WASHER
- Поз.: 15
21 S037-102556
- S037-102556 - BOLT-W/WASHER
- Поз.: 16
