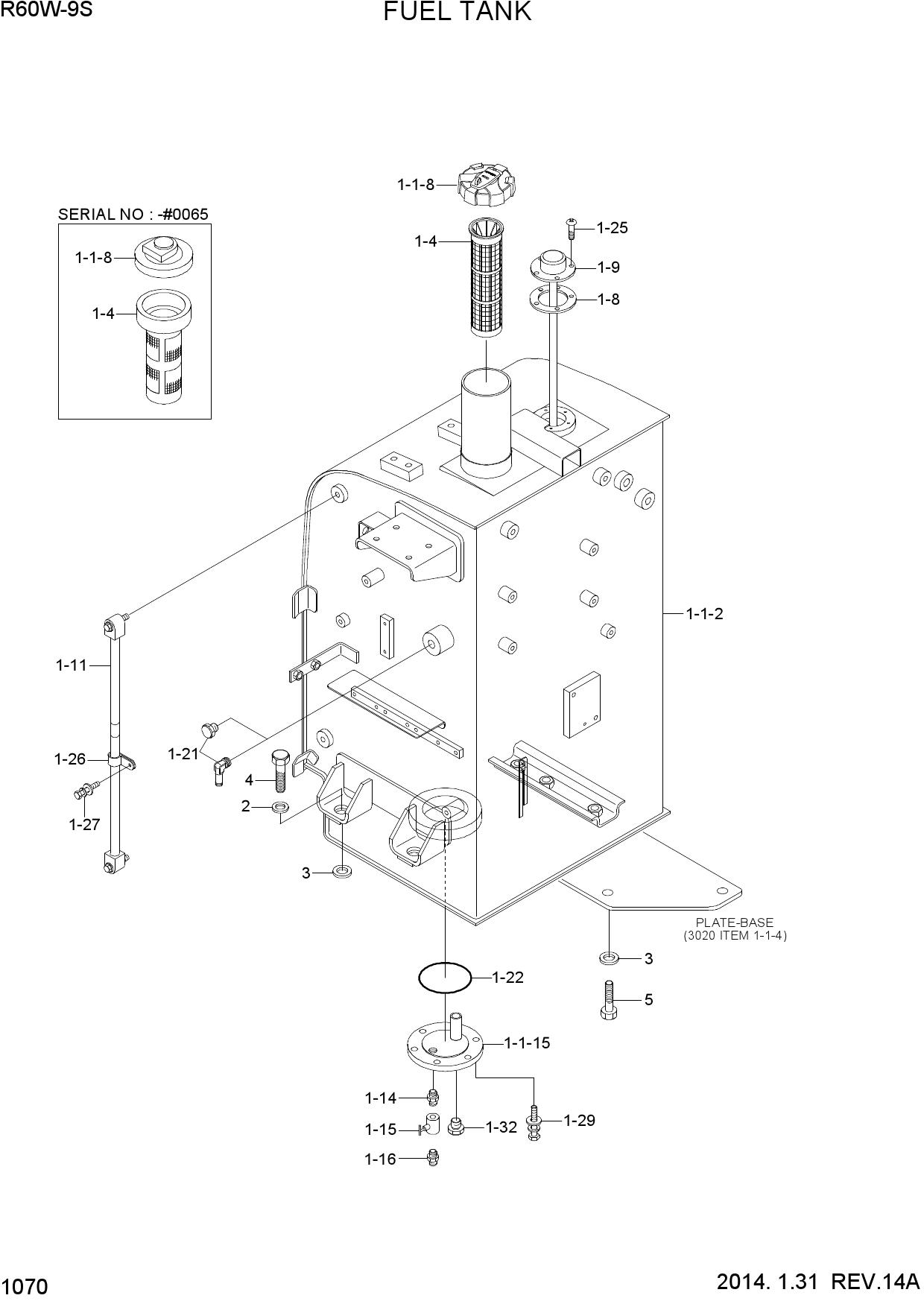

FUEL TANK
1 31M9-07013
- 31M9-07013 - FUEL TANK WA
- Поз.: 1-1-2
2 31M9-07014
- 31M9-07014 - FUEL TANK WA
- Поз.: 1-1-2
3 31M8-02162
- 31M8-02162 - COVER
- Поз.: 1-1-15
4 31Q4-02130
- 31Q4-02130 - FUEL CAP ASSY
- Поз.: 1-1-8
5 32M9-02130
- 32M9-02130 - FUEL CAP ASSY
- Поз.: 1-1-8
6 31QA-02080
- 31QA-02080 - STRAINER
- Поз.: 1-4
7 31M9-02080
- 31M9-02080 - STRAINER
- Поз.: 1-4
8 E128-1053
- E128-1053 - GASKET
- Поз.: 1-8
9 21M9-10701
- 21M9-10701 - SENDER-FUEL
- Поз.: 1-9
10 31N4-02060
- 31N4-02060 - GAUGE-LEVEL
- Поз.: 1-11
11 31E5-3049
- 31E5-3049 - FITTING
- Поз.: 1-14
12 E131-1006
- E131-1006 - VALVE-NEEDLE
- Поз.: 1-15
13 P090-100404
- P090-100404 - CONNECTOR-HOSE
- Поз.: 1-16
14 P220-430103
- P220-430103 - PLUG-HEX
- Поз.: 1-21
15 11M6-51190
- 11M6-51190 - ELBOW
- Поз.: 1-21
16 S632-080001
- S632-080001 - O-RING
- Поз.: 1-22
17 S161-040156
- S161-040156 - SCREW-RD HD
- Поз.: 1-25
18 S543-180002
- S543-180002 - CLAMP-TUBE
- Поз.: 1-26
19 S035-081516
- S035-081516 - BOLT-W/WASHER
- Поз.: 1-27
20 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 1-29
21 P220-110102
- P220-110102 - PLUG-HEX
- Поз.: 1-32
22 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 2
23 41M5-51920
- 41M5-51920 - SHIM(1.0T)
- Поз.: 3
24 S017-16040D
- S017-16040D - BOLT-HEX
- Поз.: 4
25 S017-16050D
- S017-16050D - BOLT-HEX
- Поз.: 5
