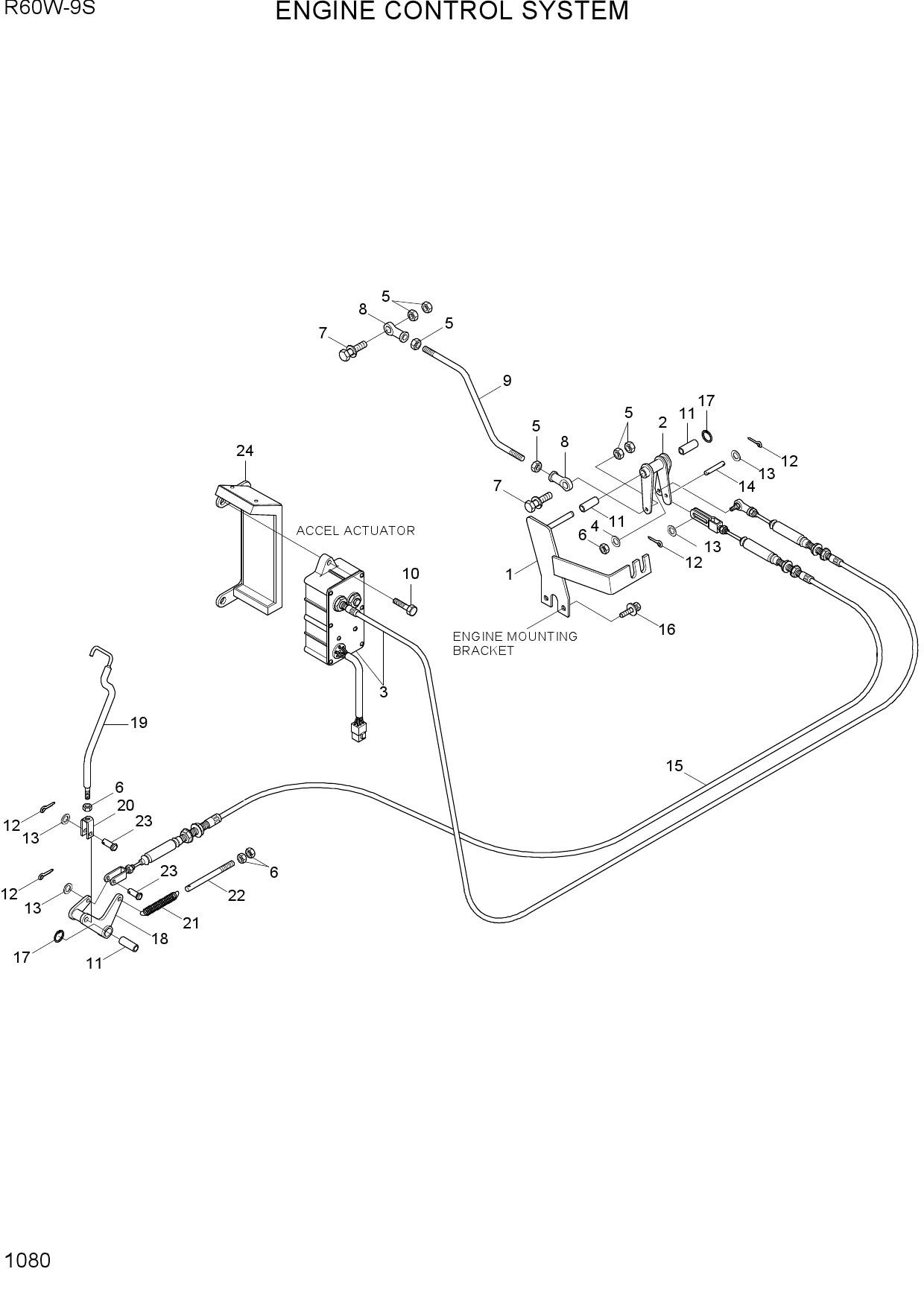

ENGINE CONTROL SYSTEM
1 11M9-60220
- 11M9-60220 - BRACKET
- Поз.: 1
2 11M9-60201
- 11M9-60201 - LEVER
- Поз.: 2
3 21M9-51200
- 21M9-51200 - ACCEL ACTUATOR
- Поз.: 3
4 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 4
5 S205-06100B
- S205-06100B - NUT-HEX
- Поз.: 5
6 S205-08100B
- S205-08100B - NUT-HEX
- Поз.: 6
7 S035-062526
- S035-062526 - BOLT-W/WASHER
- Поз.: 7
8 E111-4504
- E111-4504 - END-ROD
- Поз.: 8
9 11M8-60230
- 11M8-60230 - ROD-ENGINE
- Поз.: 9
10 S035-083556
- S035-083556 - BOLT-W/WASHER
- Поз.: 10
11 S731-012015
- S731-012015 - DU BUSH
- Поз.: 11
12 S461-200202
- S461-200202 - PIN-SPLIT
- Поз.: 12
13 S403-06200B
- S403-06200B - WASHER-PLAIN
- Поз.: 13
14 S491-060202
- S491-060202 - PIN-CLEVIS
- Поз.: 14
15 11M8-60222
- 11M8-60222 - CABLE-PEDAL
- Поз.: 15
16 S037-104056
- S037-104056 - BOLT-W/WASHER
- Поз.: 16
17 S601-012004
- S601-012004 - RING-RETAINING
- Поз.: 17
18 11M8-60291
- 11M8-60291 - BRACKET WA
- Поз.: 18
19 11M6-10031
- 11M6-10031 - ROD-PEDAL
- Поз.: 19
20 S902-080322
- S902-080322 - JOINT-YOKE
- Поз.: 20
21 14EA-61151
- 14EA-61151 - SPRING
- Поз.: 21
22 11M6-10081
- 11M6-10081 - ROD
- Поз.: 22
23 S491-060252
- S491-060252 - PIN-CLEVIS
- Поз.: 23
24 11M9-60260
- 11M9-60260 - COVER
- Поз.: 24
