(SK115SRDZ-1E) - SHORT RADIUS EXCAVATOR DOZER ASN YY04-06001 (1/99-12/05)
/

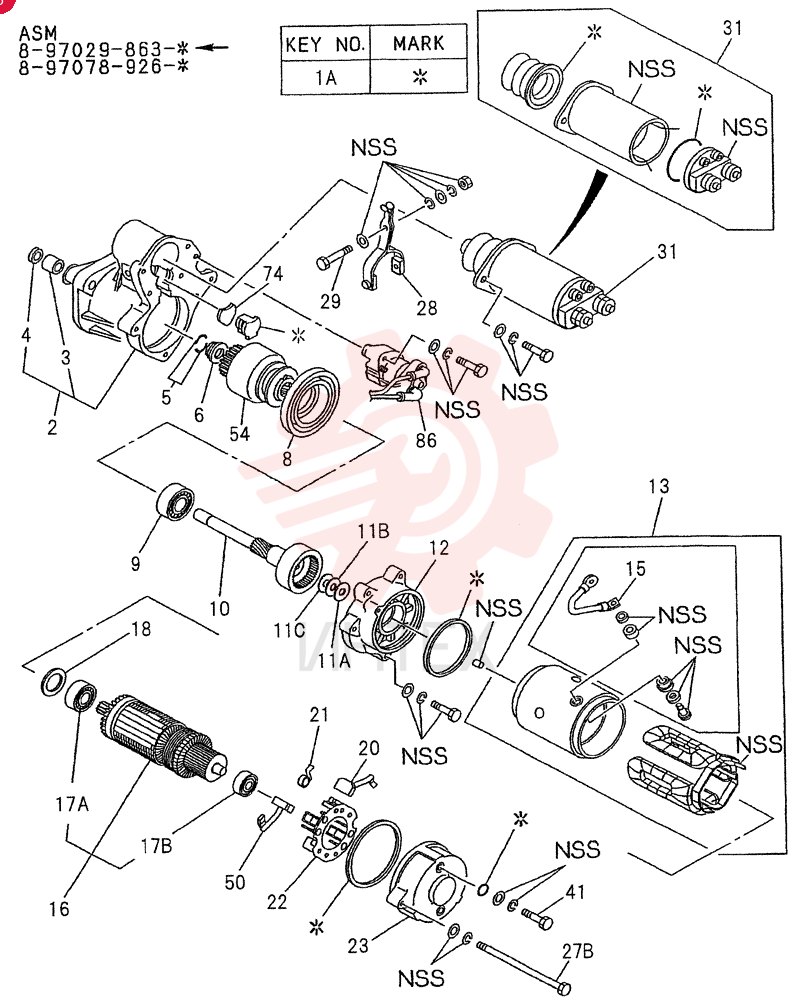

STARTER 0-65 (2)

STARTER 0-65 (2)

STARTER 0-65 (2)

1 0-65

  • 0-65 - STARTER

2 VI8970298637

  • VI8970298637 - STARTER MOTOR

3 VI8970443770

  • VI8970443770 - SEAL KIT
  • STARTER

4 VI8970443670

  • VI8970443670 - CASE
  • PINION
  • STARTER

5 VI8970436980

  • VI8970436980 - METAL
  • PINION CASE STARTER

6 VI8970443680

  • VI8970443680 - COVER
  • PINION CASE STARTER

7 VI8970443740

  • VI8970443740 - CLIP
  • PINION STOPPER STARTER

8 VI8970443730

  • VI8970443730 - STOPPER
  • PINION STARTER

9 VI5811130470

  • VI5811130470 - BRACKET
  • CENTER STARTER

10 VI8944188490

  • VI8944188490 - BEARING

11 VI8970443720

  • VI8970443720 - SHAFT
  • GEAR STARTER

12 VI5811291580

  • VI5811291580 - WASHER
  • GEAR SHAFT STARTER

13 VI5811291590

  • VI5811291590 - WASHER
  • GEAR SHAFT STARTER

14 VI5811291600

  • VI5811291600 - WASHER
  • GEAR SHAFT STARTER

15 VI8970443750

  • VI8970443750 - BRACKET
  • CENTER RR STARTER

16 VI8971355680

  • VI8971355680 - YOKE
  • STARTER

17 VI8970443660

  • VI8970443660 - WIRE
  • LEAD STARTER

18 VI8970443630

  • VI8970443630 - ARMATURE

19 VI5811291550

  • VI5811291550 - BEARING
  • ARMATURE
  • STARTER (FRT)

20 VI1811291960

  • VI1811291960 - BEARING
  • ARMATURE
  • STARTER (RR)

21 VI5811291560

  • VI5811291560 - SET OF THRUST WASHER

22 VI1811160570

  • VI1811160570 - BRUSH

23 VI5811170190

  • VI5811170190 - SPRING

24 VI8971637630

  • VI8971637630 - HOLDER
  • BRUSH STARTER

25 VI8970443760

  • VI8970443760 - COVER
  • RR COVER STARTER

26 VI8970202690

  • VI8970202690 - BOLT
  • THROUGH
  • STARTER

27 VI1811270310

  • VI1811270310 - LEVER
  • SHIFT
  • STARTER

28 VI1811291850

  • VI1811291850 - PIN
  • SHIFT LEVER STARTER

29 VI8970443700

  • VI8970443700 - SWITCH

30 VI1811296020

  • VI1811296020 - SCREW
  • RR COVER
  • STARTER

31 VI1811160580

  • VI1811160580 - BRUSH

32 VI8971698470

  • VI8971698470 - PIN

33 VI8970443690

  • VI8970443690 - GASKET
  • PINION CASE
  • STARTER

34 VI8972515360

  • VI8972515360 - RELAY
