(SK115SRDZ-1E) - SHORT RADIUS EXCAVATOR DOZER ASN YY04-06001 (1/99-12/05)
/

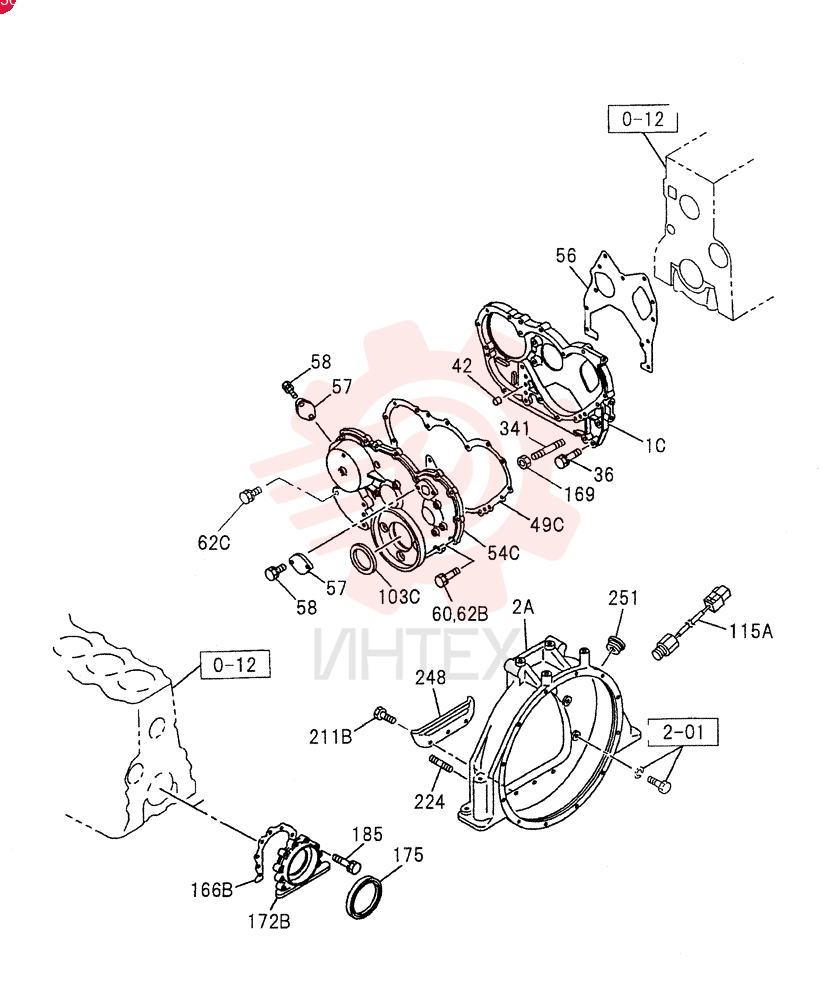

TIMING GEAR CASE AND FLYWHEEL HOUSING 0-20C (1)

TIMING GEAR CASE AND FLYWHEEL HOUSING 0-20C (1)

TIMING GEAR CASE AND FLYWHEEL HOUSING 0-20C (1)

1 0-20C

  • 0-20C - TIMING GEAR CASE AND FLYWHEEL HOUSING

2 VI8944509752

  • VI8944509752 - CASE

3 VI8971333292

  • VI8971333292 - MOTOR HOUSING

4 VI0280808220

  • VI0280808220 - BOLT
  • GEAR CASE (M8 X 22 FLANGE)

5 VI0280808450

  • VI0280808450 - BOLT

6 VI9112290581

  • VI9112290581 - DOWEL

7 VI8972333010

  • VI8972333010 - GASKET

8 VI8971298300

  • VI8971298300 - COVER

9 VI8943706710

  • VI8943706710 - GASKET

10 VI5113210090

  • VI5113210090 - COVER

11 VI0280806120

  • VI0280806120 - BOLT

12 VI0280808220

  • VI0280808220 - BOLT
  • COVER TO CASE (M8 X 22 FLANGE)

13 VI0280808800

  • VI0280808800 - BOLT

14 VI1090440711

  • VI1090440711 - BOLT

15 VI0280810500

  • VI0280810500 - BOLT
  • COVER (M10 X 50 FLANGE)

16 VI1096254380

  • VI1096254380 - OIL SEAL

17 VI1815105130

  • VI1815105130 - SENSOR

18 VI8943706640

  • VI8943706640 - GASKET

19 VI0911502080

  • VI0911502080 - NUT

20 VI8970795200

  • VI8970795200 - RETAINER

21 VI8970728231

  • VI8970728231 - SEAL

22 VI0286808250

  • VI0286808250 - BOLT

23 VI0280806100

  • VI0280806100 - BOLT
  • HSG (M6 X 10 FLANGE)

24 VI9944112350

  • VI9944112350 - STUD

25 VI8970428010

  • VI8970428010 - COVER

26 VI9113491341

  • VI9113491341 - COVER

27 VI9041108550

  • VI9041108550 - STUD
  • COVER GEAR CASE (M8 X 55 L=67)
