(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91)
/

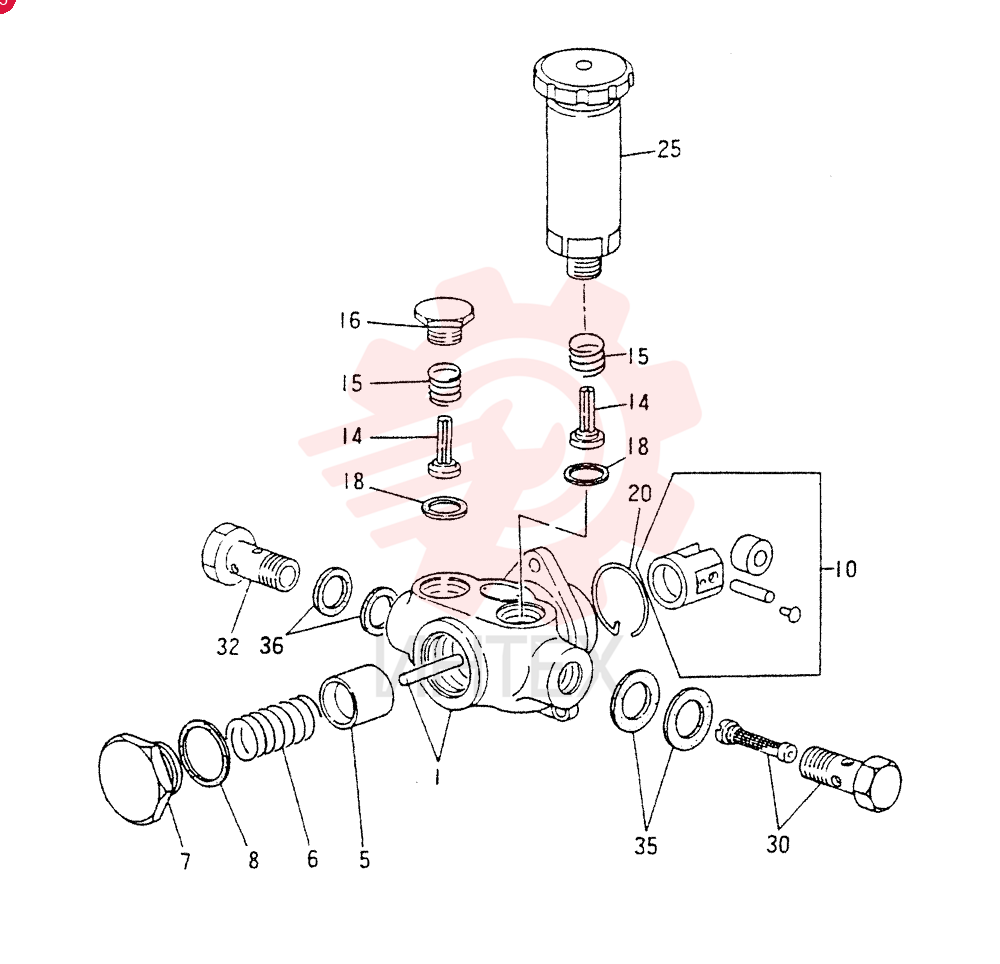

PUMP VAME717104

PUMP VAME717104

PUMP VAME717104

1 VAME717104

  • VAME717104 - PUMP
  • FUEL FEED PUMP ASSY(FOR M5 ONLY)

2 VAME730303

  • VAME730303 - FEED PUMP
  • FUEL FEED PUMP ASSY(FOR M6 ONLY)

3 VAME716556

  • VAME716556 - HOUSING
  • FEED PUMP

4 VAME705020

  • VAME705020 - PISTON
  • PISTON

5 VAME705021

  • VAME705021 - SPRING
  • SPRING
  • PISTON

6 VAME705022

  • VAME705022 - PLUG
  • PLUG(FOR M5 ONLY)

7 VAME722841

  • VAME722841 - FUEL INJECTION PUMP
  • PLUG(FOR M6 ONLY)

8 VAME705275

  • VAME705275 - GASKET
  • GASKET

9 VAME705099

  • VAME705099 - TAPPET
  • TAPPET

10 VAME726483

  • VAME726483 - CHECK VALVE
  • VALVE

11 VAME705027

  • VAME705027 - VALVE
  • VALVE

12 VAME705028

  • VAME705028 - SPRING
  • SPRING
  • CHECK/V

13 VAME705029

  • VAME705029 - PLUG
  • PLUG

14 VAME705276

  • VAME705276 - PACKING
  • GASKET

15 VAME705030

  • VAME705030 - RING
  • RING
  • SNAP

16 VAME717630

  • VAME717630 - LUBE PUMP
  • PUMP
  • PRIMING

17 VAME717659

  • VAME717659 - BOLT
  • BOLT
  • EYE

18 VAME717882

  • VAME717882 - BOLT
  • BOLT
  • EYE(FOR M5 ONLY)

19 VAME730963

  • VAME730963 - EYEBOLT
  • BOLT
  • EYE (FOR M6 ONLY)

20 VA3126106400

  • VA3126106400 - GASKET

21 VA3126106400

  • VA3126106400 - GASKET
