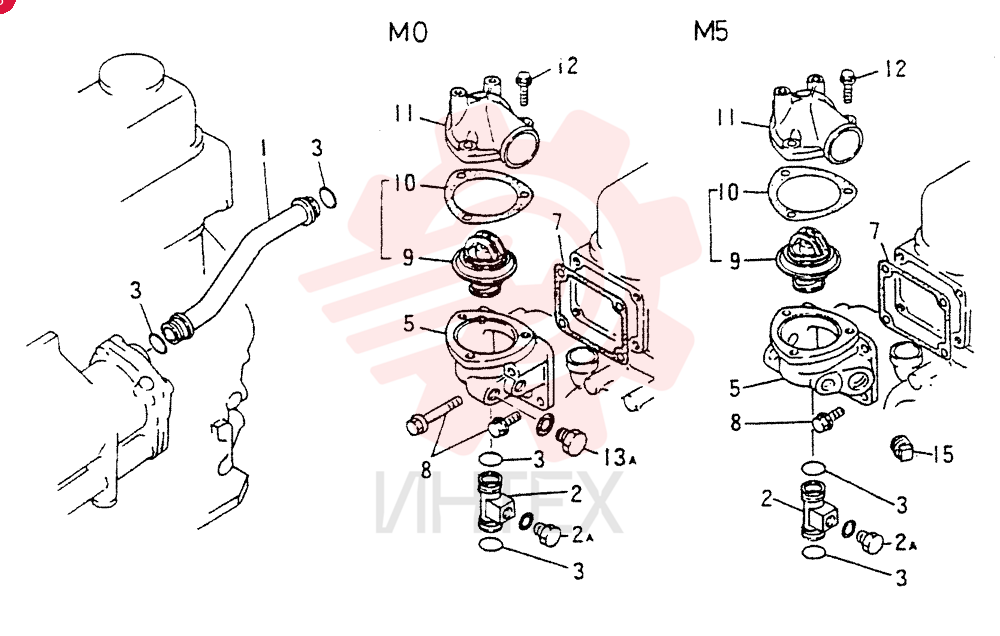

(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91)
/
RIGID TUBE VAME085512

RIGID TUBE VAME085512

RIGID TUBE VAME085512

1 VAME085512

  • VAME085512 - RIGID TUBE
  • PIPE
  • WATER
  • Start Year: 01-MAR-87

2 VAME085505

  • VAME085505 - PIPE
  • WATER
  • Years: -01-FEB-87

3 VAME080071

  • VAME080071 - PIPE
  • PIPE
  • BY-PASS
  • Start Year: 01-JAN-86

4 VAME019962

  • VAME019962 - PIPE
  • BY-PASS
  • Years: -01-DEC-85

5 VAM0001300

  • VAM0001300 - PLUG
  • PLUG

6 VAMF660066

  • VAMF660066 - GASKET
  • GASKET 16

7 VAMH035680

  • VAMH035680 - O-RING
  • 0-RING 22 1
  • Start Year: 01-NOV-90

8 VAMF520016

  • VAMF520016 - O-RING
  • 0-RING 22 1
  • Years: -01-OCT-90

9 VAME080107

  • VAME080107 - CASE
  • CASE
  • THERMOSTAT FOR M0 ONLY

10 VAME018011

  • VAME018011 - CASE
  • THERMOSTAT FOR M0 ONLY

11 VAME080296

  • VAME080296 - CASE
  • CASE
  • THERMOSTAT FOR M5 ONLY

12 VAME013755

  • VAME013755 - GASKET
  • GASKET
  • THERMOSTAT CASE
  • Start Year: 01-FEB-90

13 VAME015420

  • VAME015420 - GASKET
  • GASKET
  • THERMOSTAT CASE
  • Years: -01-JAN-90

14 VAMH000714

  • VAMH000714 - BOLT
  • BOLT
  • FLANGE 10X25 FOR M5 ONLY

15 VAMH000714

  • VAMH000714 - BOLT
  • BOLT
  • FLANGE 10X25 FOR M0 ONLY

16 VAMH000712

  • VAMH000712 - SCREW
  • BOLT
  • FLANGE 10X65 FOR M0 ONLY

17 VAMH000714

  • VAMH000714 - BOLT
  • BOLT
  • FLANGE 10X25

18 VAME997211

  • VAME997211 - SENSOR
  • THERMOSTAT KIT 76 5 FOR SERVICE ONLY
  • Start Year: 01-FEB-90

19 VAME999516

  • VAME999516 - SENSOR
  • THERMOSTAT KIT 76.5°C
  • FOR SERVICE ONLY
  • Years: -01-JAN-90

20 NSS

  • NSS - NOT SOLD SEPARAT
  • THERMOSTAT 76 5C FOR M0 ONLY (ME015380)

21 VAME013754

  • VAME013754 - GASKET
  • GASKET
  • Start Year: 01-FEB-90

22 VAME015421

  • VAME015421 - GASKET
  • GASKET
  • Years: -01-JAN-90

23 VAME015429

  • VAME015429 - COVER
  • COVER
  • THERMOSTAT

24 VAMF140229

  • VAMF140229 - BOLT
  • BOLT
  • FLANGE 8X30

25 VAM0001300

  • VAM0001300 - PLUG
  • PLUG FOR M0 ONLY

26 VAMF660066

  • VAMF660066 - GASKET
  • GASKET 16 FOR M0 ONLY

27 VAMS666224

  • VAMS666224 - PLUG
  • PLUG
  • TAPER PT3/4 FOR M5 ONLY
