(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91)
/

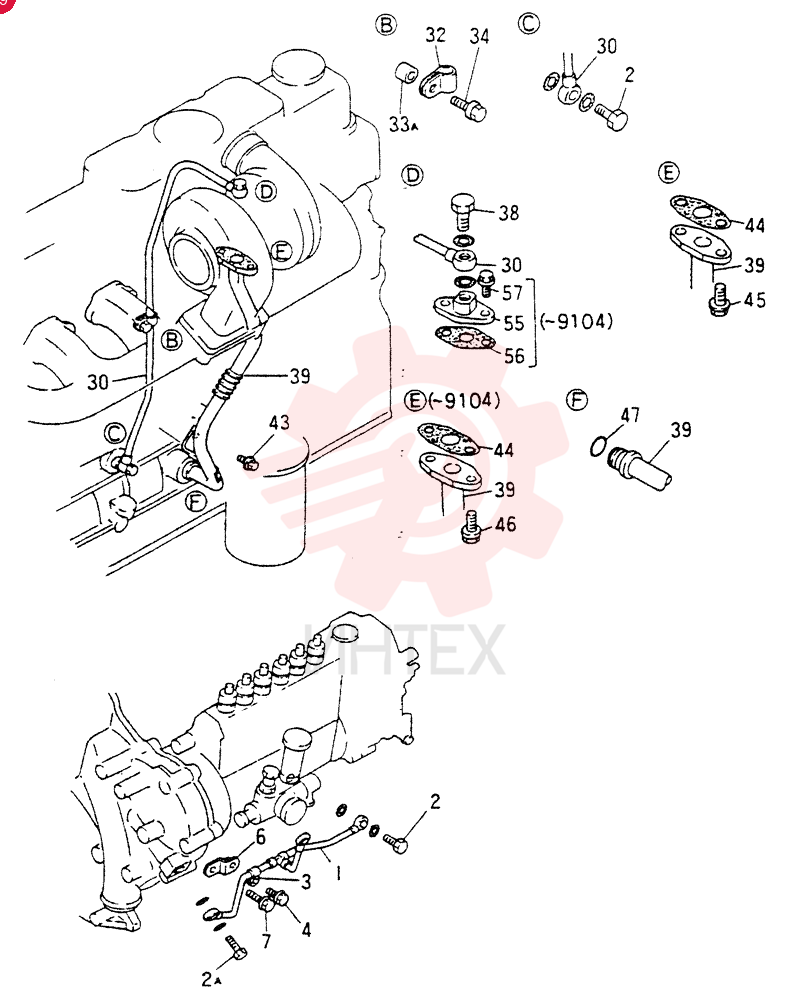

TUBE VAME084620

TUBE VAME084620

TUBE VAME084620

1 VAME084620

  • VAME084620 - TUBE
  • PIPE
  • OIL

2 VAMH000119

  • VAMH000119 - BOLT
  • BOLT
  • JOINT 10X25

3 VAMF660063

  • VAMF660063 - GASKET
  • GASKET 10

4 VAMH037717

  • VAMH037717 - BOLT
  • BOLT
  • EYE 10X20

5 VAMF660063

  • VAMF660063 - GASKET
  • GASKET 10

6 VAMH020801

  • VAMH020801 - CLIP
  • CLAMP

7 VAMH000999

  • VAMH000999 - BOLT
  • BOLT
  • FLANGE 6X12

8 VAMH023891

  • VAMH023891 - STAY
  • BRACKET

9 VAMF140223

  • VAMF140223 - BOLT
  • BOLT
  • FLANGE 8X16

10 VAME088700

  • VAME088700 - PIPE
  • PIPE
  • OIL TURBO INLET
  • Start Year: 01-MAY-91

11 VAME088547

  • VAME088547 - PIPE
  • PIPE
  • OIL TURBO INLET
  • Years: -01-APR-91

12 VA3003638302

  • VA3003638302 -
  • CLAMP CLAMP

13 VAME920041

  • VAME920041 - SPACER
  • SPACER L=17

14 VAMF140229

  • VAMF140229 - BOLT
  • BOLT
  • FLANGE 8X30

15 VAMF650102

  • VAMF650102 - SCREW
  • BOLT
  • EYE 10X20

16 VAMF660063

  • VAMF660063 - GASKET
  • GASKET 10

17 VAME088702

  • VAME088702 - RIGID TUBE
  • PIPE
  • OIL TURBO OUTLET
  • Start Year: 01-MAY-91

18 VAME088576

  • VAME088576 - TUBE
  • PIPE
  • OIL TURBO OUTLET
  • Years: -01-APR-91

19 VAMF140223

  • VAMF140223 - BOLT
  • BOLT
  • FLANGE 8X16
  • Start Year: 01-JUL-91

20 VAMF140021

  • VAMF140021 - SCREW
  • BOLT
  • FLANGE 8X12
  • Years: -01-JUN-91

21 VAME070510

  • VAME070510 - GASKET
  • GASKET
  • Start Year: 01-MAY-91

22 VAME088499

  • VAME088499 - GASKET
  • GASKET
  • Years: -01-APR-91

23 VAMH000931

  • VAMH000931 - BOLT
  • BOLT
  • FLANGE 10X18
  • Start Year: 01-MAY-91

24 VAMF140223

  • VAMF140223 - BOLT
  • BOLT
  • FLANGE 8X16
  • Years: -01-APR-91

25 VAMH035015

  • VAMH035015 - O-RING
  • O-RING 17

26 VAME070497

  • VAME070497 - HYD CONNECTOR
  • CONNECTOR
  • Years: -01-APR-91

27 VAME070509

  • VAME070509 - GASKET
  • GASKET
  • Years: -01-APR-91

28 VAMF140225

  • VAMF140225 - BOLT
  • BOLT
  • FLANGE 8X20
  • Years: -01-APR-91
