(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91)
/

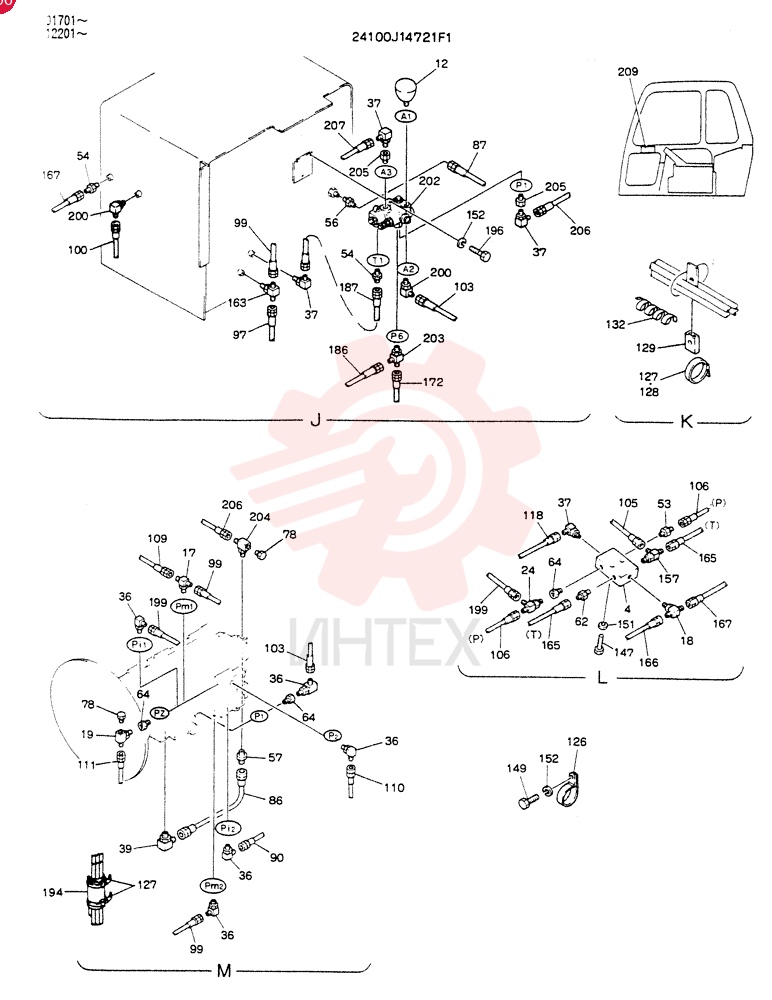

REMOTE-CDNTROL ASSY 24100J14721F1 (1)

REMOTE-CDNTROL ASSY 24100J14721F1 (1)

REMOTE-CDNTROL ASSY 24100J14721F1 (1)

1 24100J14721F1

  • 24100J14721F1 - REMOTE-CDNTROL ASSY

2 2436U1453F2

  • 2436U1453F2 - SOLENOID VALVE
  • SEE(C P M)

3 2436U1453F1

  • 2436U1453F1 - SOLENOID VALVE
  • SEE(C P M)

4 2436U1444F1

  • 2436U1444F1 - VALVE
  • SEE(C P M)

5 2410T323

  • 2410T323 - BLOCK

6 2436U1171D21

  • 2436U1171D21 - CHECK VALVE

7 2436U1171D31

  • 2436U1171D31 - CHECK VALVE

8 2436U1282D2108

  • 2436U1282D2108 - VALVE PRESSURE RELIE

9 ZS18C10030

  • ZS18C10030 - SCREW
  • Hex
  • M10 x 30mm
  • M10x1.50x30mm

10 ZW26X10000

  • ZW26X10000 - LOCK WASHER
  • ID 10 x OD 18 x Th 2.5mm

11 2445R373F1

  • 2445R373F1 - ACCUMULATOR

12 2444Z2522F1

  • 2444Z2522F1 - TEE
  • ASSY

13 ZH52X04000

  • ZH52X04000 - TEE
  • 30 Degree Fl
  • Male
  • PF 1/4" x 1/4" x 1/4"
  • O-Ring
  • 1/4" PF (Incls. O-Ring 237-6004)

14 ZH52X06000

  • ZH52X06000 - TEE
  • 30 Degree Fl
  • Male
  • PF 3/8" x 3/8" x 3/8"
  • O-Ring
  • 3/8"PFx54mm Long (Incls. O-Ring ZD12P01400)

15 2444T2529

  • 2444T2529 - TEE
  • 1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)

16 2444T2666

  • 2444T2666 - TEE

17 2444T3298

  • 2444T3298 - TEE
  • 3/8" PF - 1/4" PF (Incls. O-Ring ZD12P01100)

18 2444T3402

  • 2444T3402 - TEE
  • Tee -- (Incls. O-Ring 237-6004)

19 2444Z2336

  • 2444Z2336 - TEE
  • Tee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100)

20 2444Z2544

  • 2444Z2544 - TEE
  • 1/4"PTx60mm Long (No O-Ring supplied)

21 2444Z2526

  • 2444Z2526 - TEE

22 2444Z2892

  • 2444Z2892 - TEE
  • (Incls. O-Ring ZD12P01400)

23 2444Z3465

  • 2444Z3465 - TEE
  • (Incls. O-Ring ZD12P01100)

24 2444Z4081

  • 2444Z4081 - ELBOW

25 2479U1378

  • 2479U1378 - PRESSURE SWITCH

26 2444Z2447F1

  • 2444Z2447F1 - ELBOW UNION
  • Union Elbow

27 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 90° -- PF 1/4
  • (Incls. O-Ring 237-6004)

28 ZH32X06000

  • ZH32X06000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • Elbow
  • 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006

29 ZH32X08000

  • ZH32X08000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/2" x PF 1/2"
  • O-Ring
  • Elbow
  • 90° -- 1/2"PT (Incls. O-Ring ZD12P01800)

30 ZH32X12000

  • ZH32X12000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/4" x PF 3/4"
  • O-Ring
  • Elbow
  • 90° -- 3/4 PF (Incls. O-Ring 237-6012)

31 ZH42X04000

  • ZH42X04000 - 45 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 45° -- (Incls. O-Ring 237-6004)

32 2444Z2338

  • 2444Z2338 - 90 ELBOW
  • 90° -- (1/4" PFx3/8" PF)
  • (Incls. O-Ring ZD12P01100)

33 2444Z2345

  • 2444Z2345 - 90 ELBOW
  • 90° -- (Incls. O-Rings ZD12P01400 & ZD12P01800)

34 2444Z3281

  • 2444Z3281 - ELBOW

35 2444Z3766

  • 2444Z3766 - ELBOW

36 2444Z2542

  • 2444Z2542 - HYD CONNECTOR

37 2444Z2477F6

  • 2444Z2477F6 - HYD CONNECTOR
  • WITH FILTER

38 ZH22X04000

  • ZH22X04000 - HYD CONNECTOR
  • 1/4" NPT x 1/4" NPT
  • 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)

39 ZH22X06000

  • ZH22X06000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01400)

40 ZH22X08000

  • ZH22X08000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01800)

41 ZH22X12000

  • ZH22X12000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P02400)

42 2444Z3163

  • 2444Z3163 - HYD CONNECTOR
  • CONNECTOR

43 2444Z3943

  • 2444Z3943 - ELEC CONNECTOR
  • 3/8" PF - 3/8"PFx 35mm Long (Incls. O-Ring ZD12P01400)

44 2444Z2335

  • 2444Z2335 - CONNECTION

45 2444Z2337

  • 2444Z2337 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01100)

46 2444Z2525

  • 2444Z2525 - HYD CONNECTOR
  • 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100)

47 2444Z2535

  • 2444Z2535 - HYD CONNECTOR

48 2444T2505

  • 2444T2505 - HYD CONNECTOR
  • 1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400)

49 2444Z3280

  • 2444Z3280 - HYD CONNECTOR

50 2444Z3322D3

  • 2444Z3322D3 - HYD CONNECTOR
  • 1/8"PF x 1/8"PT x 25mm Long (Incls. O-Ring)

51 2444Z3758

  • 2444Z3758 - HYD CONNECTOR

52 2444Z3759

  • 2444Z3759 - HYD CONNECTOR

53 ZE72X04000

  • ZE72X04000 - PLUG
  • (PF 1/4) (Incls. O-Ring ZD12P01100)

54 2425Z519

  • 2425Z519 - BALL

55 2418P20737

  • 2418P20737 - RIGID TUBE

56 ZX21M12045

  • ZX21M12045 - FLEXIBLE HOSE
  • 450mm Long (17-23/32 in)

57 ZX22M08045

  • ZX22M08045 - HOSE

58 2444R941D9

  • 2444R941D9 - FLEXIBLE HOSE
  • 800mm Long (31-1/2 in)

59 2444R963D7

  • 2444R963D7 - HOSE
  • 6.35mm ID x 500mm L

60 2444R963D11

  • 2444R963D11 - FLEXIBLE HOSE
  • 550 mm long (21-21/32 in)

61 2420R349D035

  • 2420R349D035 - HOSE
  • 350mm Long (13-49/64 in)

62 2420R349D038

  • 2420R349D038 - HOSE
  • 380mm Long (14-31/32 in)

63 2420R349D040

  • 2420R349D040 - HOSE
  • 6.35mm ID x 400mm L
  • 1/4" PF
  • 400mm Long (15-3/4 in)

64 2420R349D045

  • 2420R349D045 - HOSE
  • 450mm Long (17-23/32 in)

65 2420R349D050

  • 2420R349D050 - HOSE
  • 500.00 mm
  • 500mm Long (19-11/16 in)

66 2420R349D055

  • 2420R349D055 - HOSE
  • 6.35mm ID x 550mm L
  • 550mm Long (21-21/32 in)

67 2420R349D060

  • 2420R349D060 - HOSE
  • 6.35mm ID x 700mm L
  • 600mm Long (23-5/8 in)

68 2420R349D090

  • 2420R349D090 - HOSE
  • 6.35mm ID x 900mm L
  • 900mm Long (35-7/16 in)

69 2444R1119D100

  • 2444R1119D100 - HOSE
  • 3/8" PF
  • 1000mm Long (39-3/8 in)

70 2420R349D085

  • 2420R349D085 - HOSE
  • 6.35mm ID x 850mm L
  • 850mm Long (33-29/64 in)

71 2420R349D115

  • 2420R349D115 - HOSE
  • 1150.00 mm

72 2420R349D130

  • 2420R349D130 - FLEXIBLE HOSE
  • 1/4" PF
  • 1300mm Long (51-3/16 in)

73 2420R349D165

  • 2420R349D165 - HOSE
  • 1650.00 mm

74 2420R349D185

  • 2420R349D185 - HOSE
  • 6.35mm ID x 1850mm L

75 2420R349D205

  • 2420R349D205 - HOSE

76 2420R349D230

  • 2420R349D230 - HOSE ASSY.
  • 2300mm Long (90-1/2 in)

77 2420R349D360

  • 2420R349D360 - HOSE
  • 3600.00 mm

78 2420R349D375

  • 2420R349D375 - FLEXIBLE HOSE

79 2420R349D380

  • 2420R349D380 - FLEXIBLE HOSE
  • 3800mm Long (149-39/64 in)

80 2420R537D054

  • 2420R537D054 - FLEXIBLE HOSE
  • 9.60mm ID x 540mm L

81 2420R537D300

  • 2420R537D300 - HOSE
  • 9.60mm ID x 3000mm L

82 2420R537D170

  • 2420R537D170 - HOSE
  • 9.60mm ID x 1700mm L

83 2420R537D180

  • 2420R537D180 - HOSE
  • 9.60mm ID x 1800mm L
  • 1800mm Long (70-7/8 in)

84 2432R314

  • 2432R314 - CLIP

85 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Serial Range: YQ01701--YQ02034

86 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Serial Range: YN12201--YN18330

87 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Start Serial: YQ02085-

88 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Start Serial: YN18331-

89 2432Z290D6

  • 2432Z290D6 - CLIP
  • Wire Ties -- 292mm Long

90 2420T3483

  • 2420T3483 - GROMMET

91 2420Z1188

  • 2420Z1188 - GROMMET

92 2420Z1287

  • 2420Z1287 - GROMMET

93 2414Z199D025

  • 2414Z199D025 - PROTECTIVE SLEEVE
  • Hose -- 250mm Long (9-27/32 in)

94 2420R537D240

  • 2420R537D240 - HOSE
  • 9.53mm ID x 2400mm L

95 2420R537D220

  • 2420R537D220 - HOSE
  • 9.60mm ID x 2200mm L

96 2420R537D210

  • 2420R537D210 - HOSE
  • 9.53mm ID x 2100mm L

97 2420R537D265

  • 2420R537D265 - FLEXIBLE HOSE
  • 9.60mm ID x 2650mm L

98 2420R537D270

  • 2420R537D270 - FLEXIBLE HOSE
  • 9.60mm ID x 2700mm L
  • 2700mm Long (106-19/64 in)

99 2436U2606F1

  • 2436U2606F1 - PILOT VALVE
  • SEE(C P M)

100 ZS23C06030

  • ZS23C06030 - SCREW
  • Hex Socket Head
  • M6 x 30mm
  • M06x1.0x30mm

101 ZW22K06000

  • ZW22K06000 - LOCK WASHER
  • ID 06 x OD 10 x Th 1.5mm

102 ZW11K06000

  • ZW11K06000 - WASHER
  • ID 06 x OD 11.5 x Th 1.6mm

103 ZN13C14011

  • ZN13C14011 - NUT
  • M14x2.0mm

104 2414N4225

  • 2414N4225 - BOOT

105 2406R256F1

  • 2406R256F1 - HANDLE
  • ASSY

106 ZS13C08016

  • ZS13C08016 - SCREW
  • M08x1.25x16mm

107 ZS13C08040

  • ZS13C08040 - SCREW
  • M08x1.25x40mm

108 ZS13C10025

  • ZS13C10025 - CAPSCREW
  • SCREW M10x1.50x25mm

109 ZS13C10020

  • ZS13C10020 - SCREW
  • M10x1.50x20mm

110 ZW22X08000

  • ZW22X08000 - LOCK WASHER
  • ID 08 x OD 15.4 x Th 2.0mm

111 ZW22X10000

  • ZW22X10000 - LOCK WASHER
  • ID 10 x OD 18.4 x Th 2.5mm

112 2420R537D290

  • 2420R537D290 - HOSE
  • 9.53mm ID x 2900mm L

113 2420R537D310

  • 2420R537D310 - FLEXIBLE HOSE
  • 9.60mm ID x 3100mm L

114 2444Z3761

  • 2444Z3761 - TEE

115 2444T3309

  • 2444T3309 - TEE
  • (2) 3/8" PF x 1/4" PF x 60mm Long (Incls. O-Ring ZD12P01100)

116 2418T22461D1

  • 2418T22461D1 - PLATE
  • PLATE

117 2444Z2457

  • 2444Z2457 - TEE

118 2444R1119D090

  • 2444R1119D090 - HOSE

119 2444R1119D035

  • 2444R1119D035 - FLEXIBLE HOSE
  • 350mm Long (13-49/64 in)

120 2444R1119D180

  • 2444R1119D180 - HOSE
  • 1800mm Long (70-7/8 in)

121 2420R349D170

  • 2420R349D170 - FLEXIBLE HOSE
  • 1700mm Long (66-59/64 in)

122 2420R349D070

  • 2420R349D070 - HOSE
  • 700.00 mm
  • 700mm Long (27-9/16 in)

123 2444Z2447F2

  • 2444Z2447F2 - 90 ELBOW

124 2444Z3619

  • 2444Z3619 - HYD CONNECTOR

125 2444Z3817F1

  • 2444Z3817F1 - ELBOW UNION
  • Union Elbow WITH FILTER

126 2444R1111F3

  • 2444R1111F3 - HYD CONNECTOR

127 2417T537

  • 2417T537 - SPRING

128 2425Z551

  • 2425Z551 -
  • BALL

129 2444Z3775

  • 2444Z3775 - TEE

130 2444Z3787

  • 2444Z3787 - HYD CONNECTOR

131 2444Z3820

  • 2444Z3820 - 90 ELBOW
  • 90° -- 1/4" PT (Incls. O-Ring ZD12P01100)

132 2444Z3819

  • 2444Z3819 - HYD CONNECTOR

133 2444R1120D140

  • 2444R1120D140 - FLEXIBLE HOSE

134 2420R537D150

  • 2420R537D150 - FLEXIBLE HOSE
  • 9.60mm ID x 1500mm L
  • 3/8" PF
  • 1500mm Long (59-1/16 in)

135 2444R1119D044

  • 2444R1119D044 - HOSE

136 2420R537D255

  • 2420R537D255 - HOSE
  • 9.6mm ID x 2550mm L

137 2436U2755F1

  • 2436U2755F1 - PILOT VALVE
  • ASSEMBLY
  • See (C.P.M)

138 2420Z2185

  • 2420Z2185 - GROMMET
  • Start Serial: YQ02085-

139 2420Z2185

  • 2420Z2185 - GROMMET
  • Start Serial: YN18231-

140 2444T2524

  • 2444T2524 - HYD CONNECTOR
  • 1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)

141 ZS13C10030

  • ZS13C10030 - SCREW
  • M10x1.50x30mm

142 2420R349D110

  • 2420R349D110 - HOSE
  • 1100.00 mm
  • 1100mm Long (43-19/64 in)

143 2420R349D100

  • 2420R349D100 - HOSE
  • 1000mm Long (39-3/8 in)

144 ZH32X04006

  • ZH32X04006 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 3/8"
  • O-Ring
  • 90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400)

145 2436R914F1

  • 2436R914F1 - INLET MANIFOLD
  • SEE(C P M)
  • Serial Range: YQ011701--YQ02028

146 2436R914F1

  • 2436R914F1 - INLET MANIFOLD
  • SEE(C P M)
  • Serial Range: YN12201--YN15508

147 2436R914F2

  • 2436R914F2 - INLET MANIFOLD
  • SEE(C P M)
  • Start Serial: YQ02028-

148 2436R914F2

  • 2436R914F2 - INLET MANIFOLD
  • SEE(C P M)
  • Start Serial: YN15557-

149 2444Z3832

  • 2444Z3832 - TEE

150 2444T2533

  • 2444T2533 - TEE
  • (Incls. O-Ring ZD12P01400)

151 2444Z2891

  • 2444Z2891 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01400)

152 2420R537D045

  • 2420R537D045 - HOSE
  • 9.60mm ID x 450mm L

153 2420R537D190

  • 2420R537D190 - FLEXIBLE HOSE
  • 9.60mm ID x 1900mm L
  • 1900mm Long (74-13/16 in)

154 2432N578

  • 2432N578 - PLATE

155 2444Z4080

  • 2444Z4080 - HYD CONNECTOR
  • WITH FILTER

(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91) — другие схемы

LABEL,NAME-PLATE (STD) 24100J14855F3 (1) LABEL,NAME-PLATE (STD) 24100J14855F3 (1)
LABEL,NAME-PLATE (STD) 24100J14855F3 (2) LABEL,NAME-PLATE (STD) 24100J14855F3 (2)
LAMP 24100P3614F1 LAMP 24100P3614F1
LAMP 24100P3614F3 LAMP 24100P3614F3
LAMP 2456U110F3 LAMP 2456U110F3
LAMP ASSY 24560104P3 LAMP ASSY 24560104P3
LEVEL GAUGE VAME004139 LEVEL GAUGE VAME004139
LEVER 24100N7501F1 LEVER 24100N7501F1
LIGHT ASSY 24100N6799F1 LIGHT ASSY 24100N6799F1
LIGHT,24V, 70W LIGHT,24V, 70W
LIGHT,RH, 24V, 25W LIGHT,RH, 24V, 25W
LINER, ENGINE CYLIND VAME999993 LINER, ENGINE CYLIND VAME999993
MANIFOLD 24100J14242F1 (1) MANIFOLD 24100J14242F1 (1)
MANIFOLD 24100J14242F1 (2) MANIFOLD 24100J14242F1 (2)
MANIFOLD VAME088255 MANIFOLD VAME088255
MIRROR 24100P4126 MIRROR 24100P4126
MOTOR 2441U820F1 MOTOR 2441U820F1
MTG, ENGINE 24100N6773F1 MTG, ENGINE 24100N6773F1
NOT SOLD SEPARAT NSS (1) NOT SOLD SEPARAT NSS (1)
NOT SOLD SEPARAT NSS (2) NOT SOLD SEPARAT NSS (2)
NOT SOLD SEPARAT NSS (3) NOT SOLD SEPARAT NSS (3)
NOT SOLD SEPARAT NSS (4) NOT SOLD SEPARAT NSS (4)
NOT SOLD SEPARAT NSS (5) NOT SOLD SEPARAT NSS (5)
NOT SOLD SEPARAT NSS (6) NOT SOLD SEPARAT NSS (6)
NOT SOLD SEPARAT NSS (7) NOT SOLD SEPARAT NSS (7)
NOT SOLD SEPARAT NSS (8) NOT SOLD SEPARAT NSS (8)
NOZZLE VAME080082 NOZZLE VAME080082
OIL COOLER VAME088521 OIL COOLER VAME088521
OIL SEAL VAME999885 OIL SEAL VAME999885
PANEL ASSY, INST 24100J14614F1 (1) PANEL ASSY, INST 24100J14614F1 (1)
PANEL ASSY, INST 24100J14614F1 (2) PANEL ASSY, INST 24100J14614F1 (2)
PANEL ASSY, INST 24100J14614F1 (3) PANEL ASSY, INST 24100J14614F1 (3)
PANEL ASSY,INST 24100J14522F3 (1) PANEL ASSY,INST 24100J14522F3 (1)
PANEL ASSY,INST 24100J14522F3 (2) PANEL ASSY,INST 24100J14522F3 (2)
PANEL ASSY,INST 24100J14522F3 (3) PANEL ASSY,INST 24100J14522F3 (3)
PARTS KIT 24100R263F1 PARTS KIT 24100R263F1
PARTS KIT 24100U1472F1 PARTS KIT 24100U1472F1
PILOT VALVE 2436R866F1 PILOT VALVE 2436R866F1
PILOT VALVE 2436U1142F1 PILOT VALVE 2436U1142F1
PILOT VALVE 2436U1303F1 PILOT VALVE 2436U1303F1
PILOT VALVE 2436U2581F1 PILOT VALVE 2436U2581F1
PILOT VALVE 2436U2606F1 PILOT VALVE 2436U2606F1
PILOT VALVE 2436U2755F1 PILOT VALVE 2436U2755F1
PIPE VAME018182 PIPE VAME018182
PIPE VAME080071 PIPE VAME080071
PIPE VAME088610 PIPE VAME088610
PISTON VAME012858 PISTON VAME012858
PLATE ASSY. FLOOR 24100J14324F1 PLATE ASSY. FLOOR 24100J14324F1
PLATE VAME019926 PLATE VAME019926
PLUG 2420U235F1 PLUG 2420U235F1
PLUG VAMH037773 (1) PLUG VAMH037773 (1)
PLUG VAMH037773 (2) PLUG VAMH037773 (2)
POWER-PLANT ASSY 24100J14453F1 POWER-PLANT ASSY 24100J14453F1
PUMP 24100J13010F3 PUMP 24100J13010F3
PUMP 24100N6170F1 PUMP 24100N6170F1
PUMP 2437U389F1 PUMP 2437U389F1
PUMP VAME717104 PUMP VAME717104
RADIATOR 2452U426F1 RADIATOR 2452U426F1
REGULATOR 2436U1467F1 REGULATOR 2436U1467F1
REGULATOR 2436U1468F1 REGULATOR 2436U1468F1
REMOTE-CDNTROL ASSY 24100J14721F1 (1) REMOTE-CDNTROL ASSY 24100J14721F1 (1)
REMOTE-CDNTROL ASSY 24100J14721F1 (2) REMOTE-CDNTROL ASSY 24100J14721F1 (2)
REMOTE-CDNTROL ASSY 24100J14721F1 (3) REMOTE-CDNTROL ASSY 24100J14721F1 (3)
REMOTE-CONTROL ASSY 24100J14333F1 (1) REMOTE-CONTROL ASSY 24100J14333F1 (1)
REMOTE-CONTROL ASSY 24100J14333F1 (2) REMOTE-CONTROL ASSY 24100J14333F1 (2)
REMOTE-CONTROL ASSY 24100J14333F1 (3) REMOTE-CONTROL ASSY 24100J14333F1 (3)
REWORK, CONTROL ASSY 24100P3264F3 REWORK, CONTROL ASSY 24100P3264F3
REWORK, HYDR LINES 24100J12950F3 REWORK, HYDR LINES 24100J12950F3
RIGID TUBE VAME085512 RIGID TUBE VAME085512
ROLLER 24100N5946F2 ROLLER 24100N5946F2
ROLLER 24100N5947F3 ROLLER 24100N5947F3
SEAT 2448U167F1 SEAT 2448U167F1
SEAT 2448U251F1 SEAT 2448U251F1
SEAT ASSY 24100N7360F1 SEAT ASSY 24100N7360F1
SEAT ASSY 24100N7703F2 SEAT ASSY 24100N7703F2
SENDER UNIT VAMC845235 SENDER UNIT VAMC845235
SEPARATOR 2446U180F2 SEPARATOR 2446U180F2
SET OF CONN ROD BRGS U/S VAME999711 SET OF CONN ROD BRGS U/S VAME999711
SOLENOID VALVE 2436U1453F1 SOLENOID VALVE 2436U1453F1
SPOOL 2436R807F1 SPOOL 2436R807F1
SPRING 24100N5945F2 SPRING 24100N5945F2
STARTER MOTOR VAME087587 STARTER MOTOR VAME087587
STARTER MOTOR,24V, 5kW VAME087590 (1) STARTER MOTOR,24V, 5kW VAME087590 (1)
STARTER MOTOR,24V, 5kW VAME087590 (2) STARTER MOTOR,24V, 5kW VAME087590 (2)
STRAINER ASSY. VAME088540 STRAINER ASSY. VAME088540
STRAINER ELEMENT VAME088478 STRAINER ELEMENT VAME088478
SUMP VAME088657 SUMP VAME088657
SWING JOINT 24100J6668F1 SWING JOINT 24100J6668F1
SWITCH ASSY PRESSURE 24100P1818F1 SWITCH ASSY PRESSURE 24100P1818F1
SWITCH VAMC840219 (1) SWITCH VAMC840219 (1)
SWITCH VAMC840219 (2) SWITCH VAMC840219 (2)
TIMER VAME723275 TIMER VAME723275
TIMING GEAR CASE ASSY, Start Year: 01-JAN-90 TIMING GEAR CASE ASSY, Start Year: 01-JAN-90
TOOL ASSY 24100N4172F20 TOOL ASSY 24100N4172F20
TUBE VAME084620 TUBE VAME084620
TURBOCHARGER VAME088488 TURBOCHARGER VAME088488
TURBOCHARGER VAME088699 TURBOCHARGER VAME088699
U-BRACKET 2422N1553 U-BRACKET 2422N1553
UNIT, AIR-CONDITIONER 24100U1254F1 UNIT, AIR-CONDITIONER 24100U1254F1
VALVE 24036R78F1 VALVE 24036R78F1
VALVE 2436R1094F1 VALVE 2436R1094F1
VALVE 2436R874F1 VALVE 2436R874F1
VALVE 2436R884F1 VALVE 2436R884F1
VALVE 2436R913F1 VALVE 2436R913F1
VALVE 2436U1207F1 VALVE 2436U1207F1
VALVE 2436U1244F1 VALVE 2436U1244F1
VALVE 2436U1310F1 VALVE 2436U1310F1
VALVE 2436U1314F1 VALVE 2436U1314F1
VALVE 2436U1338F1 VALVE 2436U1338F1
VALVE 2436U1444F1 VALVE 2436U1444F1
VALVE ASSY 2436R790F1 VALVE ASSY 2436R790F1
VALVE ASSY HOLDING 2436R767F1 VALVE ASSY HOLDING 2436R767F1
VALVE ASSY, REDUCING 2436R624F2 VALVE ASSY, REDUCING 2436R624F2
VALVE ASSY, SOLENOID 24100U321Fl VALVE ASSY, SOLENOID 24100U321Fl
VALVE ASSY,HOLDING 2436U1311F1 VALVE ASSY,HOLDING 2436U1311F1
VALVE ASSY,RELIEF 2436R792F1 VALVE ASSY,RELIEF 2436R792F1
VALVE PRESSURE RELIE 24036R56F1 VALVE PRESSURE RELIE 24036R56F1
VALVE PRESSURE RELIE 24036R76F1 VALVE PRESSURE RELIE 24036R76F1
VALVE PRESSURE RELIE 2436R683F1 VALVE PRESSURE RELIE 2436R683F1
VALVE PRESSURE RELIE 2436R685F1 VALVE PRESSURE RELIE 2436R685F1
303 Все схемы
