(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91)
/

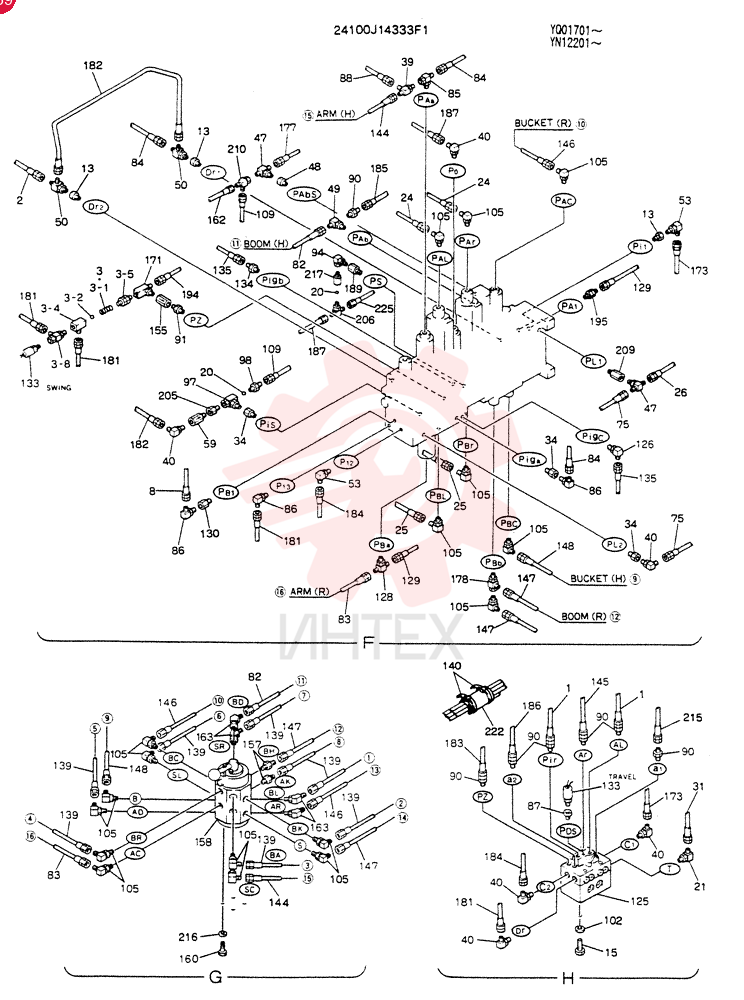

REMOTE-CONTROL ASSY 24100J14333F1 (3)

REMOTE-CONTROL ASSY 24100J14333F1 (3)

REMOTE-CONTROL ASSY 24100J14333F1 (3)

1 24100J14333F1

  • 24100J14333F1 - REMOTE-CONTROL ASSY

2 2420R349D375

  • 2420R349D375 - FLEXIBLE HOSE

3 2444R1120D150

  • 2444R1120D150 - HOSE
  • 1500mm Long (59-3/64 in)

4 2444R1111F3

  • 2444R1111F3 - HYD CONNECTOR

5 2417T537

  • 2417T537 - SPRING

6 2425Z551

  • 2425Z551 -
  • BALL

7 2444Z3775

  • 2444Z3775 - TEE

8 2444Z3787

  • 2444Z3787 - HYD CONNECTOR

9 2444Z3820

  • 2444Z3820 - 90 ELBOW
  • 90° -- 1/4" PT (Incls. O-Ring ZD12P01100)

10 ZH32X12000

  • ZH32X12000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/4" x PF 3/4"
  • O-Ring
  • Elbow
  • 90° -- 3/4 PF (Incls. O-Ring 237-6012)

11 ZH22X12000

  • ZH22X12000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P02400)

12 2444Z4081

  • 2444Z4081 - ELBOW

13 ZE72X04000

  • ZE72X04000 - PLUG
  • (PF 1/4) (Incls. O-Ring ZD12P01100)

14 2420R349D205

  • 2420R349D205 - HOSE

15 2436U2755F1

  • 2436U2755F1 - PILOT VALVE
  • ASSEMBLY
  • See (C.P.M)

16 2420R349D035

  • 2420R349D035 - HOSE
  • 350mm Long (13-49/64 in)

17 2436R914F1

  • 2436R914F1 - INLET MANIFOLD
  • SEE(C P M)
  • Serial Range: YQ01701--YQ02028

18 2436R914F1

  • 2436R914F1 - INLET MANIFOLD
  • SEE(C P M)
  • Serial Range: YN12201--YN15586

19 2436R914F2

  • 2436R914F2 - INLET MANIFOLD
  • SEE(C P M)
  • Start Serial: YQ02028-

20 2436R914F2

  • 2436R914F2 - INLET MANIFOLD
  • SEE(C P M)
  • Start Serial: YN15587-

21 2444Z2525

  • 2444Z2525 - HYD CONNECTOR
  • 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100)

22 ZS13C10020

  • ZS13C10020 - SCREW
  • M10x1.50x20mm

23 ZW22X08000

  • ZW22X08000 - LOCK WASHER
  • ID 08 x OD 15.4 x Th 2.0mm

24 2445R373F1

  • 2445R373F1 - ACCUMULATOR

25 2425Z519

  • 2425Z519 - BALL

26 ZH32X08000

  • ZH32X08000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/2" x PF 1/2"
  • O-Ring
  • Elbow
  • 90° -- 1/2"PT (Incls. O-Ring ZD12P01800)

27 ZS13C08016

  • ZS13C08016 - SCREW
  • M08x1.25x16mm

28 2444R1119D100

  • 2444R1119D100 - HOSE
  • 3/8" PF
  • 1000mm Long (39-3/8 in)

29 2420R537D290

  • 2420R537D290 - HOSE
  • 9.53mm ID x 2900mm L

30 2420R537D255

  • 2420R537D255 - HOSE
  • 9.6mm ID x 2550mm L

31 2420R349D090

  • 2420R349D090 - HOSE
  • 6.35mm ID x 900mm L
  • 900mm Long (35-7/16 in)

32 2432R314

  • 2432R314 - CLIP

33 2444Z2892

  • 2444Z2892 - TEE
  • (Incls. O-Ring ZD12P01400)

34 ZS18C10030

  • ZS18C10030 - SCREW
  • Hex
  • M10 x 30mm
  • M10x1.50x30mm

35 ZW26X10000

  • ZW26X10000 - LOCK WASHER
  • ID 10 x OD 18 x Th 2.5mm

36 ZX22M08045

  • ZX22M08045 - HOSE

37 ZS13C10025

  • ZS13C10025 - CAPSCREW
  • SCREW M10x1.50x25mm

38 2444Z2335

  • 2444Z2335 - CONNECTION

39 2444Z2891

  • 2444Z2891 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01400)

40 2444Z3465

  • 2444Z3465 - TEE
  • (Incls. O-Ring ZD12P01100)

41 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 90° -- PF 1/4
  • (Incls. O-Ring 237-6004)

42 2420R349D140

  • 2420R349D140 - HOSE
  • 6.35mm ID x 1400mm L
  • 1/4" PF

43 2420R537D150

  • 2420R537D150 - FLEXIBLE HOSE
  • 9.60mm ID x 1500mm L
  • 3/8" PF
  • 1500mm Long (59-1/16 in)

44 2444Z3832

  • 2444Z3832 - TEE

45 ZH52X04000

  • ZH52X04000 - TEE
  • 30 Degree Fl
  • Male
  • PF 1/4" x 1/4" x 1/4"
  • O-Ring
  • 1/4" PF (Incls. O-Ring 237-6004)

46 2444T2505

  • 2444T2505 - HYD CONNECTOR
  • 1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400)

47 2444T2533

  • 2444T2533 - TEE
  • (Incls. O-Ring ZD12P01400)

48 2444Z2336

  • 2444Z2336 - TEE
  • Tee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100)

49 ZX21M12045

  • ZX21M12045 - FLEXIBLE HOSE
  • 450mm Long (17-23/32 in)

50 2444R1119D044

  • 2444R1119D044 - HOSE

51 2444Z2447F2

  • 2444Z2447F2 - 90 ELBOW
  • WITH FILTER

52 2436U1282D2108

  • 2436U1282D2108 - VALVE PRESSURE RELIE
  • VALVE. RESTRICTOR

53 2436U1453F1

  • 2436U1453F1 - SOLENOID VALVE
  • SEE(C P M)

54 2444Z2345

  • 2444Z2345 - 90 ELBOW
  • 90° -- (Incls. O-Rings ZD12P01400 & ZD12P01800)

55 2436U1171D31

  • 2436U1171D31 - CHECK VALVE

56 2444T3298

  • 2444T3298 - TEE
  • 3/8" PF - 1/4" PF (Incls. O-Ring ZD12P01100)

57 2444Z2526

  • 2444Z2526 - TEE

58 2420R349D050

  • 2420R349D050 - HOSE
  • 500.00 mm
  • 500mm Long (19-11/16 in)

59 ZH42X04000

  • ZH42X04000 - 45 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 45° -- (Incls. O-Ring 237-6004)

60 2444R963D11

  • 2444R963D11 - FLEXIBLE HOSE
  • 550 mm long (21-21/32 in)

61 2420R537D160

  • 2420R537D160 - HOSE
  • 9.60mm ID x 1600mm L

62 2420R537D170

  • 2420R537D170 - HOSE
  • 9.60mm ID x 1700mm L

63 2420R349D045

  • 2420R349D045 - HOSE
  • 450mm Long (17-23/32 in)

64 2444T2666

  • 2444T2666 - TEE

65 2444Z2447F1

  • 2444Z2447F1 - ELBOW UNION
  • Union Elbow

66 2444Z3322D3

  • 2444Z3322D3 - HYD CONNECTOR
  • 1/8"PF x 1/8"PT x 25mm Long (Incls. O-Ring)

67 2420R349D038

  • 2420R349D038 - HOSE
  • 380mm Long (14-31/32 in)

68 2436U1453F2

  • 2436U1453F2 - SOLENOID VALVE
  • SEE(C P M)

69 ZH22X04000

  • ZH22X04000 - HYD CONNECTOR
  • 1/4" NPT x 1/4" NPT
  • 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)

70 2444Z2535

  • 2444Z2535 - HYD CONNECTOR

71 2432Z290D6

  • 2432Z290D6 - CLIP
  • Wire Ties -- 292mm Long

72 2414Z199D025

  • 2414Z199D025 - PROTECTIVE SLEEVE
  • Hose -- 250mm Long (9-27/32 in)

73 2444Z3817F1

  • 2444Z3817F1 - ELBOW UNION
  • Union Elbow WITH FILTER

74 2444Z2522F1

  • 2444Z2522F1 - TEE
  • ASSY

75 2444Z3759

  • 2444Z3759 - HYD CONNECTOR

76 2420T3483

  • 2420T3483 - GROMMET

77 2418T22461D1

  • 2418T22461D1 - PLATE
  • PLATE

78 ZW22X10000

  • ZW22X10000 - LOCK WASHER
  • ID 10 x OD 18.4 x Th 2.5mm

79 2444Z2337

  • 2444Z2337 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01100)

80 2420R537D054

  • 2420R537D054 - FLEXIBLE HOSE
  • 9.60mm ID x 540mm L

81 ZH32X06000

  • ZH32X06000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • Elbow
  • 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006

82 2410T323

  • 2410T323 - BLOCK

83 ZS13C08040

  • ZS13C08040 - SCREW
  • M08x1.25x40mm

84 2420R349D080

  • 2420R349D080 - HOSE
  • 6.35mm ID x 800mm L
  • 800mm Long (31-1/2 in)

85 2420R349D085

  • 2420R349D085 - HOSE
  • 6.35mm ID x 850mm L
  • 850mm Long (33-29/64 in)

86 2444R1119D085

  • 2444R1119D085 - FLEXIBLE HOSE

87 2436U2581F3

  • 2436U2581F3 - PILOT VALVE
  • SEE(C P M)

88 ZS23C06030

  • ZS23C06030 - SCREW
  • Hex Socket Head
  • M6 x 30mm
  • M06x1.0x30mm

89 ZW22K06000

  • ZW22K06000 - LOCK WASHER
  • ID 06 x OD 10 x Th 1.5mm

90 ZW11K06000

  • ZW11K06000 - WASHER
  • ID 06 x OD 11.5 x Th 1.6mm

91 ZN13C14011

  • ZN13C14011 - NUT
  • M14x2.0mm

92 2406T3305

  • 2406T3305 - LEVER

93 2420Z1232

  • 2420Z1232 - NUT
  • M12x1.25mm

94 2406R259D2

  • 2406R259D2 - GRIP
  • HORN

95 2406R260D2

  • 2406R260D2 - GRIP
  • ATT POWER BOST

96 2414N4225

  • 2414N4225 - BOOT

97 2436U1444F1

  • 2436U1444F1 - VALVE
  • BYPASS SEE(C P M)

98 2444Z3281

  • 2444Z3281 - ELBOW

99 2444Z2338

  • 2444Z2338 - 90 ELBOW
  • 90° -- (1/4" PFx3/8" PF)
  • (Incls. O-Ring ZD12P01100)

100 ZH52X06000

  • ZH52X06000 - TEE
  • 30 Degree Fl
  • Male
  • PF 3/8" x 3/8" x 3/8"
  • O-Ring
  • 3/8"PFx54mm Long (Incls. O-Ring ZD12P01400)

101 2444R941D9

  • 2444R941D9 - FLEXIBLE HOSE
  • 800mm Long (31-1/2 in)

102 2444Z2542

  • 2444Z2542 - HYD CONNECTOR

103 2479U1378

  • 2479U1378 - PRESSURE SWITCH

104 2444Z3280

  • 2444Z3280 - HYD CONNECTOR

105 2418P20737

  • 2418P20737 - RIGID TUBE

106 2420R537D205

  • 2420R537D205 - FLEXIBLE HOSE
  • 9.60mm ID x 2050mm L
  • PF 3/8
  • 2050mm Long (80-45/64 in)

107 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Serial Range: YQ01701--YQ02084

108 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Serial Range: YN12201--YN18330

109 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Start Serial: YQ02035-

110 2432Z290

  • 2432Z290 - CLIP
  • Wire Ties -- 185mm Long
  • Start Serial: YN16331-

111 2420Z1188

  • 2420Z1188 - GROMMET

112 2420Z1287

  • 2420Z1287 - GROMMET

113 2420R537D135

  • 2420R537D135 - FLEXIBLE HOSE
  • 9.60mm ID x 1350mm L

114 2420R349D355

  • 2420R349D355 - FLEXIBLE HOSE

115 2420R537D165

  • 2420R537D165 - HOSE
  • 9.60mm ID x 1650mm L
  • PF 3/8

116 2420R537D180

  • 2420R537D180 - HOSE
  • 9.60mm ID x 1800mm L
  • 1800mm Long (70-7/8 in)

117 2420R537D185

  • 2420R537D185 - FLEXIBLE HOSE
  • 9.60mm ID x 1850mm L

118 2444Z2457

  • 2444Z2457 - TEE

119 2436U1171D21

  • 2436U1171D21 - CHECK VALVE

120 ZH22X06000

  • ZH22X06000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01400)

121 2436U1244F1

  • 2436U1244F1 - VALVE
  • MULTI MODE SEE(C P M)

122 ZS18C08020

  • ZS18C08020 - SCREW
  • Hex
  • M8 x 20mm
  • M08x1.25x20mm

123 2420R349D230

  • 2420R349D230 - HOSE ASSY.
  • 2300mm Long (90-1/2 in)

124 ZH42X06000

  • ZH42X06000 - 45 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • 45° -- (Incls. O-Ring 237-6006)

125 2432T2518

  • 2432T2518 - LABEL
  • LABEL
  • Serial Range: YQ01701--YQ01824

126 2432T2518

  • 2432T2518 - LABEL
  • LABEL
  • Serial Range: YN12201--YN14402

127 2432T5749

  • 2432T5749 - LABEL
  • LABEL
  • Start Serial: YQ01825-

128 2432T5749

  • 2432T5749 - LABEL
  • LABEL
  • Start Serial: YN14403-

129 2432N1749

  • 2432N1749 - LABEL

130 2432N1750

  • 2432N1750 - INSTALLER JIG

131 2432N1751

  • 2432N1751 - INSTALLER JIG

132 2432N1752

  • 2432N1752 - INSTALLER JIG

133 2444T2529

  • 2444T2529 - TEE
  • 1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)

134 2420R349D130

  • 2420R349D130 - FLEXIBLE HOSE
  • 1/4" PF
  • 1300mm Long (51-3/16 in)

135 2420R349D165

  • 2420R349D165 - HOSE
  • 1650.00 mm

136 2444T3402

  • 2444T3402 - TEE
  • Tee -- (Incls. O-Ring 237-6004)

137 ZH22X08000

  • ZH22X08000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01800)

138 2420R349D040

  • 2420R349D040 - HOSE
  • 6.35mm ID x 400mm L
  • 1/4" PF
  • 400mm Long (15-3/4 in)

139 2420R349D070

  • 2420R349D070 - HOSE
  • 700.00 mm
  • 700mm Long (27-9/16 in)

140 2420R349D055

  • 2420R349D055 - HOSE
  • 6.35mm ID x 550mm L
  • 550mm Long (21-21/32 in)

141 2420R349D170

  • 2420R349D170 - FLEXIBLE HOSE
  • 1700mm Long (66-59/64 in)

142 2420R349D185

  • 2420R349D185 - HOSE
  • 6.35mm ID x 1850mm L

143 2444R963D7

  • 2444R963D7 - HOSE
  • 6.35mm ID x 500mm L

144 2420R349D060

  • 2420R349D060 - HOSE
  • 6.35mm ID x 700mm L
  • 600mm Long (23-5/8 in)

145 2444T2524

  • 2444T2524 - HYD CONNECTOR
  • 1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)

146 2420R537D190

  • 2420R537D190 - FLEXIBLE HOSE
  • 9.60mm ID x 1900mm L
  • 1900mm Long (74-13/16 in)

147 2420R537D045

  • 2420R537D045 - HOSE
  • 9.60mm ID x 450mm L

148 2420R349D115

  • 2420R349D115 - HOSE
  • 1150.00 mm

149 2444Z2477F6

  • 2444Z2477F6 - HYD CONNECTOR
  • WITH FILTER

150 ZS13C10030

  • ZS13C10030 - SCREW
  • M10x1.50x30mm

151 ZH32X04006

  • ZH32X04006 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 3/8"
  • O-Ring
  • 90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400)

152 2444Z3766

  • 2444Z3766 - ELBOW

153 2444Z3758

  • 2444Z3758 - HYD CONNECTOR

154 2444Z3761

  • 2444Z3761 - TEE

155 2432T4903

  • 2432T4903 - LABEL
  • LABEL
  • Serial Range: YQ01701--YQ01824

156 2432T4903

  • 2432T4903 - LABEL
  • LABEL
  • Serial Range: YN12201--YN14482

157 2432T5752

  • 2432T5752 - LABEL
  • LABEL
  • Start Serial: YQ01825-

158 2432T5752

  • 2432T5752 - LABEL
  • LABEL
  • Start Serial: YN14403-

159 2444Z3819

  • 2444Z3819 - HYD CONNECTOR

160 2444Z2544

  • 2444Z2544 - TEE
  • 1/4"PTx60mm Long (No O-Ring supplied)

161 2444R1119D180

  • 2444R1119D180 - HOSE
  • 1800mm Long (70-7/8 in)

162 2444R1119D035

  • 2444R1119D035 - FLEXIBLE HOSE
  • 350mm Long (13-49/64 in)

163 2444T3309

  • 2444T3309 - TEE
  • (2) 3/8" PF x 1/4" PF x 60mm Long (Incls. O-Ring ZD12P01100)

164 2420R349D100

  • 2420R349D100 - HOSE
  • 1000mm Long (39-3/8 in)

165 ZW26X08000

  • ZW26X08000 - LOCK WASHER
  • Lock -- ID 08 x OD 15 x Th 2.0mm

166 2444Z3619

  • 2444Z3619 - HYD CONNECTOR

167 2420Z2185

  • 2420Z2185 - GROMMET
  • Start Serial: YQ02035-

168 2420Z2185

  • 2420Z2185 - GROMMET
  • Start Serial: YN18331-

169 2420R349D110

  • 2420R349D110 - HOSE
  • 1100.00 mm
  • 1100mm Long (43-19/64 in)

170 2444Z4080

  • 2444Z4080 - HYD CONNECTOR
  • WITH FILTER

171 2432T5316

  • 2432T5316 - LABEL
  • LABEL

(SK200LC) - MARK III EXCAVATOR ASN YN12201 (1/91-12/91) — другие схемы

LAMP ASSY 24560104P3 LAMP ASSY 24560104P3
LEVEL GAUGE VAME004139 LEVEL GAUGE VAME004139
LEVER 24100N7501F1 LEVER 24100N7501F1
LIGHT ASSY 24100N6799F1 LIGHT ASSY 24100N6799F1
LIGHT,24V, 70W LIGHT,24V, 70W
LIGHT,RH, 24V, 25W LIGHT,RH, 24V, 25W
LINER, ENGINE CYLIND VAME999993 LINER, ENGINE CYLIND VAME999993
MANIFOLD 24100J14242F1 (1) MANIFOLD 24100J14242F1 (1)
MANIFOLD 24100J14242F1 (2) MANIFOLD 24100J14242F1 (2)
MANIFOLD VAME088255 MANIFOLD VAME088255
MIRROR 24100P4126 MIRROR 24100P4126
MOTOR 2441U820F1 MOTOR 2441U820F1
MTG, ENGINE 24100N6773F1 MTG, ENGINE 24100N6773F1
NOT SOLD SEPARAT NSS (1) NOT SOLD SEPARAT NSS (1)
NOT SOLD SEPARAT NSS (2) NOT SOLD SEPARAT NSS (2)
NOT SOLD SEPARAT NSS (3) NOT SOLD SEPARAT NSS (3)
NOT SOLD SEPARAT NSS (4) NOT SOLD SEPARAT NSS (4)
NOT SOLD SEPARAT NSS (5) NOT SOLD SEPARAT NSS (5)
NOT SOLD SEPARAT NSS (6) NOT SOLD SEPARAT NSS (6)
NOT SOLD SEPARAT NSS (7) NOT SOLD SEPARAT NSS (7)
NOT SOLD SEPARAT NSS (8) NOT SOLD SEPARAT NSS (8)
NOZZLE VAME080082 NOZZLE VAME080082
OIL COOLER VAME088521 OIL COOLER VAME088521
OIL SEAL VAME999885 OIL SEAL VAME999885
PANEL ASSY, INST 24100J14614F1 (1) PANEL ASSY, INST 24100J14614F1 (1)
PANEL ASSY, INST 24100J14614F1 (2) PANEL ASSY, INST 24100J14614F1 (2)
PANEL ASSY, INST 24100J14614F1 (3) PANEL ASSY, INST 24100J14614F1 (3)
PANEL ASSY,INST 24100J14522F3 (1) PANEL ASSY,INST 24100J14522F3 (1)
PANEL ASSY,INST 24100J14522F3 (2) PANEL ASSY,INST 24100J14522F3 (2)
PANEL ASSY,INST 24100J14522F3 (3) PANEL ASSY,INST 24100J14522F3 (3)
PARTS KIT 24100R263F1 PARTS KIT 24100R263F1
PARTS KIT 24100U1472F1 PARTS KIT 24100U1472F1
PILOT VALVE 2436R866F1 PILOT VALVE 2436R866F1
PILOT VALVE 2436U1142F1 PILOT VALVE 2436U1142F1
PILOT VALVE 2436U1303F1 PILOT VALVE 2436U1303F1
PILOT VALVE 2436U2581F1 PILOT VALVE 2436U2581F1
PILOT VALVE 2436U2606F1 PILOT VALVE 2436U2606F1
PILOT VALVE 2436U2755F1 PILOT VALVE 2436U2755F1
PIPE VAME018182 PIPE VAME018182
PIPE VAME080071 PIPE VAME080071
PIPE VAME088610 PIPE VAME088610
PISTON VAME012858 PISTON VAME012858
PLATE ASSY. FLOOR 24100J14324F1 PLATE ASSY. FLOOR 24100J14324F1
PLATE VAME019926 PLATE VAME019926
PLUG 2420U235F1 PLUG 2420U235F1
PLUG VAMH037773 (1) PLUG VAMH037773 (1)
PLUG VAMH037773 (2) PLUG VAMH037773 (2)
POWER-PLANT ASSY 24100J14453F1 POWER-PLANT ASSY 24100J14453F1
PUMP 24100J13010F3 PUMP 24100J13010F3
PUMP 24100N6170F1 PUMP 24100N6170F1
PUMP 2437U389F1 PUMP 2437U389F1
PUMP VAME717104 PUMP VAME717104
RADIATOR 2452U426F1 RADIATOR 2452U426F1
REGULATOR 2436U1467F1 REGULATOR 2436U1467F1
REGULATOR 2436U1468F1 REGULATOR 2436U1468F1
REMOTE-CDNTROL ASSY 24100J14721F1 (1) REMOTE-CDNTROL ASSY 24100J14721F1 (1)
REMOTE-CDNTROL ASSY 24100J14721F1 (2) REMOTE-CDNTROL ASSY 24100J14721F1 (2)
REMOTE-CDNTROL ASSY 24100J14721F1 (3) REMOTE-CDNTROL ASSY 24100J14721F1 (3)
REMOTE-CONTROL ASSY 24100J14333F1 (1) REMOTE-CONTROL ASSY 24100J14333F1 (1)
REMOTE-CONTROL ASSY 24100J14333F1 (2) REMOTE-CONTROL ASSY 24100J14333F1 (2)
REMOTE-CONTROL ASSY 24100J14333F1 (3) REMOTE-CONTROL ASSY 24100J14333F1 (3)
REWORK, CONTROL ASSY 24100P3264F3 REWORK, CONTROL ASSY 24100P3264F3
REWORK, HYDR LINES 24100J12950F3 REWORK, HYDR LINES 24100J12950F3
RIGID TUBE VAME085512 RIGID TUBE VAME085512
ROLLER 24100N5946F2 ROLLER 24100N5946F2
ROLLER 24100N5947F3 ROLLER 24100N5947F3
SEAT 2448U167F1 SEAT 2448U167F1
SEAT 2448U251F1 SEAT 2448U251F1
SEAT ASSY 24100N7360F1 SEAT ASSY 24100N7360F1
SEAT ASSY 24100N7703F2 SEAT ASSY 24100N7703F2
SENDER UNIT VAMC845235 SENDER UNIT VAMC845235
SEPARATOR 2446U180F2 SEPARATOR 2446U180F2
SET OF CONN ROD BRGS U/S VAME999711 SET OF CONN ROD BRGS U/S VAME999711
SOLENOID VALVE 2436U1453F1 SOLENOID VALVE 2436U1453F1
SPOOL 2436R807F1 SPOOL 2436R807F1
SPRING 24100N5945F2 SPRING 24100N5945F2
STARTER MOTOR VAME087587 STARTER MOTOR VAME087587
STARTER MOTOR,24V, 5kW VAME087590 (1) STARTER MOTOR,24V, 5kW VAME087590 (1)
STARTER MOTOR,24V, 5kW VAME087590 (2) STARTER MOTOR,24V, 5kW VAME087590 (2)
STRAINER ASSY. VAME088540 STRAINER ASSY. VAME088540
STRAINER ELEMENT VAME088478 STRAINER ELEMENT VAME088478
SUMP VAME088657 SUMP VAME088657
SWING JOINT 24100J6668F1 SWING JOINT 24100J6668F1
SWITCH ASSY PRESSURE 24100P1818F1 SWITCH ASSY PRESSURE 24100P1818F1
SWITCH VAMC840219 (1) SWITCH VAMC840219 (1)
SWITCH VAMC840219 (2) SWITCH VAMC840219 (2)
TIMER VAME723275 TIMER VAME723275
TIMING GEAR CASE ASSY, Start Year: 01-JAN-90 TIMING GEAR CASE ASSY, Start Year: 01-JAN-90
TOOL ASSY 24100N4172F20 TOOL ASSY 24100N4172F20
TUBE VAME084620 TUBE VAME084620
TURBOCHARGER VAME088488 TURBOCHARGER VAME088488
TURBOCHARGER VAME088699 TURBOCHARGER VAME088699
U-BRACKET 2422N1553 U-BRACKET 2422N1553
UNIT, AIR-CONDITIONER 24100U1254F1 UNIT, AIR-CONDITIONER 24100U1254F1
VALVE 24036R78F1 VALVE 24036R78F1
VALVE 2436R1094F1 VALVE 2436R1094F1
VALVE 2436R874F1 VALVE 2436R874F1
VALVE 2436R884F1 VALVE 2436R884F1
VALVE 2436R913F1 VALVE 2436R913F1
VALVE 2436U1207F1 VALVE 2436U1207F1
VALVE 2436U1244F1 VALVE 2436U1244F1
VALVE 2436U1310F1 VALVE 2436U1310F1
VALVE 2436U1314F1 VALVE 2436U1314F1
VALVE 2436U1338F1 VALVE 2436U1338F1
VALVE 2436U1444F1 VALVE 2436U1444F1
VALVE ASSY 2436R790F1 VALVE ASSY 2436R790F1
VALVE ASSY HOLDING 2436R767F1 VALVE ASSY HOLDING 2436R767F1
VALVE ASSY, REDUCING 2436R624F2 VALVE ASSY, REDUCING 2436R624F2
VALVE ASSY, SOLENOID 24100U321Fl VALVE ASSY, SOLENOID 24100U321Fl
VALVE ASSY,HOLDING 2436U1311F1 VALVE ASSY,HOLDING 2436U1311F1
VALVE ASSY,RELIEF 2436R792F1 VALVE ASSY,RELIEF 2436R792F1
VALVE PRESSURE RELIE 24036R56F1 VALVE PRESSURE RELIE 24036R56F1
VALVE PRESSURE RELIE 24036R76F1 VALVE PRESSURE RELIE 24036R76F1
VALVE PRESSURE RELIE 2436R683F1 VALVE PRESSURE RELIE 2436R683F1
VALVE PRESSURE RELIE 2436R685F1 VALVE PRESSURE RELIE 2436R685F1
VALVE PRESSURE RELIE 2436R721F1 VALVE PRESSURE RELIE 2436R721F1
VALVE PRESSURE RELIE 2436R759F1 VALVE PRESSURE RELIE 2436R759F1
VALVE PRESSURE RELIE 2436R768F1 VALVE PRESSURE RELIE 2436R768F1
VALVE PRESSURE RELIE 2436R858F1 VALVE PRESSURE RELIE 2436R858F1
VALVE PRESSURE RELIE 2436U1143F1 VALVE PRESSURE RELIE 2436U1143F1
303 Все схемы
