(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

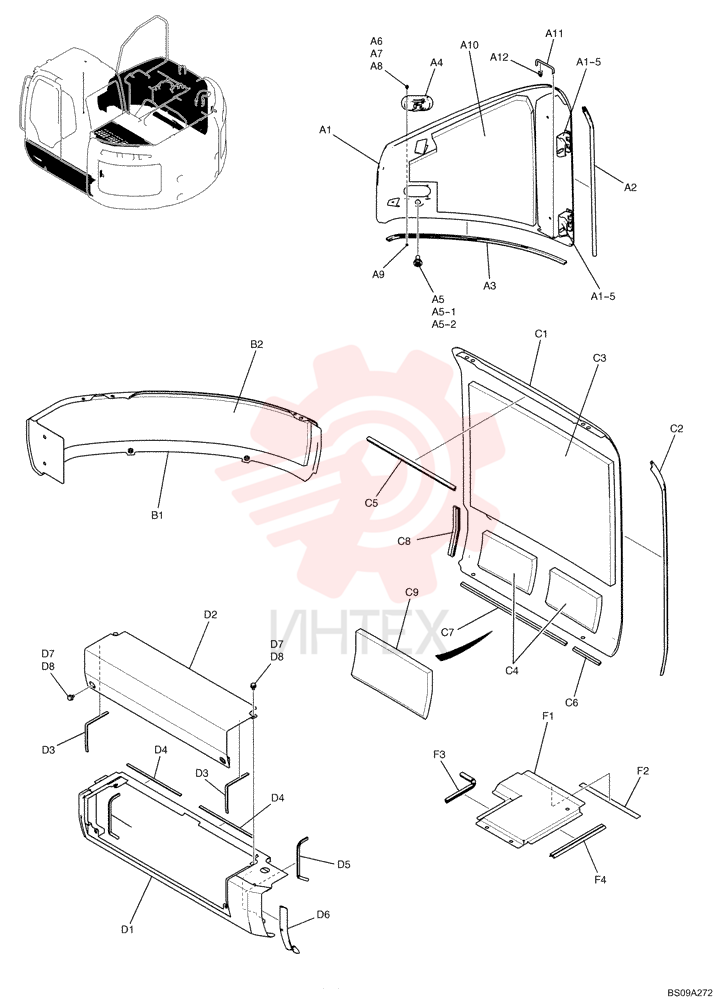

PANEL YF21C01567F1 (2)

PANEL YF21C01567F1 (2)

PANEL YF21C01567F1 (2)

1 YF21C01567F1

  • YF21C01567F1 - PANEL

2 YF21C01707P2

  • YF21C01707P2 - PANEL

3 YF21C01707P3

  • YF21C01707P3 - PANEL

4 YF21C01753P1

  • YF21C01753P1 - HINGE

5 YT21C01164DF

  • YT21C01164DF - WEATHERSTRIP

6 PM22C01013DT

  • PM22C01013DT - WEATHERSTRIP

7 YF21C01703P1

  • YF21C01703P1 - LOCK

8 YF21C01796P1

  • YF21C01796P1 - LOCK

9 PM21C01268F1

  • PM21C01268F1 - LOCK

10 YR22C01025P2

  • YR22C01025P2 - LOCK

11 PM21C01269P1

  • PM21C01269P1 - PLATE

12 PH22C01023P1

  • PH22C01023P1 - BOLT

13 ZW16H05000

  • ZW16H05000 - WASHER

14 ZW26X05000

  • ZW26X05000 - LOCK WASHER

15 ZN18C05004

  • ZN18C05004 - NUT

16 YF21C01761P1

  • YF21C01761P1 - FOAM INSULATION

17 YF21C01490P1

  • YF21C01490P1 - STAY

18 YR21C01123P1

  • YR21C01123P1 - COLLAR

19 YF21C01763F1

  • YF21C01763F1 - PANEL

20 YF21C01611P1

  • YF21C01611P1 - PANEL

21 YF21C01878P1

  • YF21C01878P1 - PANEL

22 YF21C01764P1

  • YF21C01764P1 - FOAM INSULATION

23 YF21C01673F1

  • YF21C01673F1 - PANEL

24 YF21C01814P1

  • YF21C01814P1 - PANEL

25 YF21C01814P2

  • YF21C01814P2 - PANEL

26 YT21C01297DC

  • YT21C01297DC - WEATHERSTRIP

27 YF21C01674P1

  • YF21C01674P1 - FOAM INSULATION

28 YF21C01675P1

  • YF21C01675P1 - FOAM INSULATION

29 YJ21C01134D2

  • YJ21C01134D2 - WEATHERSTRIP

30 PM21C01136D9

  • PM21C01136D9 - WEATHERSTRIP

31 PM21C01136DB

  • PM21C01136DB - WEATHERSTRIP

32 YR21C01168DB

  • YR21C01168DB - WEATHERSTRIP

33 YF21C01862P1

  • YF21C01862P1 - INSULATOR

34 YF21C01628F1

  • YF21C01628F1 - COVER ASSY

35 YF21C01625P1

  • YF21C01625P1 - COVER

36 YF21C01664P1

  • YF21C01664P1 - COVER

37 PF02C01062D7

  • PF02C01062D7 - RUBBER BAND

38 PF02C01062D6

  • PF02C01062D6 - RUBBER BAND

39 PM22C01020DG

  • PM22C01020DG - TRIM PANEL

40 YT21C01297D2

  • YT21C01297D2 - INSULATING PANEL

41 ZM73C10020

  • ZM73C10020 - BOLT
  • M10x20mm - Course Thread

42 YT21C01187P2

  • YT21C01187P2 - WASHER

43 YF21C01576F1

  • YF21C01576F1 - COVER ASSY

44 YF21C01577P1

  • YF21C01577P1 - COVER

45 YF21C01682P1

  • YF21C01682P1 - RUBBER BAND

46 2427Z2106D1

  • 2427Z2106D1 - WEATHERSTRIP

47 YJ21C01079DG

  • YJ21C01079DG - WEATHERSTRIP
