(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

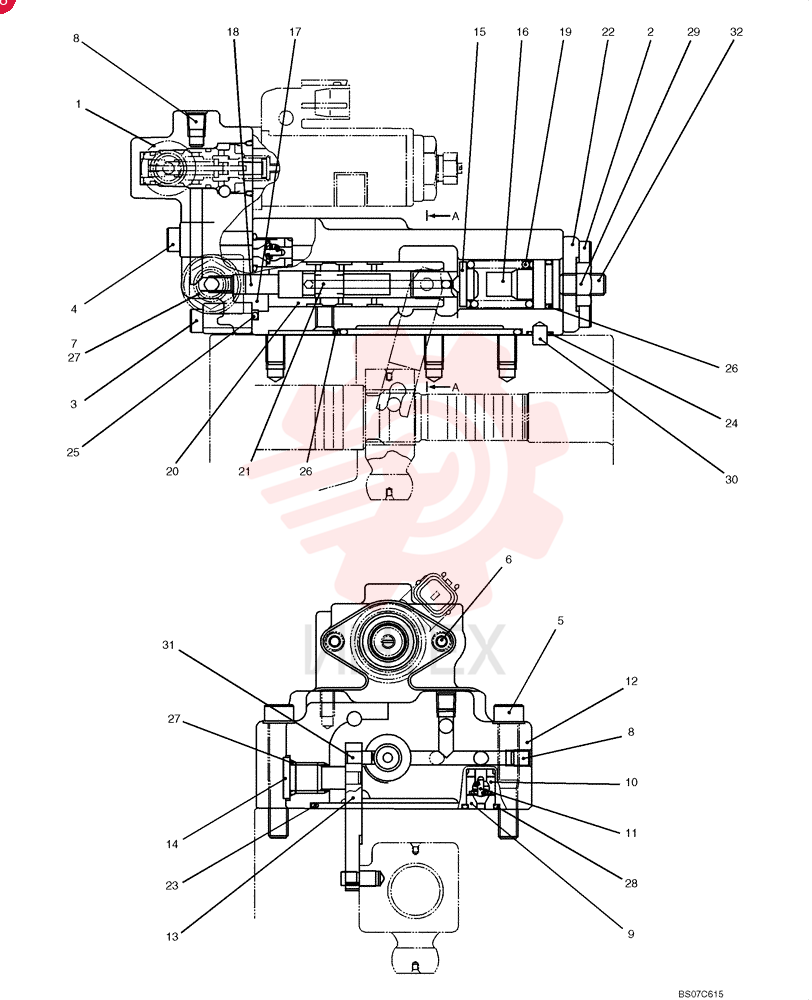

REGULATOR YF10V01002F1

REGULATOR YF10V01002F1

REGULATOR YF10V01002F1

1 YF10V01002F1

  • YF10V01002F1 - REGULATOR

2 NSS

  • NSS - NOT SOLD SEPARAT

3 ZS28C06016

  • ZS28C06016 - SCREW
  • Hex Socket Head
  • M6 x 16mm

4 ZS23C06030

  • ZS23C06030 - SCREW
  • Hex Socket Head
  • M6 x 30mm

5 ZS23C06040

  • ZS23C06040 - SCREW
  • Hex Socket Head
  • M6 x 40mm

6 ZS23C08050

  • ZS23C08050 - CAP
  • Hex Socket Head
  • M8 x 50mm

7 YX35V00002S171

  • YX35V00002S171 - SCREW
  • Hex Socket Head
  • M5 x 12mm

8 2441U667S466

  • 2441U667S466 - PLUG

9 2441U722S490

  • 2441U722S490 - PLUG

10 NSS

  • NSS - NOT SOLD SEPARAT

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 NSS

  • NSS - NOT SOLD SEPARAT

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 NSS

  • NSS - NOT SOLD SEPARAT

18 NSS

  • NSS - NOT SOLD SEPARAT

19 NSS

  • NSS - NOT SOLD SEPARAT

20 NSS

  • NSS - NOT SOLD SEPARAT

21 NSS

  • NSS - NOT SOLD SEPARAT

22 NSS

  • NSS - NOT SOLD SEPARAT

23 NSS

  • NSS - NOT SOLD SEPARAT

24 YX10V01001S010

  • YX10V01001S010 - O-RING

25 YX10V00003S015

  • YX10V00003S015 - O-RING
  • 1.9mm Thk x 8.8mm ID
  • 75 Duro

26 YX10V01001S012

  • YX10V01001S012 - O-RING

27 YT10V00003S708

  • YT10V00003S708 - O-RING

28 YT10V00003S710

  • YT10V00003S710 - O-RING

29 YX10V01001S015

  • YX10V01001S015 - O-RING

30 ZN18C10008

  • ZN18C10008 - NUT

31 NSS

  • NSS - NOT SOLD SEPARAT

32 NSS

  • NSS - NOT SOLD SEPARAT

33 YF10V01001S924

  • YF10V01001S924 - SCREW

34 YF10V01001R100

  • YF10V01001R100 - STOP
