(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

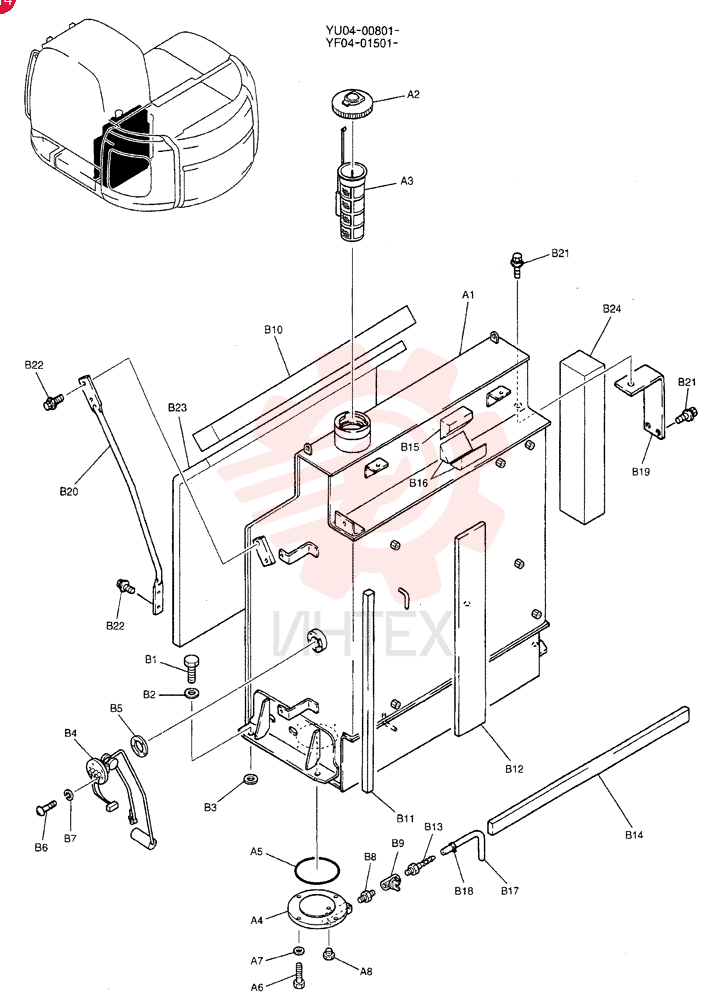

TANK ASSY, FUEL YF20P00002F1

TANK ASSY, FUEL YF20P00002F1

TANK ASSY, FUEL YF20P00002F1

1 YF20P00002F1

  • YF20P00002F1 - TANK ASSY
  • FUEL

2 YF20P00005P1

  • YF20P00005P1 - FUEL TANK

3 ZE82T08000

  • ZE82T08000 - PLUG

4 YN20P01034P2

  • YN20P01034P2 - CAP

5 YY50V00001P1

  • YY50V00001P1 - STRAINER ASSY.

6 YY20P01043P1

  • YY20P01043P1 - FLANGE

7 ZD11P13000

  • ZD11P13000 - O-RING

8 ZS18C10025

  • ZS18C10025 - SCREW
  • Hex
  • M10 x 25mm

9 ZW16X10000

  • ZW16X10000 - WASHER

10 ZE82T04000

  • ZE82T04000 - PLUG

11 YF20P00003F1

  • YF20P00003F1 - TANK INSTAL
  • FUEL

12 ZS18C16045

  • ZS18C16045 - SCREW
  • Hex
  • M16 x 45mm

13 ZW16H16000

  • ZW16H16000 - WASHER

14 LE33H01017D1

  • LE33H01017D1 - SHIM
  • 1.0mm Thk

15 YF52S00001F1

  • YF52S00001F1 - SENSOR

16 2418T9962

  • 2418T9962 - PACKING

17 ZS31C05012

  • ZS31C05012 - BOLT
  • Phillips Drive
  • Pan HD
  • M5 x 12mm

18 ZW26X05000

  • ZW26X05000 - LOCK WASHER

19 ZG22E04000

  • ZG22E04000 - HYD CONNECTOR

20 LC25V00001P1

  • LC25V00001P1 - COCK

21 LC25V00001P1

  • LC25V00001P1 - COCK

22 LC25V00001P2

  • LC25V00001P2 - COCK

23 LC25V00001P2

  • LC25V00001P2 - COCK

24 YY20P01026D2

  • YY20P01026D2 - INSULATING PANEL

25 YN20P01042P1

  • YN20P01042P1 - INSULATING PANEL

26 YN20P01024P1

  • YN20P01024P1 - INSULATING PANEL

27 YF20P01016P1

  • YF20P01016P1 - ELASTIC JOINT

28 YN21C01628D2

  • YN21C01628D2 - INSULATING PANEL

29 YN20P01026P1

  • YN20P01026P1 - INSULATING PANEL

30 YN20P01027P1

  • YN20P01027P1 - INSULATING PANEL

31 HX11Y05020DX

  • HX11Y05020DX - FLEXIBLE HOSE

32 ZC16X01400

  • ZC16X01400 - CLIP

33 YF20P01017P1

  • YF20P01017P1 - U-BRACKET

34 YN20P01040P1

  • YN20P01040P1 - STAY

35 ZM32C12030

  • ZM32C12030 - BOLT

36 ZM32C12025

  • ZM32C12025 - BOLT

37 YF20P01029P1

  • YF20P01029P1 - INSULATING PANEL

38 YF20P01028P1

  • YF20P01028P1 - INSULATING PANEL
