(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

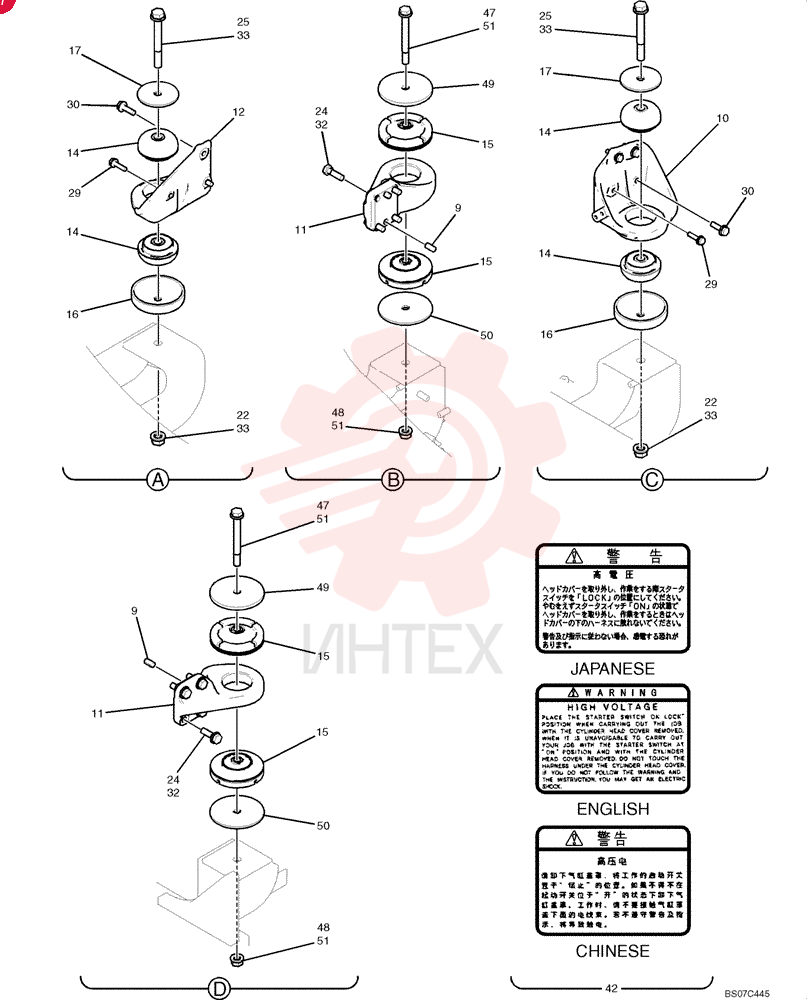

PIN VH950414240A

PIN VH950414240A

PIN VH950414240A

1 VH950414240A

  • VH950414240A - PIN

2 YB02P01019P1

  • YB02P01019P1 - BRACKET

3 YB02P01026P1

  • YB02P01026P1 - BRACKET

4 YB02P01020P1

  • YB02P01020P1 - BRACKET

5 YN02P01095P1

  • YN02P01095P1 - ENGINE MOUNT

6 YB02P01027P1

  • YB02P01027P1 - RUBBER BAND

7 YN02P01062P1

  • YN02P01062P1 - COVER

8 YN02P01088P1

  • YN02P01088P1 - PLATE

9 ZN18C18015

  • ZN18C18015 - NUT

10 ZS18C14045

  • ZS18C14045 - CAP
  • Hex
  • M14 x 45mm

11 ZS18C18150

  • ZS18C18150 - CAP
  • Hex
  • M18 x 150mm

12 ZM73C10040

  • ZM73C10040 - BOLT
  • M10x40mm - Course Thread

13 ZM73C12040

  • ZM73C12040 - BOLT
  • M12x40mm - Course Thread

14 ZW16H14000

  • ZW16H14000 - WASHER

15 ZW16H18000

  • ZW16H18000 - WASHER

16 VH765894090A

  • VH765894090A - PLATE

17 VH765671940A

  • VH765671940A - LABEL

18 VH765672500A

  • VH765672500A - LABEL

19 HS18C16150G2

  • HS18C16150G2 - SCREW

20 ZN18C16013

  • ZN18C16013 - NUT

21 YY02P01009P1

  • YY02P01009P1 - PLATE

22 YY02P01010P1

  • YY02P01010P1 - PLATE

23 ZW16H16000

  • ZW16H16000 - WASHER
