(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

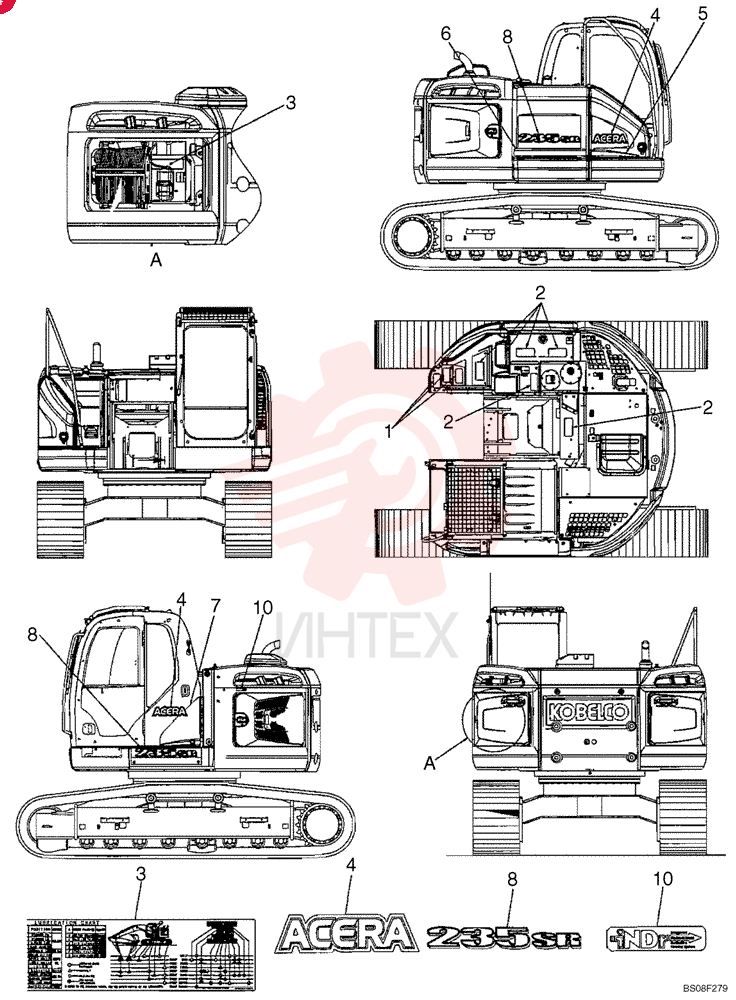

SHEET YB20T01130P1

SHEET YB20T01130P1

SHEET YB20T01130P1

1 YB20T01130P1

  • YB20T01130P1 - SHEET

2 YN20T01282P1

  • YN20T01282P1 - SHEET

3 YF22T00059P1

  • YF22T00059P1 - DECAL

4 YF20T01191P1

  • YF20T01191P1 - LABEL

5 YF20T01192P1

  • YF20T01192P1 - LABEL

6 YF20T01193P1

  • YF20T01193P1 - LABEL

7 YF20T01196P1

  • YF20T01196P1 - LABEL

8 YF20T01183P2

  • YF20T01183P2 - LABEL

9 YF22T00060P1

  • YF22T00060P1 - DECAL
