(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

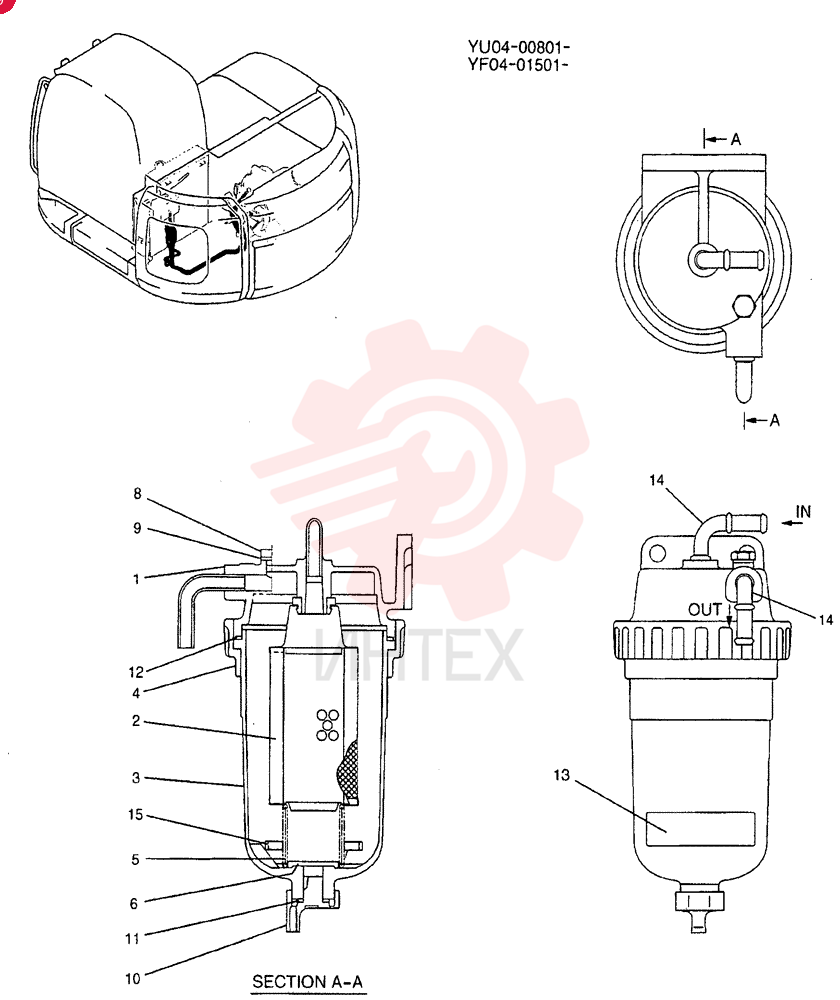

SEPARATOR YF02P01001F2

SEPARATOR YF02P01001F2

SEPARATOR YF02P01001F2

1 YF02P01001F2

  • YF02P01001F2 - SEPARATOR

2 LS02P01012S001

  • LS02P01012S001 - COVER

3 LS02P01012S002

  • LS02P01012S002 - ELEMENT

4 LS02P01012S003

  • LS02P01012S003 - BODY

5 LS02P01012S004

  • LS02P01012S004 - SNAP RING

6 LS02P01012S005

  • LS02P01012S005 - SPRING

7 LS02P01012S006

  • LS02P01012S006 - RETAINER

8 LS02P01012S008

  • LS02P01012S008 - PLUG

9 2446U287S3

  • 2446U287S3 - SEAL

10 LS02P01012S010

  • LS02P01012S010 - PLUG

11 LS02P01012S011

  • LS02P01012S011 - SEAL

12 LS02P01012S012

  • LS02P01012S012 - O-RING

13 LS02P01012S013

  • LS02P01012S013 - LABEL

14 LS02P01012S014

  • LS02P01012S014 - FLEXIBLE JOINT

15 LS02P01012S015

  • LS02P01012S015 - SNAP RING
