New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

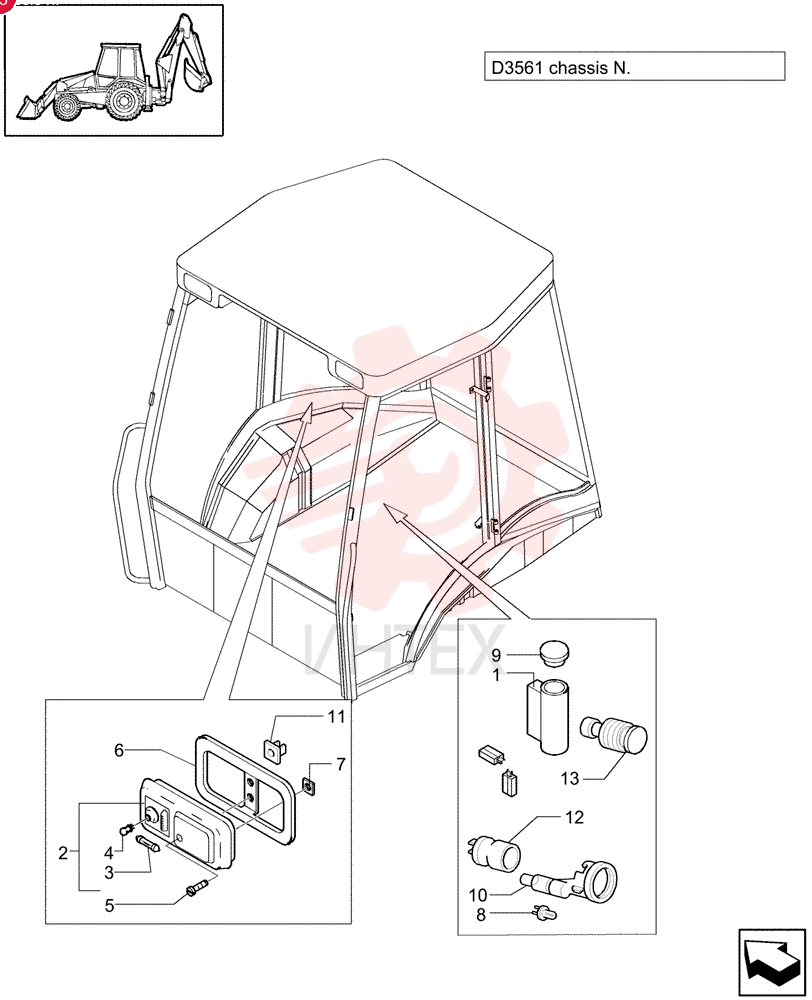

POWER SOCKET 71403846

POWER SOCKET 71403846

POWER SOCKET 71403846

1 71403846

  • 71403846 - POWER SOCKET

2 5141635

  • 5141635 - CEILING LAMP

3 10863090

  • 10863090 - BULB
  • C5W
  • 12V
  • 5W

4 14144190

  • 14144190 - BULB
  • W5W
  • 12V
  • 5W

5 15902604

  • 15902604 - SELF-TAP SCREW
  • Cross Pan Hd
  • M3.5 x 9.50mm

6 85802204

  • 85802204 - BEZEL

7 14183471

  • 14183471 - PLATE

8 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

9 79111978

  • 79111978 - PLUG
  • 23mm OD

10 5148132

  • 5148132 - LAMP SOCKET

11 14215480

  • 14215480 - BLOCK

12 5148131

  • 5148131 - HOUSING

13 5148133

  • 5148133 - CIGARETTE LIGHTER
