New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

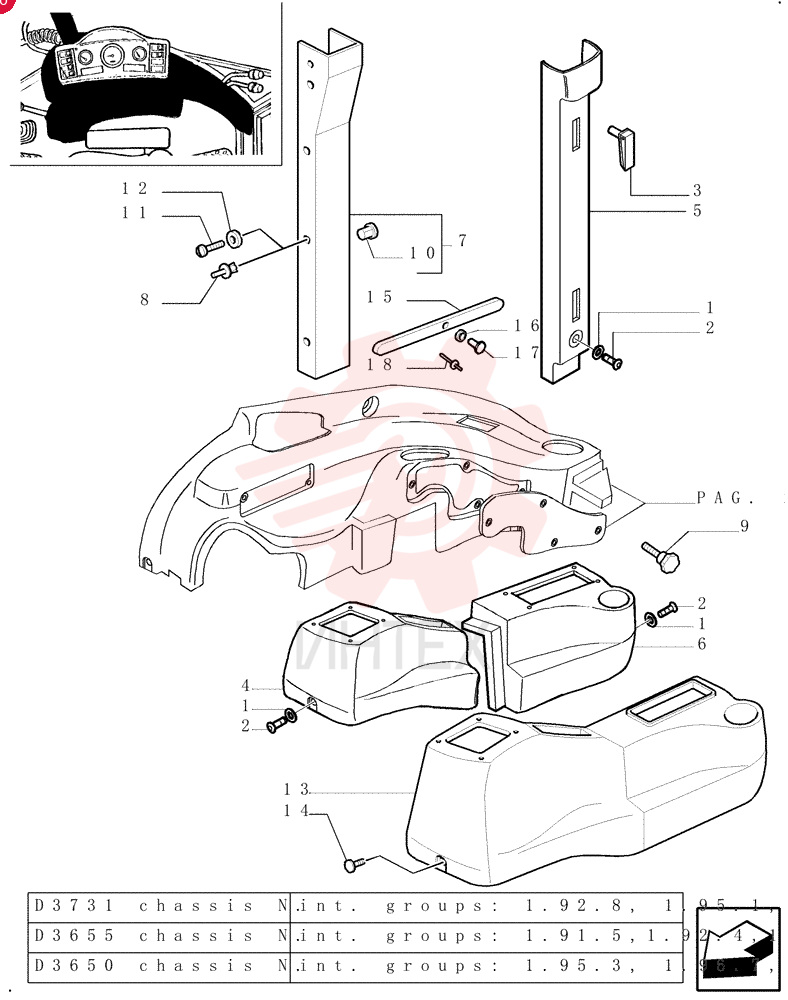

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (3)

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (3)

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (3)

1 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

2 79105220

  • 79105220 - SCREW
  • Phillips Drive
  • Oval HD
  • M6 x 20mm

3 85801848

  • 85801848 - FASTENER

4 85801846

  • 85801846 - COVER

5 85801642

  • 85801642 - SOFT TRIM

6 85801847

  • 85801847 - COVER

7 85805324

  • 85805324 - SOFT TRIM

8 5162852

  • 5162852 - RIVET
  • 7.3mm OD x 12mm L

9 85805323

  • 85805323 - KNOB

10 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

11 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

12 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

13 85805443

  • 85805443 - COVER

14 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

15 83961823

  • 83961823 - STRAP
  • 800mm L

16 12638104

  • 12638104 - WASHER
  • 5.2mm ID x 14mm OD x 1mm Thk

17 85806154

  • 85806154 - RIVET

18 14644790

  • 14644790 - RIVET
