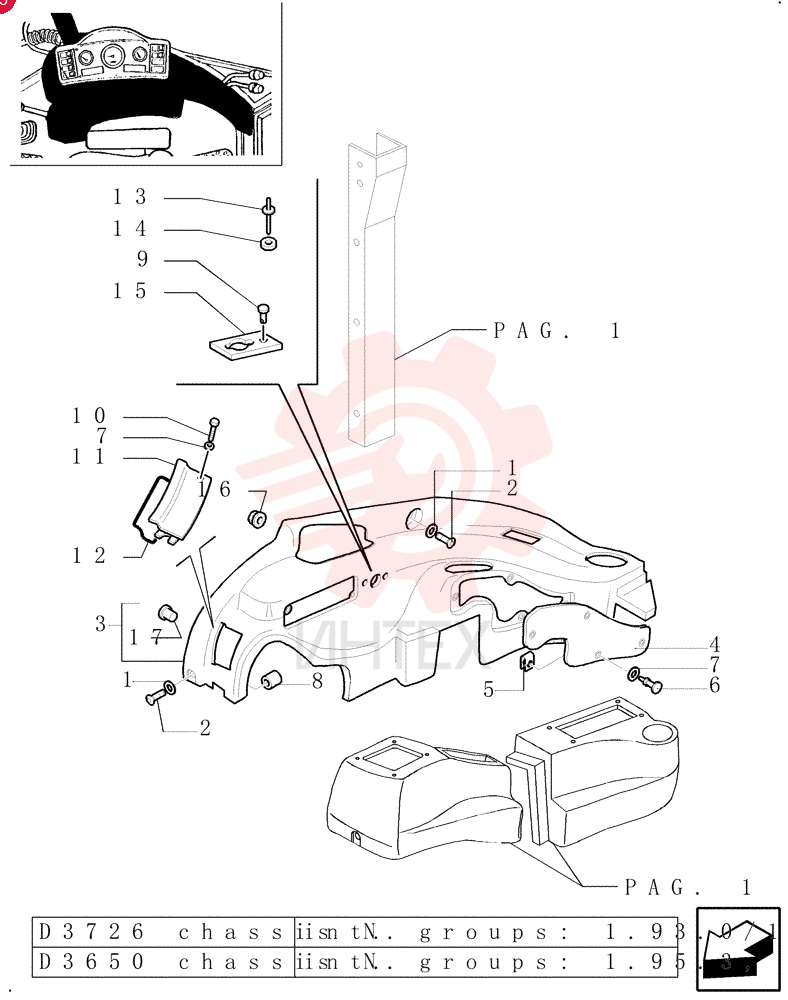

(555E) - TRACTOR LOADER BACKHOE (1/96-)
/
WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (1)

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (1)

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (1)

1 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

2 79105220

  • 79105220 - SCREW
  • Phillips Drive
  • Oval HD
  • M6 x 20mm

3 85801639

  • 85801639 - SOFT TRIM

4 85806056

  • 85806056 - SOFT TRIM

5 85801649

  • 85801649 - SOFT TRIM

6 5154844

  • 5154844 - BRACKET

7 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

8 15693507

  • 15693507 - SCREW
  • Over Head
  • M4.8 x 1.6 x 22mm

9 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

10 85801953

  • 85801953 - RIVET
  • M6

11 10427200

  • 10427200 - RIVET
  • Flat Hd
  • M4 x 5

12 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

13 85806057

  • 85806057 - COVER

14 85805065

  • 85805065 - SEAL

15 14644190

  • 14644190 - RIVET
  • M3.9 x 11.1mm

16 14496204

  • 14496204 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

17 85805888

  • 85805888 - LOCKING PLATE

18 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

19 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L
