(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

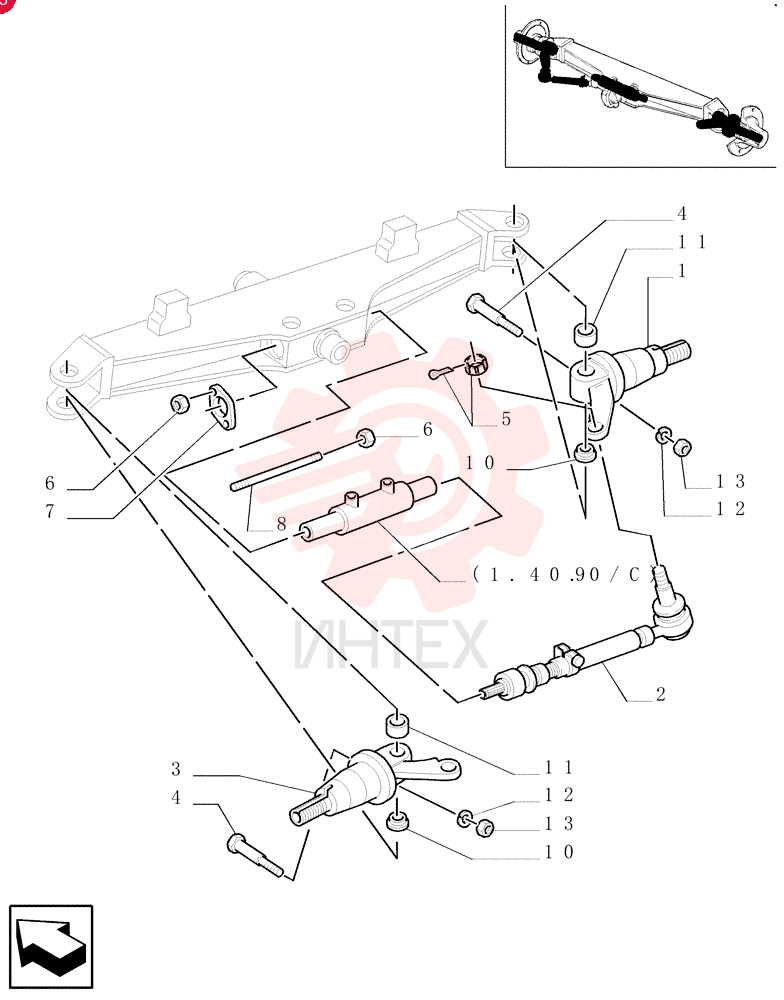

SPINDLE E7NN3105DB (1)

SPINDLE E7NN3105DB (1)

SPINDLE E7NN3105DB (1)

1 E7NN3105DB

  • E7NN3105DB - SPINDLE

2 E7NN3280DA

  • E7NN3280DA - STEERING TIE-ROD

3 9848996

  • 9848996 - KIT

4 9848997

  • 9848997 - KIT

5 E7NN3106DB

  • E7NN3106DB - SPINDLE

6 E4HT3122AA

  • E4HT3122AA - PIN

7 86571703

  • 86571703 - SLOTTED NUT
  • M24 x 1.5

8 N620044S36

  • N620044S36 - NUT

9 82936660

  • 82936660 - PLATE

10 83961743

  • 83961743 - STUD

11 81878546

  • 81878546 - STEERING CYLINDER

12 84313894R

  • 84313894R - REMAN-HYD CYLINDER

13 84313894C

  • 84313894C - CORE-HYD CYLINDER

14 83962799

  • 83962799 - SEAL
  • 46mm ID x 54mm OD x 7.8mm Thk

15 E7NN3123AA

  • E7NN3123AA - BEARING

16 81547

  • 81547 - LOCK WASHER
  • 7/16"

17 50456

  • 50456 - NUT
  • 7/16"-20
  • G5
