New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

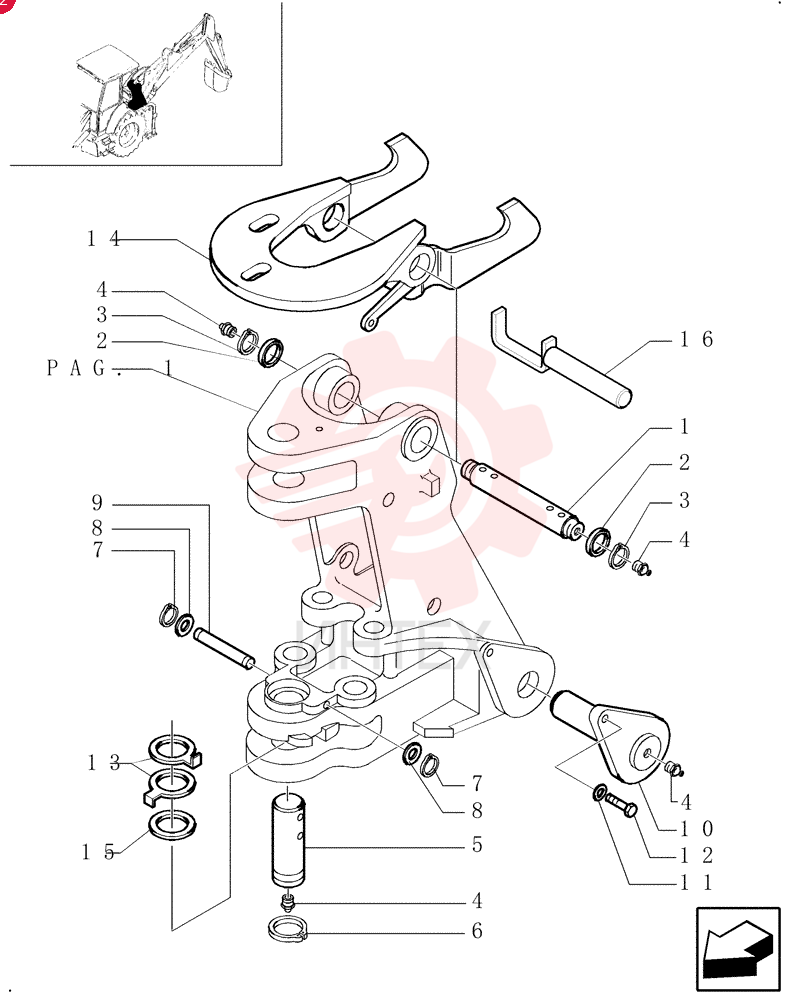

PIN,50mm OD x 302mm L

PIN,50mm OD x 302mm L

PIN,50mm OD x 302mm L

1 85801026

  • 85801026 - PIN
  • 50mm OD x 302mm L

2 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L

3 83911019

  • 83911019 - SNAP RING
  • M45 x 2.88mm Thk
  • Int

4 80710

  • 80710 - LUBE NIPPLE
  • 1/8” – 27 Dryseal PTF

5 85801079

  • 85801079 - PIN
  • 70mm OD x 163mm L

6 85803198

  • 85803198 - RING
  • M7 x 2.5mm Thk
  • Ext

7 85803195

  • 85803195 - SNAP RING
  • 12.9mm ID
  • Ext

8 10523211

  • 10523211 - WASHER
  • 14.4mm ID x 24mm OD x 3mm Thk

9 85803246

  • 85803246 - PIN
  • 14mm OD x 177mm L

10 85802872

  • 85802872 - PIN
  • 55mm OD x 122mm L

11 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk

12 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

13 85801191

  • 85801191 - SPACER
  • 71mm ID x 8mm Thk

14 85801167

  • 85801167 - LOCK

15 8274447

  • 8274447 - SHIM
  • 71mm ID x 130mm OD x 1mm Thk

16 85803797

  • 85803797 - PIN
