New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

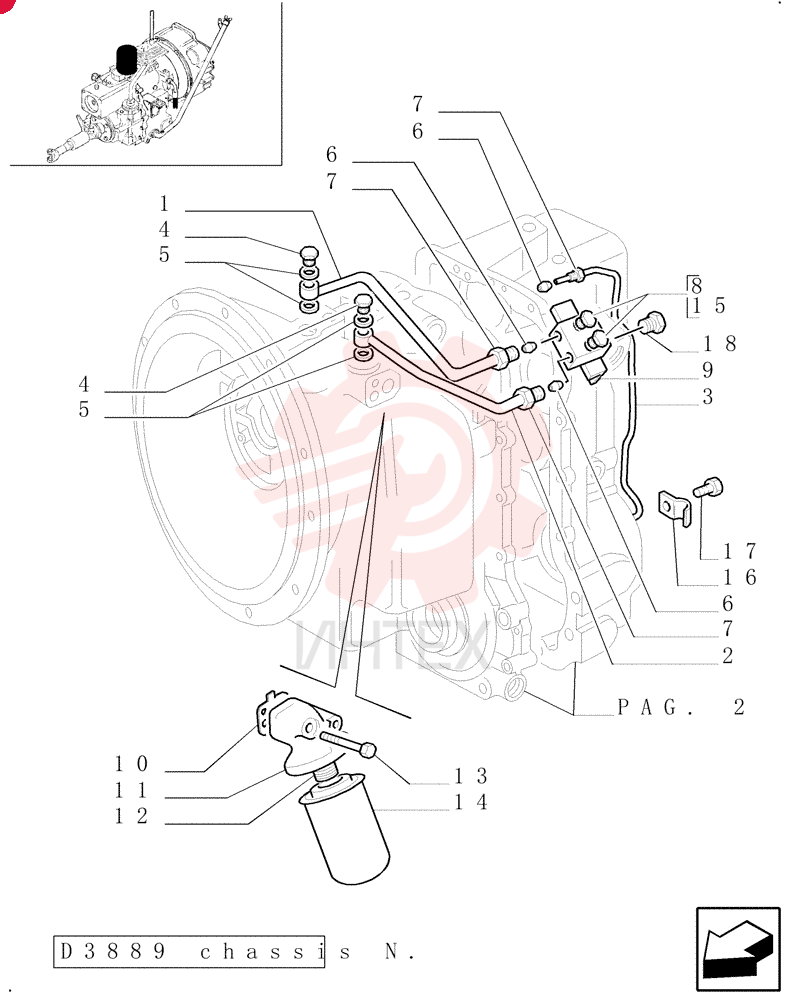

TUBE 9968386

TUBE 9968386

TUBE 9968386

1 9968386

  • 9968386 - TUBE

2 85812086

  • 85812086 - TUBE

3 9968387

  • 9968387 - TUBE

4 85812087

  • 85812087 - TUBE

5 9968337

  • 9968337 - TUBE

6 9968676

  • 9968676 - BANJO BOLT

7 85817002

  • 85817002 - WASHER

8 9968340

  • 9968340 - HYD CONNECTOR

9 9968336

  • 9968336 - NUT

10 9968219

  • 9968219 - PLUG

11 9968385

  • 9968385 - CONNECTING BLOCK

12 85812085

  • 85812085 - CONNECTING BLOCK

13 9968375

  • 9968375 - SEAL

14 9968374

  • 9968374 - FILTER HEAD

15 9968354

  • 9968354 - ADAPTER

16 9968376

  • 9968376 - SCREW

17 9969450

  • 9969450 - HYDRAULIC OIL FILTER

18 9968218

  • 9968218 - SEALING RING

19 9968338

  • 9968338 - CLAMP

20 9968335

  • 9968335 - SCREW

21 85812091

  • 85812091 - PLUG
