New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

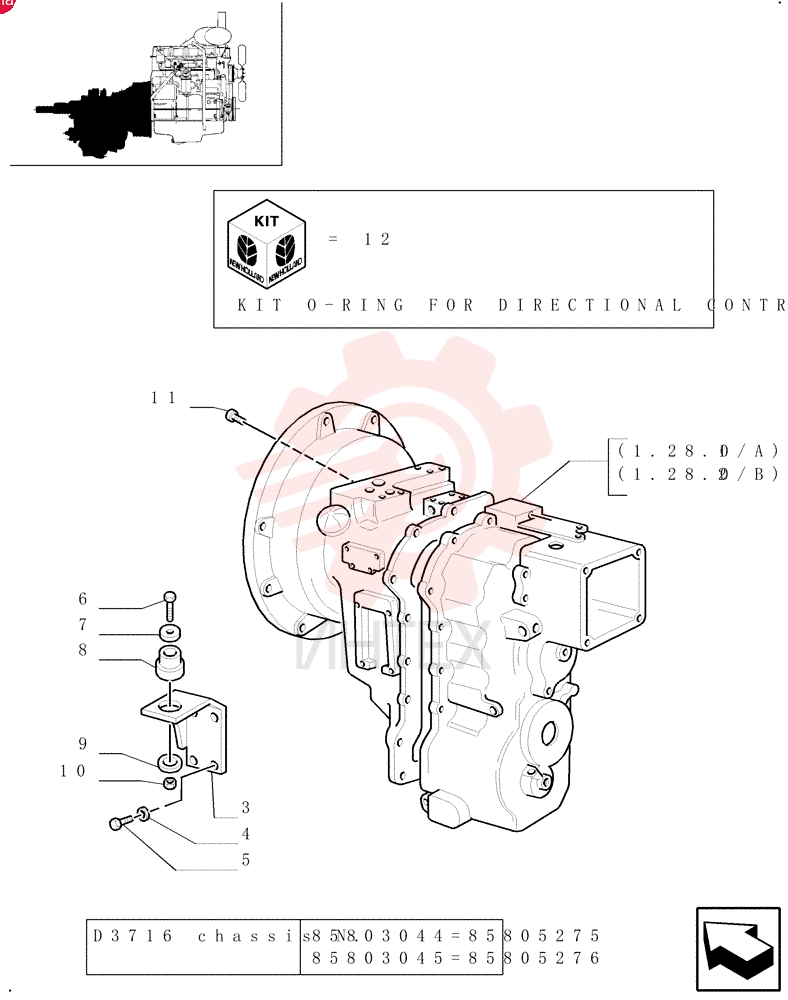

TRANSMISSION 85803045

TRANSMISSION 85803045

TRANSMISSION 85803045

1 85803045

  • 85803045 - TRANSMISSION

2 85805276R

  • 85805276R - REMAN-TRANSMISSION

3 85805276C

  • 85805276C - CORE-TRANSMISSION

4 85805276

  • 85805276 - TRANSMISSION

5 85805276R

  • 85805276R - REMAN-TRANSMISSION

6 85805276C

  • 85805276C - CORE-TRANSMISSION

7 85803044

  • 85803044 - TRANSMISSION

8 85805275R

  • 85805275R - REMAN-TRANSMISSION

9 85805275C

  • 85805275C - CORE-TRANSMISSION

10 85805275

  • 85805275 - TRANSMISSION

11 85805275R

  • 85805275R - REMAN-TRANSMISSION

12 85805275C

  • 85805275C - CORE-TRANSMISSION

13 85805768

  • 85805768 - SUPPORT

14 85805882

  • 85805882 - SUPPORT

15 11198673

  • 11198673 - LOCK WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

16 11112431

  • 11112431 - SCREW
  • Hex
  • M12 x 30mm
  • Cl 10.9
  • Full Thd

17 15541424

  • 15541424 - SCREW
  • Hex
  • M12 x 1.25 x 80mm
  • Cl 8.8

18 85801585

  • 85801585 - SEALING WASHER
  • 13mm ID x 65mm OD x 5mm Thk

19 85804733

  • 85804733 - ISOLATOR
  • 60mm OD x 55.8mm L

20 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

21 16105021

  • 16105021 - LOCK NUT
  • M12 x 1.25
  • Cl 10

22 280259

  • 280259 - BOLT
  • Hex
  • 3/8" - 16 x 2 1/2"
  • Gr 8

23 85806019

  • 85806019 - O-RING KIT
