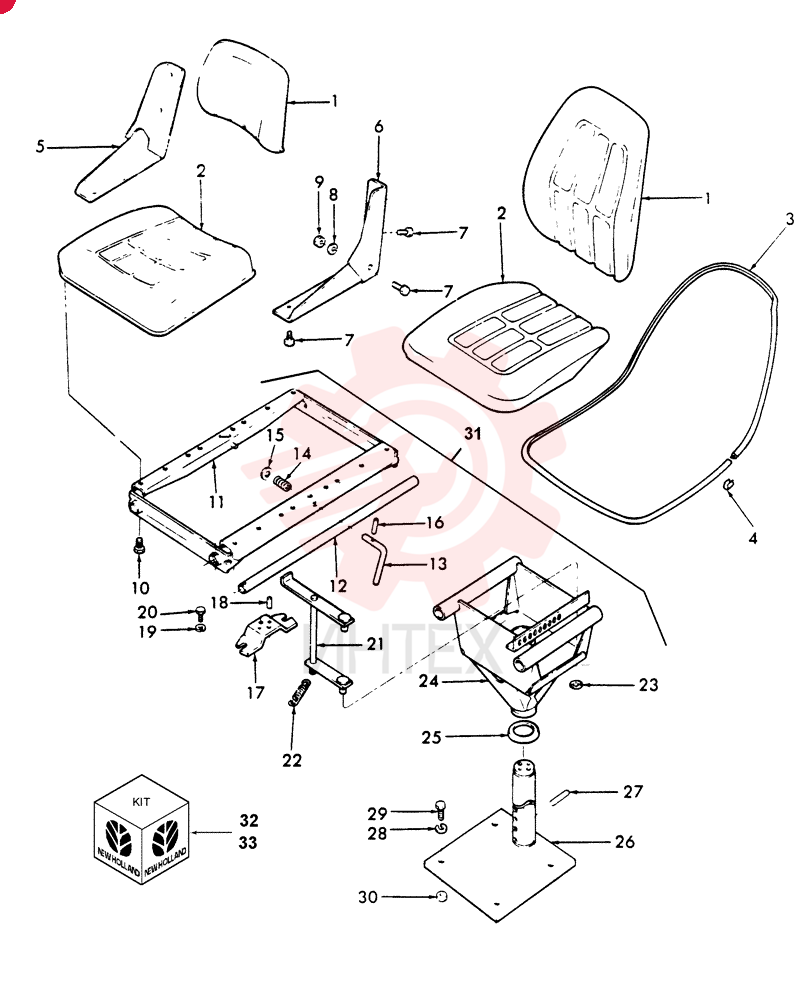

DRIVER SEAT D5NN400B
1 D5NN400B
- D5NN400B - DRIVER SEAT
- Seat Assy.
- Includes: Ref. 1 thru 9
- Years: -31-MAR-82
2 E1NN400AA
- E1NN400AA - DRIVER SEAT
- Seat Assy.
- Includes: Ref. 1 thru 4
- Start Year: 01-APR-82
3 E7NN400BB
- E7NN400BB - DRIVER SEAT
- Seat Assy.
- See Figure 13A02
4 D5NNA401A
- D5NNA401A - SEAT BACK
- Back Assy.
- Years: -31-MAR-82
5 9604163
- 9604163 - SUPPORT
- Kit
- Backrest
- Black Vinyl
- Incl. Backrest
- 1 Clip-Joint
- 6 Clips and Instruction Sheet
- Start Year: 01-APR-82
6 D5NNA402C
- D5NNA402C - SEAT CUSHION
- Cushion Assy.
- Years: -31-MAR-82
7 E2NNA402BA
- E2NNA402BA - SEAT CUSHION
- Cushion Assy.
- Start Year: 01-APR-82
8 E2NNA411AA
- E2NNA411AA - MOLDING
- Start Year: 01-APR-82
9 E2NNA437AA
- E2NNA437AA - CLIP
- Start Year: 01-APR-82
10 PL
- PL - PROCURE LOCALLY
- Rail
- RH
- Years: -31-MAR-82
11 PL
- PL - PROCURE LOCALLY
- Rail
- LH
- Years: -31-MAR-82
12 9627874
- 9627874 - BOLT
- Hex
- 5/16" - 18 x 5/8"
- Gr 5
- Full Thd
- Screw
- Cap
- HH
- G5
- 5/16"-18 x 5/8"
- Years: -31-MAR-82
13 80681
- 80681 - LOCK WASHER
- 5/16"
- Washer
- Lock
- 5/16"
- Years: -31-MAR-82
14 9635082
- 9635082 - NUT
- 5/16" - 18
- Gr 5
- G5
- 5/16"-18
- Years: -31-MAR-82
15 56520S36
- 56520S36 - FLANGE BOLT
- Hex
- 5/16" - 18 x 3/4"
- Gr 5
- BOLT
- FLANGE
- Hex
- 5/16"-18 x 3/4"
- G5
- Start Year: 01-APR-82
16 D5NN427B
- D5NN427B - SUPPORT
17 D5NNC458A
- D5NNC458A - TUBE
18 E8NNC462AA
- E8NNC462AA - HANDLE
19 D5NNC463A
- D5NNC463A - SPRING
20 80702
- 80702 - WASHER
- 0.44" ID x 1" OD x 0.08" Thk
21 E0NND430AA
- E0NND430AA - PIN
- 5/32" x 1"
22 E8NNE417AA
- E8NNE417AA - DRIVER SEAT
- Kit
- Latch
- Includes: Ref. 17 trhu 21
- Germany
23 E8NNE417BA
- E8NNE417BA - DRIVER SEAT
- Kit
- Latch
- Includes: Ref. 17 trhu 21
24 88487
- 88487 - LOCK PIN
- 1/4" x 3/4"
- Slotted
- Pin
- 1/4" x 3/4"
- Slotted
25 80681
- 80681 - LOCK WASHER
- 5/16"
- Washer
- Lock
- 5/16"
26 40936S36
- 40936S36 - SCREW
- Hex Wshr Hd
- 5/16" - 18 x 5/8"
- Self-Tapping
- HWH
- 5/16"-18 x 5/8"
27 E8NNC460AA
- E8NNC460AA - ARM
- Kit
- Arm
28 E8NNC460BA
- E8NNC460BA - ARM
- Kit
- Arm
- Germany
29 E8NNC437AA
- E8NNC437AA - SPRING
30 45055S2
- 45055S2 - NUT
- Spring
- 1/4"
31 D6NNC459A
- D6NNC459A - SUPPORT
- Assy.
- Years: -31-MAR-82
32 D8NNC459AA
- D8NNC459AA - SUPPORT
- Assy.
- Start Year: 01-APR-82
33 D6NNN425A
- D6NNN425A - WASHER
34 D6NNC457A
- D6NNC457A - PLATE
- Assy.
- Years: -31-MAR-82
35 E8NNC457AA
- E8NNC457AA - BASE
- Plate Assy.
- Start Year: 01-APR-82
36 D5NNN427A
- D5NNN427A - PIN
37 80679
- 80679 - LOCK WASHER
- 1/20.507 CST ZND
- WASHER
- LOCK
- 1/2"
38 87689
- 87689 - BOLT
- 1/2"-13 x 1.813" OAL
- Gr 5
39 280431
- 280431 - NUT
- 1/2"-13
- G5
40 D6NN418A
- D6NN418A - BRACKET
- Assy.
- Includes: Ref. 11 thru 27
- Years: -31-MAR-82
41 D8NN418CB12L
- D8NN418CB12L - BRACKET
- Assy.
- Includes: Ref. 11 thru 27
- Start Year: 01-APR-82
42 19776
- 19776 - LEVER
- Kit
- Seat Belt
- Includes: Ref. 32A thru 32E
43 82014400
- 82014400 - SAFETY BELT
- 2.00" W
- SAFETY BELT
- 2.00" W
44 D2NN94610N03A
- D2NN94610N03A - SPACER
45 86050212
- 86050212 - BOLT
- Hex
- 7/16" - 14 x 1 1/2"
- Gr 8
- Screw
- Cap
- HH
- G8
- 7/16"-14 x 1-1/2"
46 81541
- 81541 - WASHER
- 0.5" ID x 1.25" OD x 0.08" Thk
47 280980
- 280980 - NUT
- 7/16"-14
- GC
- Nut
- Lock
- GC
- 7/16"-14
48 19784
- 19784 -
- Kit
- Seat Belt
- Includes: Ref. 33A thru 33D
49 E3NN94610N02AB
- E3NN94610N02AB - SAFETY BELT
- SAFETY BELT
- 3" Wide
- Not Retractable
50 D5NNC470A
- D5NNC470A - SPACER
51 9849940
- 9849940 - BOLT
- Hex
- 9/16" - 12 x 1 3/4"
- Gr 5
- Screw
- Cap
- HH
- G5
- 9/16"-12 x 1-3/4"
52 280328
- 280328 - NUT
- 9/16"-12
- GB
- Nut
- Lock
- GB
- 9/16"-12
