(655) - 4 CYL TRACTOR LOADER BACKHOE (7/85-10/88)
/

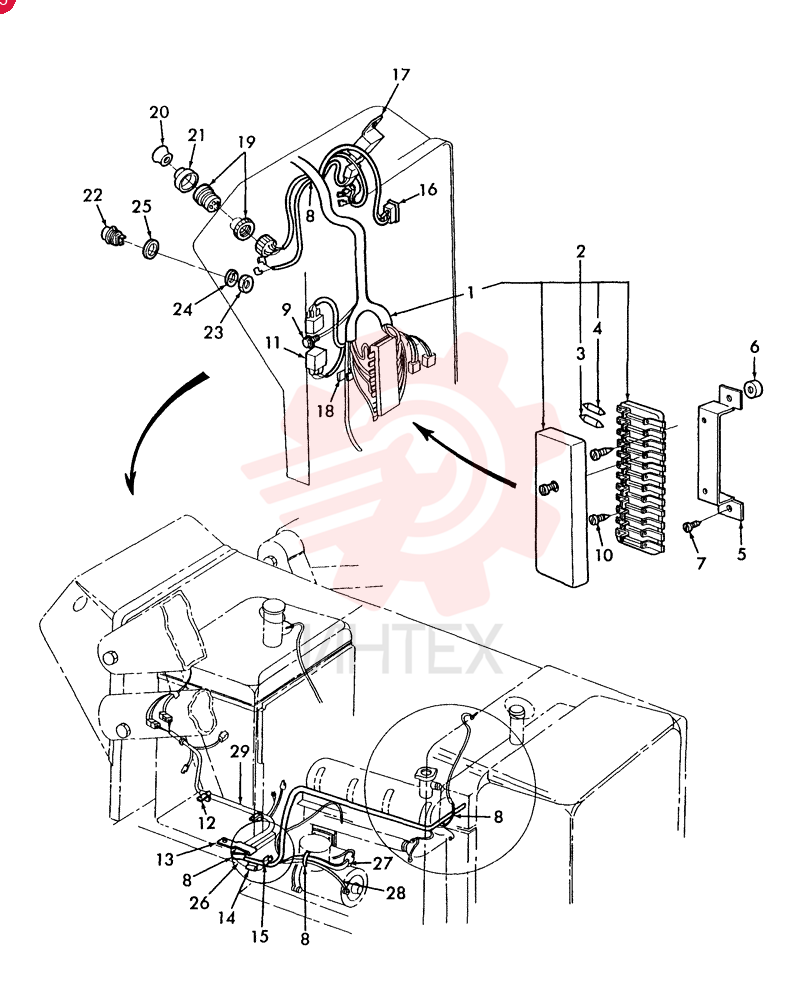

WIRE HARNESS E6NN14N104EA

WIRE HARNESS E6NN14N104EA

WIRE HARNESS E6NN14N104EA

1 E6NN14N104EA

  • E6NN14N104EA - WIRE HARNESS
  • Harness Assy
  • Rear
  • Includes: Ref 2
  • 3 & 4
  • Start Year: 01-MAR-88

2 D5NN14N030C

  • D5NN14N030C - BOX
  • Assy
  • Includes: Ref 3 & 4
  • Start Year: 01-MAR-88

3 D2NN14A094A

  • D2NN14A094A - FUSE
  • Assy
  • 5 Amp
  • Start Year: 01-MAR-88

4 C5NN14A094D

  • C5NN14A094D - FUSE
  • Assy
  • 8 Amp
  • Start Year: 01-MAR-88

5 D5NN14A094A

  • D5NN14A094A - FUSE
  • Assy
  • 16 Amp
  • Start Year: 01-MAR-88

6 D5NN14N072A12B

  • D5NN14N072A12B - BRACKET
  • Start Year: 01-MAR-88

7 359526S36

  • 359526S36 - SPACER
  • 17/64" ID x 3/4" OD x 29/64"
  • Start Year: 01-MAR-88

8 42380S43B

  • 42380S43B - SCREW
  • Self-Tapping
  • HWH
  • #8-18 x 3/4"
  • Start Year: 01-MAR-88

9 263117

  • 263117 - CABLE TIE
  • 292.1mm L
  • Nylon
  • Black
  • Strap
  • Cable
  • .14 x 11 1/2" L
  • Start Year: 01-MAR-88

10 382369S36

  • 382369S36 - BOLT
  • Hex Wshr Hd
  • 1/4" - 20 x 1/2"
  • 1/4"-20 x 1/2"
  • Start Year: 01-MAR-88

11 380923S2

  • 380923S2 - SELF-TAP SCREW
  • Screw
  • #8-18 x .62"
  • Start Year: 01-MAR-88

12 D7NN15N320B

  • D7NN15N320B - SWITCH
  • REMOTE CONTR
  • Relay Assy
  • Start Year: 01-MAR-88

13 D9NN14N101AA

  • D9NN14N101AA - BRACKET
  • Assy
  • Start Year: 01-MAR-88

14 N801351S100

  • N801351S100 - CLIP
  • Start Year: 01-MAR-88

15 D5NN9N130C

  • D5NN9N130C - TUBE
  • Channel
  • Start Year: 01-MAR-88

16 82015330

  • 82015330 - BUMPER
  • 2-1/2" Lg
  • Start Year: 01-MAR-88

17 73LB13713AA

  • 73LB13713AA - SWITCH ASSY
  • Dome Light
  • Start Year: 01-MAR-88

18 D8NN13N360AC

  • D8NN13N360AC - FLASHER UNIT
  • Flasher Assy
  • 6 Terminals
  • Start Year: 01-MAR-88

19 81807113

  • 81807113 - CLIP
  • Start Year: 01-MAR-88

20 D6NN13A350A

  • D6NN13A350A - SWITCH ASSY
  • Emergency
  • Start Year: 01-MAR-88

21 81824213

  • 81824213 - KNOB
  • Europe
  • Start Year: 01-MAR-88

22 D5NN13R315A

  • D5NN13R315A - BOOT
  • Start Year: 01-MAR-88

23 E5NN13A805AA

  • E5NN13A805AA - BUTTON
  • Assy
  • Horn
  • Start Year: 01-MAR-88

24 E62A11502

  • E62A11502 - NUT
  • Start Year: 01-MAR-88

25 E62A11503

  • E62A11503 - WASHER
  • Lock
  • Start Year: 01-MAR-88

26 E62A11504

  • E62A11504 - WASHER
  • Start Year: 01-MAR-88

27 F0NN14300EA

  • F0NN14300EA - CABLE
  • Assy
  • Battery
  • Positive
  • Start Year: 01-MAR-88

28 83903885

  • 83903885 - COVER
  • (Replaces D5NN14277B)
  • Start Year: 01-MAR-88

29 F0NN14301FA

  • F0NN14301FA - CABLE
  • Assy
  • Ground
  • Start Year: 01-MAR-88

30 E4NN14A103GD

  • E4NN14A103GD - WIRE HARNESS
  • Harness Assy
  • Front
  • Start Year: 01-MAR-88
