(655) - 4 CYL TRACTOR LOADER BACKHOE (7/85-10/88)
/

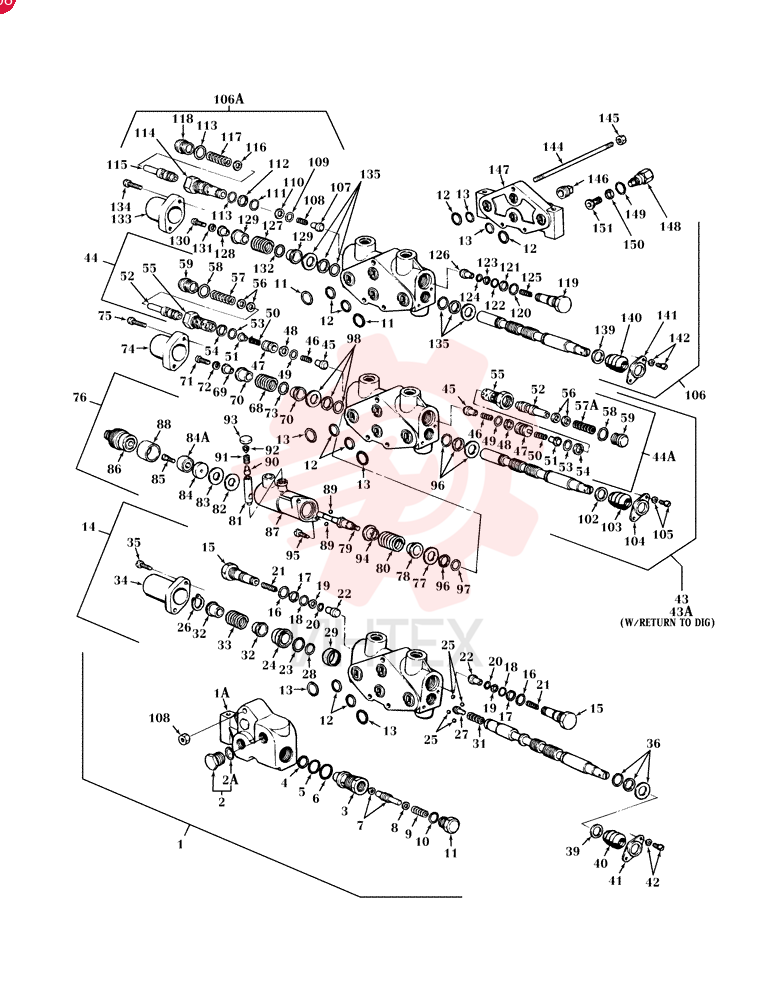

HYDRAULIC VALVE D7NNF893B

HYDRAULIC VALVE D7NNF893B

HYDRAULIC VALVE D7NNF893B

1 D7NNF893B

  • D7NNF893B - HYDRAULIC VALVE
  • Valve Assy.
  • Includes: Ref. 1A thru 11
  • Years: -31-MAR-78

2 D8NNF893BA29Z

  • D8NNF893BA29Z - HYDRAULIC VALVE
  • Valve Assy.
  • Includes: Ref. 1A thru 11
  • Years: 01-APR-78-31-DEC-83

3 D7NNF893D12Z

  • D7NNF893D12Z - HYDRAULIC VALVE
  • Valve Assy.
  • 4 in 1 & Return to Dig
  • Includes: Ref. 1A thru 11
  • Years: -31-MAR-78

4 D8NNF893DA12Z

  • D8NNF893DA12Z - HYDRAULIC VALVE
  • Valve Assy.
  • 4 in 1 & Return to Dig
  • Includes: Ref. 1A thru 11
  • Years: 01-APR-78-31-DEC-83

5 E2NNF893DD

  • E2NNF893DD - HYDRAULIC VALVE
  • Valve Assy.
  • Includes: Ref. 1A thru 11
  • Years: 01-JAN-84-31-JAN-88

6 E7NNF893BA

  • E7NNF893BA - HYDRAULIC VALVE
  • Valve Assy.
  • Includes: Ref. 1A thru 11
  • Start Year: 01-FEB-88

7 D8NNM964CB

  • D8NNM964CB - HYDRAULIC VALVE
  • Plate
  • LH
  • Years: -31-DEC-83

8 E3NNC824AA

  • E3NNC824AA - PLATE
  • LH
  • Years: 01-JAN-84-31-JAN-88

9 E8NNC824AA

  • E8NNC824AA - PLATE
  • LH
  • Start Year: 01-FEB-88

10 163410

  • 163410 - PLUG
  • 1-1/16" - 12 ORB
  • Hex
  • 1-1/16"-12
  • Includes: Ref. 2A
  • Years: -31-DEC-83

11 167266

  • 167266 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro
  • 12-1
  • 90 Duro
  • .924 ID x .116" Thk

12 D8NNM964CB

  • D8NNM964CB - HYDRAULIC VALVE
  • Relief Valve Assy.
  • Includes: Ref. 4 thru 11
  • Years: -31-MAR-78

13 D8NNM965DA

  • D8NNM965DA - HYDRAULIC VALVE
  • Relief Valve Assy.
  • Includes: Ref. 4 thru 11
  • Years: 01-APR-78-31-DEC-83

14 E3NNM965AA

  • E3NNM965AA - HYDRAULIC VALVE
  • Valve
  • Relief
  • Includes: Ref. 4 thru 11
  • Years: 01-JAN-84-31-JAN-88

15 E8NNM965AA

  • E8NNM965AA - VALVE PRESSURE RELIE
  • Relief Valve Assy.
  • Includes: Ref. 4 thru 11
  • Start Year: 01-FEB-88

16 V708T104

  • V708T104 - O-RING

17 C5NNC801A

  • C5NNC801A - SEAL
  • Back-Up
  • Years: -31-JAN-88

18 598336

  • 598336 - SET SCREW
  • Back-Up
  • 1.006" ID x .050" Thk
  • Start Year: 01-FEB-88

19 C5NNC837A

  • C5NNC837A - SEAL
  • Sleeve

20 293012

  • 293012 - HYDRAULIC VALVE
  • Poppet Assy.

21 359828S

  • 359828S - WASHER
  • .025" (.635mm) Thick

22 517567

  • 517567 - SHIM
  • .010" Thk

23 D7NNC498A

  • D7NNC498A - SPRING
  • Years: -31-JAN-88

24 D6NNM882B

  • D6NNM882B - SPRING
  • Start Year: 01-FEB-88

25 517563

  • 517563 - CAP

26 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro
  • 10-1
  • 90 Duro
  • .755" ID x .097" Thk

27 511356

  • 511356 - O-RING
  • 0.07" Thk x 0.801" ID
  • -19
  • Cl 5
  • 75 Duro
  • .801" ID x .070" Thk

28 274727

  • 274727 - O-RING
  • 0.07" Thk x 0.926" ID
  • -21
  • Cl 5
  • 75 Duro
  • .926" ID x .070" Thk

29 D8NNL874CB

  • D8NNL874CB - HYD VALVE SECTION
  • Section Assy.
  • 4 Way Float
  • Includes: Ref. 15
  • Years: -31-DEC-83

30 E3NNL874AB

  • E3NNL874AB - HYD VALVE SECTION
  • Section Assy.
  • 4 Way Float
  • Includes: Ref. 15
  • Start Year: 01-JAN-84

31 D8NNK879AA

  • D8NNK879AA - PLUG
  • Assy.
  • Includes: Ref. 16 thru 20

32 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro
  • 10-1
  • 90 Duro
  • .755" ID x .097" Thk

33 C5NNC813A

  • C5NNC813A - BACK-UP RING
  • Back-Up

34 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
  • -016
  • 90 Duro
  • .614" ID x .070" Thk

35 C5NNC812A

  • C5NNC812A - WASHER
  • Back-Up

36 165212

  • 165212 - O-RING
  • 0.551" ID x 0.691" OD x 0.07"
  • 90 Duro
  • .551" ID x .070" Thk

37 C5NNC806A

  • C5NNC806A - SPRING

38 82001890

  • 82001890 - POPPET
  • Check
  • Relief

39 C5NNC837A

  • C5NNC837A - SEAL
  • Sleeve

40 D8NNK888AA

  • D8NNK888AA - SLEEVE

41 63290

  • 63290 - BALL
  • 7/32"

42 515259

  • 515259 - SNAP RING
  • #62
  • Ext
  • Ring
  • Snap
  • #62
  • Ext

43 C5NND800A

  • C5NND800A - IDLER PINION
  • Follower

44 7700244

  • 7700244 - SEALING RING

45 D8NNM969AA

  • D8NNM969AA - SLEEVE

46 C5NNC807A

  • C5NNC807A - SPRING

47 V21107

  • V21107 - SEALING RING COLLAR
  • Collar

48 E3NNS988AB

  • E3NNS988AB - SPRING
  • Years: -31-DEC-83

49 E3NNK867AA

  • E3NNK867AA - SPRING
  • Start Year: 01-JAN-84

50 C5NNC818B

  • C5NNC818B - COVER
  • Bonnet
  • Years: -31-DEC-83

51 E3NNC818AA

  • E3NNC818AA - VALVE COVER
  • Bonnet
  • Start Year: 01-JAN-84

52 43403S8

  • 43403S8 - SCREW

53 7707105

  • 7707105 - SEAL
  • Spool Seal Assy.

54 D4NNL873A

  • D4NNL873A - WASHER
  • Breather

55 D4NNL876A

  • D4NNL876A - BOOT

56 D4NNL877A

  • D4NNL877A - RETAINER
  • Boot

57 7708213

  • 7708213 - SCREW
  • Fillister
  • Washer
  • 1/4" - 20 x 5/8"
  • Fillister Hd.
  • 1/4"-20 x 5/8"

58 F0NNL872AA

  • F0NNL872AA - HYD VALVE SECTION
  • Section Assy.
  • 4-Way & Cylinder Relief
  • Standard

59 E3NNL872AC

  • E3NNL872AC - KNIFE SECTION
  • Section Assy.
  • 4 Way & Circuit Relief
  • Return to Dig
  • Includes: Ref. 44 thru 59
  • 76 thru 95
  • 96 & 98

60 D6NNK876B

  • D6NNK876B - HYDRAULIC VALVE
  • Valve Assy.
  • 1100 PSI
  • Includes: Ref. 45 thru 59

61 F0NNK876AA

  • F0NNK876AA - VALVE PRESSURE RELIE
  • Valve
  • Relief
  • 3500 PSI
  • Includes: Ref. 45 thru 59

62 D8NNK876AA

  • D8NNK876AA - HYDRAULIC VALVE
  • Valve Assy.
  • 2300 PSI
  • Includes: Ref. 45 thru 59

63 7708224

  • 7708224 - HYDRAULIC VALVE
  • Poppet

64 527286

  • 527286 - SPRING

65 7708226

  • 7708226 - RETAINER
  • Years: -31-JUL-75

66 527288

  • 527288 - RETAINER
  • Start Year: 01-AUG-75

67 C5NNC812A

  • C5NNC812A - WASHER
  • Back-Up

68 165212

  • 165212 - O-RING
  • 0.551" ID x 0.691" OD x 0.07"
  • 90 Duro
  • .551" ID x .070" Thk

69 7708223

  • 7708223 - SPRING
  • Years: -31-JUL-75

70 527285

  • 527285 - SPRING
  • Start Year: 01-AUG-75

71 7708222

  • 7708222 - POPPET
  • Years: -31-JUL-75

72 527284

  • 527284 - HYDRAULIC VALVE
  • Poppet
  • Start Year: 01-AUG-75

73 293012

  • 293012 - HYDRAULIC VALVE
  • Poppet Assy.

74 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
  • -016
  • 90 Duro
  • .614" ID x .070" Thk

75 C5NNC813A

  • C5NNC813A - BACK-UP RING
  • Back-Up

76 NS

  • NS - NOT SERVICED
  • Body

77 359828S

  • 359828S - WASHER
  • .025 Thick (.635mm)

78 517567

  • 517567 - SHIM
  • .010" Thk

79 D7NNC498A

  • D7NNC498A - SPRING
  • 2200 PSI
  • Years: -31-JUL-76

80 D6NNM882A

  • D6NNM882A - SPRING
  • 1100 PSI
  • Start Year: 01-AUG-76

81 D6NNM882B

  • D6NNM882B - SPRING
  • 3500 PSI

82 D7NNC498A

  • D7NNC498A - SPRING
  • 2300 PSI

83 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro
  • 10-1
  • 90 Duro
  • .755" ID x .097" Thk

84 517563

  • 517563 - CAP

85 E3NNS988AB

  • E3NNS988AB - SPRING
  • Years: -31-DEC-83

86 E3NNS988AB

  • E3NNS988AB - SPRING
  • Use with Ref. 43
  • Years: 01-JAN-84-31-MAY-85

87 E3NNK867BA

  • E3NNK867BA - SPRING
  • Use with Ref. 43A
  • Years: 01-JAN-84-31-MAY-85

88 E3NNS988AB

  • E3NNS988AB - SPRING
  • Retainer
  • Standard

89 527294

  • 527294 - SEALING RING COLLAR
  • Collar
  • Standard

90 C5NNC838A

  • C5NNC838A - SCREW
  • 5/16" - 18 x 7/8"
  • Full Thd
  • Dog Pt
  • Standard

91 C5NNC836A

  • C5NNC836A - LOCK WASHER
  • Washer
  • Lock
  • 5/16"
  • Standard

92 7700243

  • 7700243 - SEALING RING
  • Standard

93 E4NNC818AA

  • E4NNC818AA - VALVE COVER
  • Bonnet
  • Standard

94 43403S8

  • 43403S8 - SCREW
  • Standard

95 0C

  • 0C - ORDER COMPONENTS
  • Positioner Assy.
  • Return to Dig
  • Includes: Ref. 77 thru 95
  • Years: -31-JUL-75

96 9806692

  • 9806692 - RETAINER

97 7708233

  • 7708233 - SEALING RING COLLAR
  • Collar

98 7708234

  • 7708234 - COVER PLATE
  • Spud
  • Years: -31-DEC-83

99 E3NNS987AA

  • E3NNS987AA - STUD
  • Spud
  • Start Year: 01-JAN-84

100 E3NNK867BA

  • E3NNK867BA - SPRING

101 7708236

  • 7708236 - SLEEVE

102 7708237

  • 7708237 - SPRING
  • Washer
  • Spring
  • Years: -31-JUL-75

103 7708238

  • 7708238 - WASHER
  • Years: -31-JUL-75

104 D6NNM874A

  • D6NNM874A - WASHER
  • Years: 01-AUG-75-31-JUL-76

105 7708239

  • 7708239 - ARMATURE
  • Years: -31-JUL-75

106 D9NNM879AA

  • D9NNM879AA - ARMATURE
  • Start Year: 01-AUG-75

107 D6NNM880A

  • D6NNM880A - WASHER
  • Start Year: 01-AUG-75

108 D6NNM881A

  • D6NNM881A - SCREW

109 7708241

  • 7708241 - ELECTROMAGNET
  • Plug Assy.
  • Years: -31-JUL-75

110 D9NNM876AB

  • D9NNM876AB - PLUG
  • Assy.
  • Electro Magnet
  • Start Year: 01-AUG-75

111 NLS

  • NLS - NO LONGER SERVICED
  • Connector
  • Start Year: 01-AUG-75

112 7708248

  • 7708248 - SCREW
  • Start Year: 01-AUG-75

113 7708249

  • 7708249 - SPARE PART
  • Bonnet
  • Years: -31-JUL-75

114 D6NNM872B

  • D6NNM872B - SUMP
  • Bonnet
  • Start Year: 01-AUG-75

115 7708250

  • 7708250 - SPACER
  • Years: -31-JUL-75

116 7708251

  • 7708251 - BALL
  • Steel
  • 5/32"

117 7708252

  • 7708252 - IDLER PINION
  • Follower

118 7708253

  • 7708253 - SPRING

119 D5NNL957A

  • D5NNL957A - SCREW
  • Hex
  • 5/16"-24 x .312"

120 7708255

  • 7708255 - CAP COVER
  • Cap
  • Seal

121 V21107

  • V21107 - SEALING RING COLLAR
  • Collar

122 43403S8

  • 43403S8 - SCREW
  • Years: -31-DEC-83

123 7702863

  • 7702863 - SCREW
  • 1/4" - 20 x 7/8"
  • Cap
  • SH
  • 1/4"-20 x .875"
  • Start Year: 01-JAN-84

124 7707107

  • 7707107 - WASHER
  • Serial Range: Return-Dig

125 9706714

  • 9706714 - O-RING
  • 0.139" Thk x 0.734" ID
  • -210
  • Cl 5
  • 75 Duro
  • .734" ID x .139" Thk

126 7707105

  • 7707105 - SEAL
  • Spool Seal Assy.

127 D4NNL873A

  • D4NNL873A - WASHER

128 D4NNL876A

  • D4NNL876A - BOOT

129 D4NNL877A

  • D4NNL877A - RETAINER

130 7708213

  • 7708213 - SCREW
  • Fillister
  • Washer
  • 1/4" - 20 x 5/8"
  • Fillister Hd.
  • 1/4"-20 x 5/8"

131 E3NNL871AB

  • E3NNL871AB - KNIFE SECTION
  • Section Assy.
  • 4-Way & Anti-Cavitation
  • Includes: Ref. 106A

132 7707121

  • 7707121 - HYDRAULIC VALVE
  • Relief Valve Assy.
  • Includes: Ref. 107 thru 118

133 82001890

  • 82001890 - POPPET
  • Check
  • Relief

134 C5NNC806A

  • C5NNC806A - SPRING

135 165212

  • 165212 - O-RING
  • 0.551" ID x 0.691" OD x 0.07"
  • 90 Duro
  • .551" ID x .070" Thk

136 C5NNC812A

  • C5NNC812A - WASHER
  • Back-Up

137 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
  • -016
  • 90 Duro
  • .614" ID x .070" Thk

138 C5NNC813A

  • C5NNC813A - BACK-UP RING
  • Back-Up

139 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro
  • 10-1
  • 90 Duro
  • .755" ID x .097" Thk

140 NSS

  • NSS - NOT SOLD SEPARAT
  • Body

141 293012

  • 293012 - HYDRAULIC VALVE
  • Poppet Assy.

142 359828S

  • 359828S - WASHER
  • .025 (.635mm) Thick

143 517567

  • 517567 - SHIM
  • .010" Thk

144 7001502

  • 7001502 - SPRING

145 517563

  • 517563 - CAP

146 D8NNK879AA

  • D8NNK879AA - PLUG
  • Assy.
  • Includes: Ref. 120 thru 126

147 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro
  • 10-1
  • 90 Duro
  • .755" ID x .097" Thk

148 C5NNC813A

  • C5NNC813A - BACK-UP RING
  • Back-Up

149 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
  • -016
  • 90 Duro
  • .614" ID x .070" Thk

150 C5NNC812A

  • C5NNC812A - WASHER
  • Back-Up

151 165212

  • 165212 - O-RING
  • 0.551" ID x 0.691" OD x 0.07"
  • 90 Duro
  • .551" ID x .070" Thk

152 C5NNC806A

  • C5NNC806A - SPRING

153 82001890

  • 82001890 - POPPET
  • Check Assy.

154 E3NNS988AB

  • E3NNS988AB - SPRING

155 FP535

  • FP535 - RETAINER
  • Start Year: 01-JAN-78

156 527294

  • 527294 - SEALING RING COLLAR
  • Collar

157 C5NNC838A

  • C5NNC838A - SCREW
  • 5/16" - 18 x 7/8"
  • Full Thd
  • Dog Pt

158 C5NNC836A

  • C5NNC836A - LOCK WASHER
  • Washer
  • Lock
  • 5/16"

159 7700243

  • 7700243 - SEALING RING

160 E4NNC818AA

  • E4NNC818AA - VALVE COVER
  • Bonnet

161 43403S8

  • 43403S8 - SCREW

162 7707105

  • 7707105 - SEAL
  • Seal Assy.

163 D4NNL873A

  • D4NNL873A - WASHER

164 D4NNL876A

  • D4NNL876A - BOOT

165 D4NNL877A

  • D4NNL877A - RETAINER

166 7708213

  • 7708213 - SCREW
  • Fillister
  • Washer
  • 1/4" - 20 x 5/8"
  • Fillister Hd.
  • 1/4"-20 x 5/8"

167 D9NNK900BA

  • D9NNK900BA - BOLT
  • Stud
  • 3/8"-24 x 8"

168 86509310

  • 86509310 - NUT
  • 3/8" - 24
  • Gr 5
  • G5
  • 3/8"-24
  • Years: -31-MAR-79

169 86509310

  • 86509310 - NUT
  • 3/8" - 24
  • Gr 5
  • G5
  • 3/8"-24
  • Start Year: 01-APR-79

170 87675S15

  • 87675S15 - PLUG

171 7708229

  • 7708229 - PLATE
  • Assy.
  • Includes: Ref. 148
  • Years: -31-DEC-83

172 E2NNP837AA

  • E2NNP837AA - KNIFE SECTION
  • Plate Assy.
  • Includes: Ref. 148
  • Years: 01-JAN-84-31-JAN-88

173 7708229

  • 7708229 - PLATE
  • Assy.
  • Includes: Ref. 148
  • Start Year: 01-FEB-88

174 E2NNS972AA

  • E2NNS972AA - SLEEVE
  • Assy.
  • Includes: Ref. 149 thru 151
  • Start Year: 01-JAN-84

175 89626929

  • 89626929 - O-RING
  • 0.116" Thk x 1.048" ID
  • -914
  • Cl 6
  • 90 Duro
  • 90 Duro
  • 1.048" ID x .116" Thk
  • Start Year: 01-JAN-84

176 647327

  • 647327 - WASHER
  • 17.5mm ID x 20.34mm OD x 1.32mm Thk
  • Back-Up
  • .690" ID x .052" Thk
  • Start Year: 01-JAN-84

177 9861410

  • 9861410 - O-RING
  • 0.07" Thk x 0.676" ID
  • -17
  • Cl 6
  • 90 Duro
  • 90 Duro
  • .676" ID x .070" Thk
  • Start Year: 01-JAN-84

(655) - 4 CYL TRACTOR LOADER BACKHOE (7/85-10/88) — другие схемы

CYLINDER E7NN3A739CB CYLINDER E7NN3A739CB
DECAL 7001030 DECAL 7001030
DECAL 81871830 DECAL 81871830
DECAL 86554377 DECAL 86554377
DECAL D3NN16N650K DECAL D3NN16N650K
DECAL D5NN7B292CC DECAL D5NN7B292CC
DECAL E3NNA201CB DECAL E3NNA201CB
DECAL E3NNE479AA DECAL E3NNE479AA
DECAL EBPN16A901A DECAL EBPN16A901A
DECAL KIT 251045 DECAL KIT 251045
DIPSTICK D9NNC536AA DIPSTICK D9NNC536AA
DRIVER SEAT 82845158 DRIVER SEAT 82845158
DRIVER SEAT D5NN400B DRIVER SEAT D5NN400B
DRIVER SEAT E7NN400CB DRIVER SEAT E7NN400CB
DRY BATTERY F165DS DRY BATTERY F165DS
EMBLEM 86547710 EMBLEM 86547710
ENGINE E4NN6007BLC ENGINE E4NN6007BLC
ENGINE GASKET KIT 82845206 ENGINE GASKET KIT 82845206
ENGINE OIL PUMP E1NN6600DD ENGINE OIL PUMP E1NN6600DD
ENVELOPE D8NND615AB12Z ENVELOPE D8NND615AB12Z
EXTERNAL REFLECTOR D5NN13A568C EXTERNAL REFLECTOR D5NN13A568C
FENDER D4NN16312Y FENDER D4NN16312Y
FILTER D4NNB951A FILTER D4NNB951A
FLANGE CAR120895 FLANGE CAR120895
FLEXIBLE HOSE 7706573 FLEXIBLE HOSE 7706573
FLEXIBLE HOSE E0NND595CB FLEXIBLE HOSE E0NND595CB
FLEXIBLE HOSE,16.7mm ID x 1447mm L, SAE 100R2 E6NND558AA (1) FLEXIBLE HOSE,16.7mm ID x 1447mm L, SAE 100R2 E6NND558AA (1)
FLEXIBLE HOSE,16.7mm ID x 1447mm L, SAE 100R2 E6NND558AA (2) FLEXIBLE HOSE,16.7mm ID x 1447mm L, SAE 100R2 E6NND558AA (2)
FRAME 83937205 FRAME 83937205
FRAME D9NN5R086AA FRAME D9NN5R086AA
FRAME E0NNC548AB FRAME E0NNC548AB
FRAME E4NN5N359AB FRAME E4NN5N359AB
FUEL FILTER E5NN9N166AA FUEL FILTER E5NN9N166AA
FUEL FILTER E5NN9N166BB FUEL FILTER E5NN9N166BB
FUEL INJECTION PUMP E3NN9A543BC FUEL INJECTION PUMP E3NN9A543BC
FUEL SYSTEM INJECTOR D8NN9F593DB FUEL SYSTEM INJECTOR D8NN9F593DB
FUEL SYSTEM INJECTOR E4NN9F593BA FUEL SYSTEM INJECTOR E4NN9F593BA
GASKET CAR114705 GASKET CAR114705
GLASS D4NN94500N70A GLASS D4NN94500N70A
GLASS D4NN94500N70D GLASS D4NN94500N70D
GREASE GUN EAPN17125A GREASE GUN EAPN17125A
GROMMET D9NN14A246AA GROMMET D9NN14A246AA
HANGER E3NN809BC HANGER E3NN809BC
Harness Assy, Years: -31-MAR-76 Harness Assy, Years: -31-MAR-76
HEADLAMP 83959745 HEADLAMP 83959745
HEADLAMP E2NN13005DC HEADLAMP E2NN13005DC
HOOK D8NNC625AB HOOK D8NNC625AB
HOUSING CAR109015 HOUSING CAR109015
HOUSING CAR114798 HOUSING CAR114798
HOUSING E4NN2A098AA HOUSING E4NN2A098AA
HOUSING E9NN4032BA HOUSING E9NN4032BA
HYD TUBE,22.2 mm OD x 240, 90 mm L HYD TUBE,22.2 mm OD x 240, 90 mm L
HYDRAULIC CYLINDER 86516202 HYDRAULIC CYLINDER 86516202
HYDRAULIC CYLINDER D8NNB580AD HYDRAULIC CYLINDER D8NNB580AD
HYDRAULIC CYLINDER D8NNC492BB HYDRAULIC CYLINDER D8NNC492BB
HYDRAULIC CYLINDER E0NNL903AA HYDRAULIC CYLINDER E0NNL903AA
HYDRAULIC CYLINDER E6NNB579AA HYDRAULIC CYLINDER E6NNB579AA
HYDRAULIC MOTOR 86604767 HYDRAULIC MOTOR 86604767
HYDRAULIC PUMP E7NN3K514CA HYDRAULIC PUMP E7NN3K514CA
HYDRAULIC VALVE 83944121 HYDRAULIC VALVE 83944121
HYDRAULIC VALVE D7NNF893B HYDRAULIC VALVE D7NNF893B
HYDRAULIC VALVE D8NNB637CC29Z HYDRAULIC VALVE D8NNB637CC29Z
HYDRAULIC VALVE E0NN7Z028AA HYDRAULIC VALVE E0NN7Z028AA
HYDRAULIC VALVE E2NNF893CD HYDRAULIC VALVE E2NNF893CD
HYDRAULIC VALVE E5NNB637AA12Z HYDRAULIC VALVE E5NNB637AA12Z
HYDRAULIC VALVE E5NNB637BA12Z HYDRAULIC VALVE E5NNB637BA12Z
HYDRAULIC VALVE E5NNB637DA12Z HYDRAULIC VALVE E5NNB637DA12Z
HYDRAULIC VALVE F0NNF893AA HYDRAULIC VALVE F0NNF893AA
Indicator, Speed, UK 81847106 Indicator, Speed, UK 81847106
INSTRUMENT CLUSTER 83953544 INSTRUMENT CLUSTER 83953544
KIT 83953049 KIT 83953049
KIT D0NN8B152B KIT D0NN8B152B
KIT D8NN9N884BA KIT D8NN9N884BA
KIT EFPN10951A KIT EFPN10951A
KIT EFPN13402A KIT EFPN13402A
KIT EFPN13402B KIT EFPN13402B
KIT EFPN13404B KIT EFPN13404B
KIT EFPN17N390A KIT EFPN17N390A
KIT EFPN17N679A KIT EFPN17N679A
KIT EFPN19N217AA KIT EFPN19N217AA
KIT FBPN13800AA KIT FBPN13800AA
KIT FP115 KIT FP115
LAMP 82005480 LAMP 82005480
LAMP D8NN13404AA LAMP D8NN13404AA
LAMP E3NN15A309AA LAMP E3NN15A309AA
LAMP E6NN13N465CA LAMP E6NN13N465CA
LENS D1AZ13783B LENS D1AZ13783B
LEVER D8NND499AA12Z LEVER D8NND499AA12Z
LEVER D8NND625AA LEVER D8NND625AA
LEVER D9NN2780BC12M LEVER D9NN2780BC12M
LEVER E3NN2780BC LEVER E3NN2780BC
LEVER E3NN7C270AA LEVER E3NN7C270AA
LINER D4NN9451966F LINER D4NN9451966F
LUBE NIPPLE,M6 x 1.0 x 16mm OAL LUBE NIPPLE,M6 x 1.0 x 16mm OAL
MANIFOLD E8NN9424CA MANIFOLD E8NN9424CA
MAT E6NN9413010DB MAT E6NN9413010DB
NOT SERVICED NOT SERVICED
NUMBER PLATE LAMP D8NN13N775BA NUMBER PLATE LAMP D8NN13N775BA
OIL SEAL 9968085 OIL SEAL 9968085
ORDER WHOLEGOODS W0 (1) ORDER WHOLEGOODS W0 (1)
ORDER WHOLEGOODS W0 (2) ORDER WHOLEGOODS W0 (2)
ORDER WHOLEGOODS W0 (3) ORDER WHOLEGOODS W0 (3)
ORDER WHOLEGOODS W0 (4) ORDER WHOLEGOODS W0 (4)
ORDER WHOLEGOODS W0 (5) ORDER WHOLEGOODS W0 (5)
ORDER WHOLEGOODS W0 (6) ORDER WHOLEGOODS W0 (6)
PAINT,Aerosol Spray M20J1750SE5DS (1) PAINT,Aerosol Spray M20J1750SE5DS (1)
PAINT,Aerosol Spray M20J1750SE5DS (2) PAINT,Aerosol Spray M20J1750SE5DS (2)
PANEL 82868707 PANEL 82868707
PANEL 83918738 PANEL 83918738
PEDAL D0NN2456A14M PEDAL D0NN2456A14M
PEDAL D4NN2N455A PEDAL D4NN2N455A
PEDAL D8NND526AA PEDAL D8NND526AA
PIN CAR116369 PIN CAR116369
PIN,54.92mm OD x 214mm L PIN,54.92mm OD x 214mm L
PISTON & RINGS KIT F2NN6K100DA PISTON & RINGS KIT F2NN6K100DA
RADIATOR D8NN8005BB RADIATOR D8NN8005BB
RADIATOR PANEL D8NN8N202GB11Z RADIATOR PANEL D8NN8N202GB11Z
RADIO B0MFT75AM RADIO B0MFT75AM
RESERVOIR D4NN875F RESERVOIR D4NN875F
RIM 83930762 RIM 83930762
207 Все схемы
