New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

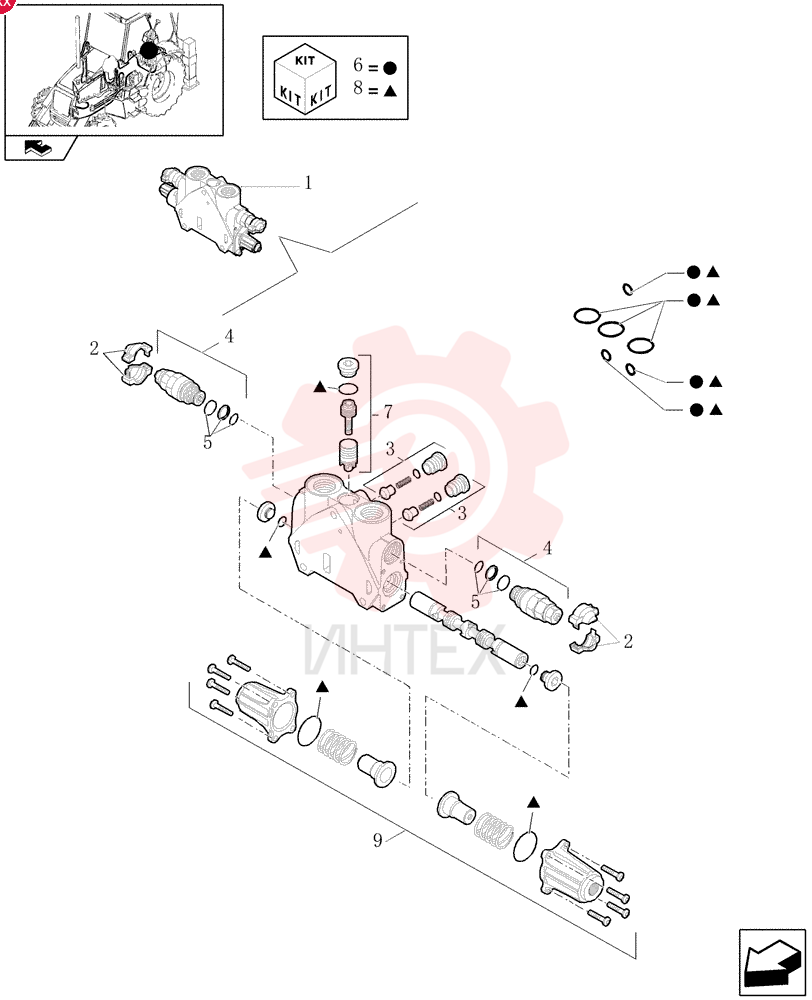

SECTOR 85826931

SECTOR 85826931

SECTOR 85826931

1 85826931

  • 85826931 - SECTOR

2 85811934

  • 85811934 - KIT
  • Half
  • Orange

3 85811938

  • 85811938 - KIT
  • Check Valve

4 85812114

  • 85812114 - HYDRAULIC VALVE
  • 205Bar

5 85811933

  • 85811933 - SEAL KIT
  • Secondary Valve

6 85819148

  • 85819148 - SEAL KIT
  • Between Control Valve Sections

7 85819378

  • 85819378 - KIT

8 85824282

  • 85824282 - KIT

9 85826344

  • 85826344 - KIT
  • Operation
