New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

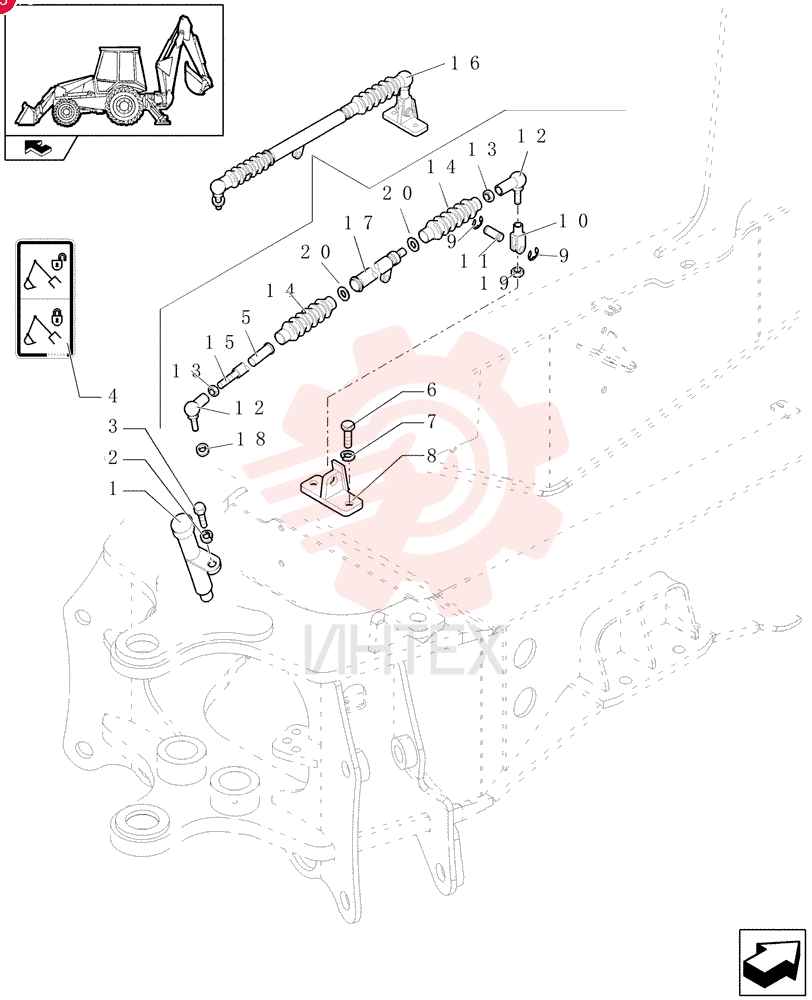

SHOCK ABSORBER 85821268 (1)

SHOCK ABSORBER 85821268 (1)

SHOCK ABSORBER 85821268 (1)

1 85821268

  • 85821268 - SHOCK ABSORBER

2 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

3 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

4 85812278

  • 85812278 - DECAL

5 85819482

  • 85819482 - BUSHING

6 11106221

  • 11106221 - SCREW
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd

7 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

8 85819488

  • 85819488 - SUPPORT

9 85813407

  • 85813407 - RING

10 85819468

  • 85819468 - CLEVIS

11 87302958

  • 87302958 - CLEVIS PIN

12 85819477

  • 85819477 - BALL JOINT

13 85819478

  • 85819478 - NUT

14 85819479

  • 85819479 - BELLOWS

15 85819481

  • 85819481 - ROD

16 87302965

  • 87302965 - TIE-ROD

17 85819480

  • 85819480 - TUBE

18 85821270

  • 85821270 - WASHER

19 85821271

  • 85821271 - NUT

20 85824227

  • 85824227 - CLAMP
