New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

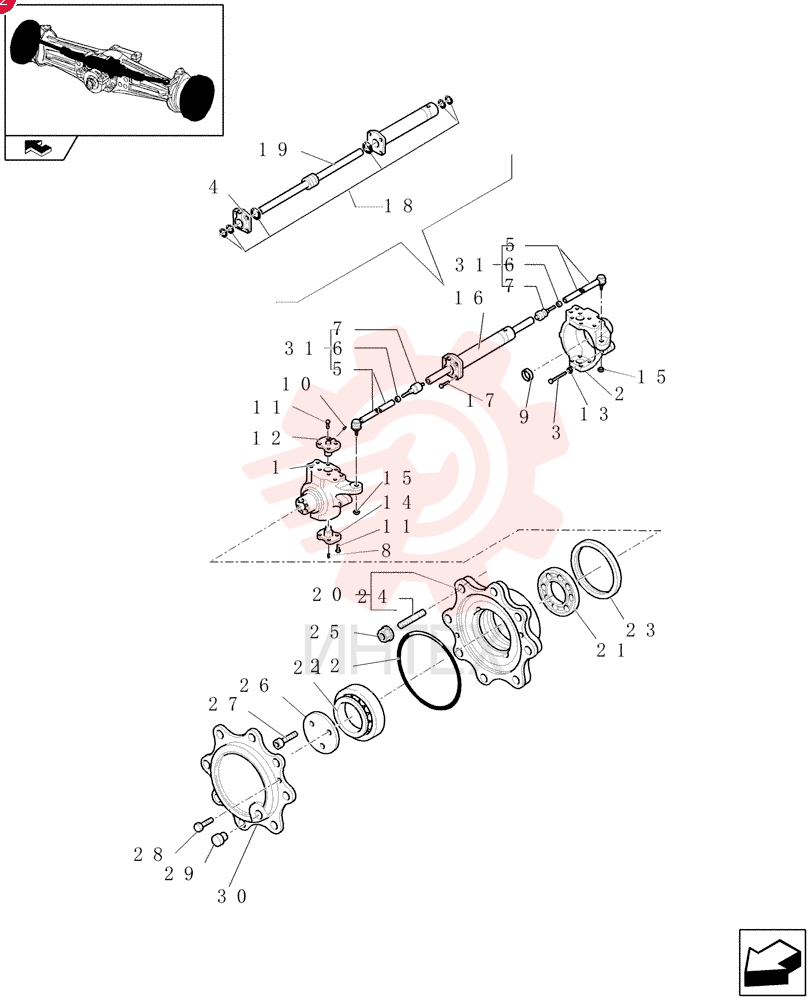

STEERING KNUCKLE 85824351

STEERING KNUCKLE 85824351

STEERING KNUCKLE 85824351

1 85824351

  • 85824351 - STEERING KNUCKLE

2 87673991

  • 87673991 - HOUSING
  • 4 Holes (King Pin Fixing)
  • 8 Holes (Hub Side)
  • 60mm ID (Seal Ring Seat)

3 85824350

  • 85824350 - STEERING KNUCKLE

4 87673972

  • 87673972 - KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 8 Holes (Hub Side)
  • 60mm ID (Seal Ring Seat)

5 85805987

  • 85805987 - SCREW
  • M16 x 100mm

6 85805989

  • 85805989 - CYLINDER HEAD

7 85805977

  • 85805977 - TIE-ROD

8 85805976

  • 85805976 - NUT
  • M18 x 1.5

9 85805975

  • 85805975 - BALL JOINT
  • M18 / M20

10 85805984

  • 85805984 - LUBE NIPPLE

11 85824352

  • 85824352 - PLUG

12 9968021

  • 9968021 - LUBE NIPPLE
  • M6 x 1 x 16mm OAL

13 85805979

  • 85805979 - SCREW
  • Hex Flng
  • M12 x 1.75 x 30mm

14 85805980

  • 85805980 - PIN

15 85805986

  • 85805986 - NUT
  • M16

16 85805983

  • 85805983 - PIN

17 85805982

  • 85805982 - NUT
  • M18 x 1.5

18 85805978

  • 85805978 - STEERING CYLINDER

19 85805978R

  • 85805978R - REMAN-HYD CYLINDER

20 85805978C

  • 85805978C - CORE-HYD CYLINDER

21 9968028

  • 9968028 - SCREW

22 85805990

  • 85805990 - OIL SEAL

23 85805992

  • 85805992 - ROD

24 85806003

  • 85806003 - KIT

25 9967687

  • 9967687 - BALL BEARING

26 85805711

  • 85805711 - O-RING

27 85827067

  • 85827067 - OIL SEAL

28 9968070

  • 9968070 - STUD

29 9968071

  • 9968071 - WHEEL NUT
  • Wheel
  • M18 x 1.5

30 85813054

  • 85813054 - THRUST WASHER

31 85806010

  • 85806010 - SCREW
  • M10 x 45mm

32 85805709

  • 85805709 - BOLT
  • M8 x 20mm

33 85805707

  • 85805707 - PLUG
  • M22 x 1.5

34 85805710

  • 85805710 - COVER

35 85805974

  • 85805974 - TIE-ROD
