New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

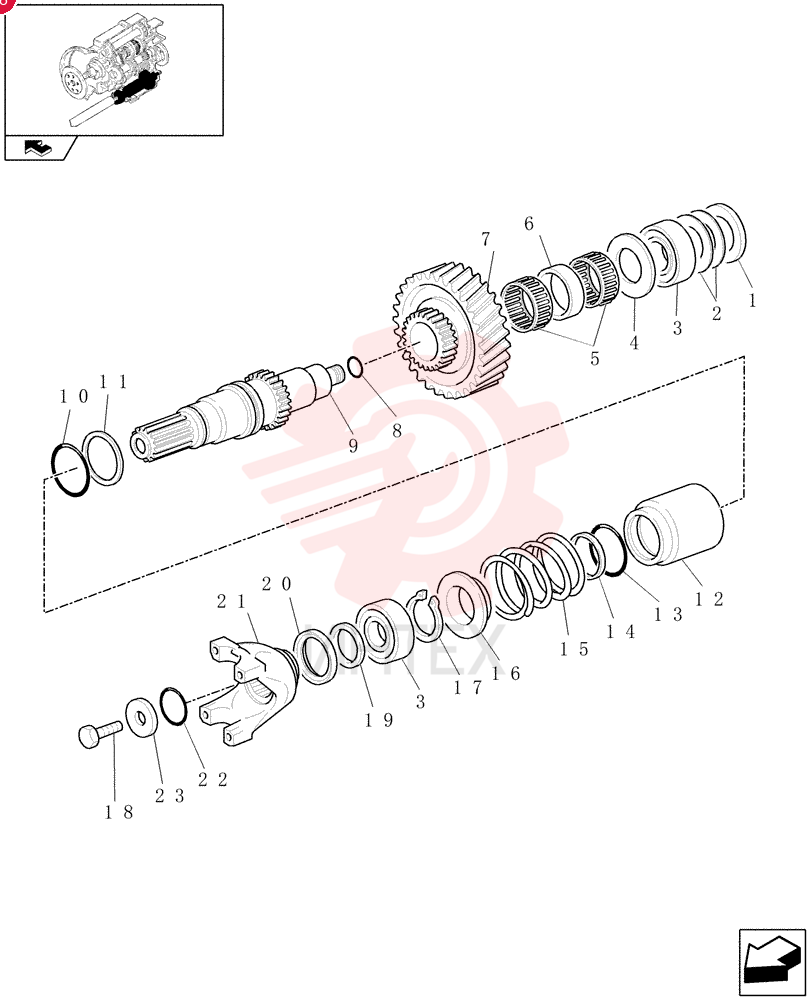

SPACER 9968255

SPACER 9968255

SPACER 9968255

1 9968255

  • 9968255 - SPACER

2 9968256

  • 9968256 - SHIM
  • 0.05mm Thk

3 9968257

  • 9968257 - SHIM
  • 0.08mm Thk

4 9968258

  • 9968258 - SHIM
  • 58mm ID x 67.5mm OD x 0.18mm Thk

5 9968259

  • 9968259 - SHIM
  • 0.6mm Thk

6 9968276

  • 9968276 - BEARING

7 9968244

  • 9968244 - THRUST WASHER

8 85827782

  • 85827782 - NEEDLE BEARING

9 9968393

  • 9968393 - SPACER

10 9968240

  • 9968240 - GEAR

11 9968254

  • 9968254 - SEAL

12 9968239

  • 9968239 - SHAFT

13 9968232

  • 9968232 - SEALING RING

14 9968229

  • 9968229 - SEAL

15 9968234

  • 9968234 - CLUTCH

16 9968298

  • 9968298 - SEALING RING

17 9968297

  • 9968297 - SEALING RING

18 9968235

  • 9968235 - SPRING

19 9968236

  • 9968236 - SUPPORT

20 9968233

  • 9968233 - SNAP RING

21 9968308

  • 9968308 - BOLT

22 9968301

  • 9968301 - SPACER

23 85825506

  • 85825506 - SEAL
  • 48mm ID x 62mm OD x 8mm Thk

24 9968300

  • 9968300 - YOKE

25 9968309

  • 9968309 - SEALING RING

26 9968306

  • 9968306 - WASHER
