(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

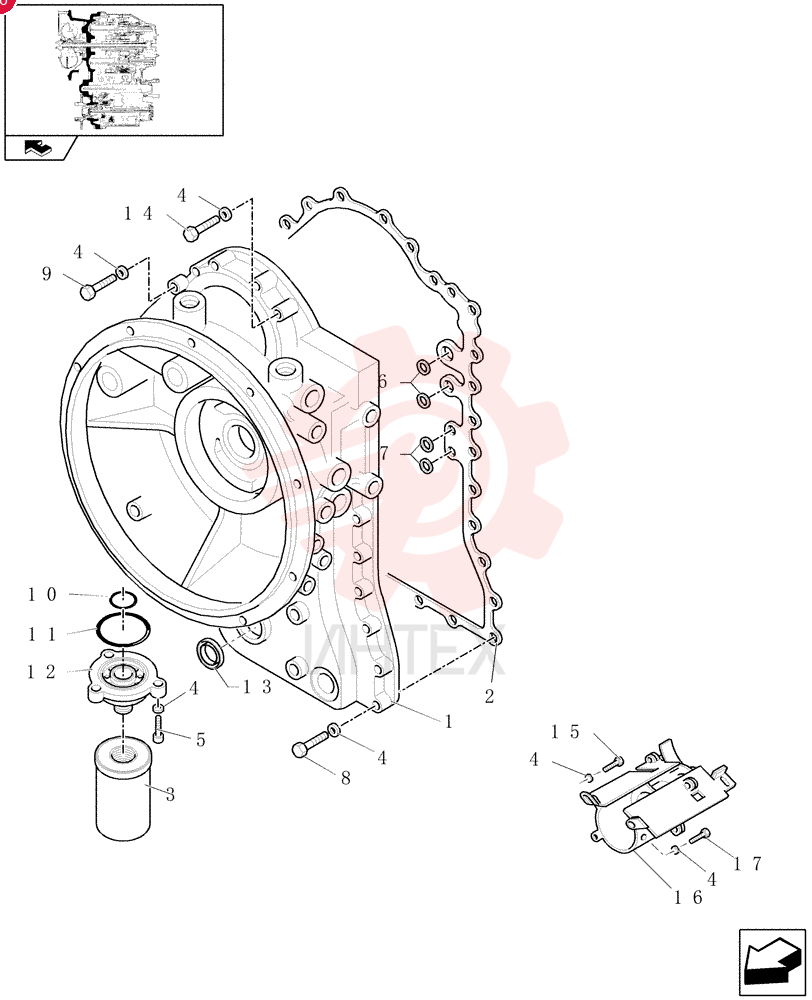

TRANSMISSION HOUSING 9968979

TRANSMISSION HOUSING 9968979

TRANSMISSION HOUSING 9968979

1 9968979

  • 9968979 - TRANSMISSION HOUSING

2 9969002

  • 9969002 - SEAL

3 9968988

  • 9968988 - HYDRAULIC OIL FILTER

4 9968996

  • 9968996 - LOCK WASHER

5 9968997

  • 9968997 - SCREW

6 9969420

  • 9969420 - SEALING RING

7 9969421

  • 9969421 - SEALING RING

8 9969007

  • 9969007 - SCREW

9 9969424

  • 9969424 - SCREW

10 85808324

  • 85808324 - O-RING

11 85808325

  • 85808325 - O-RING

12 85812020

  • 85812020 - FILTER HEAD

13 291527A1

  • 291527A1 - SEAL

14 9969008

  • 9969008 - SCREW

15 9969016

  • 9969016 - SCREW

16 85808326

  • 85808326 - BAFFLE

17 9969000

  • 9969000 - SCREW
