New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

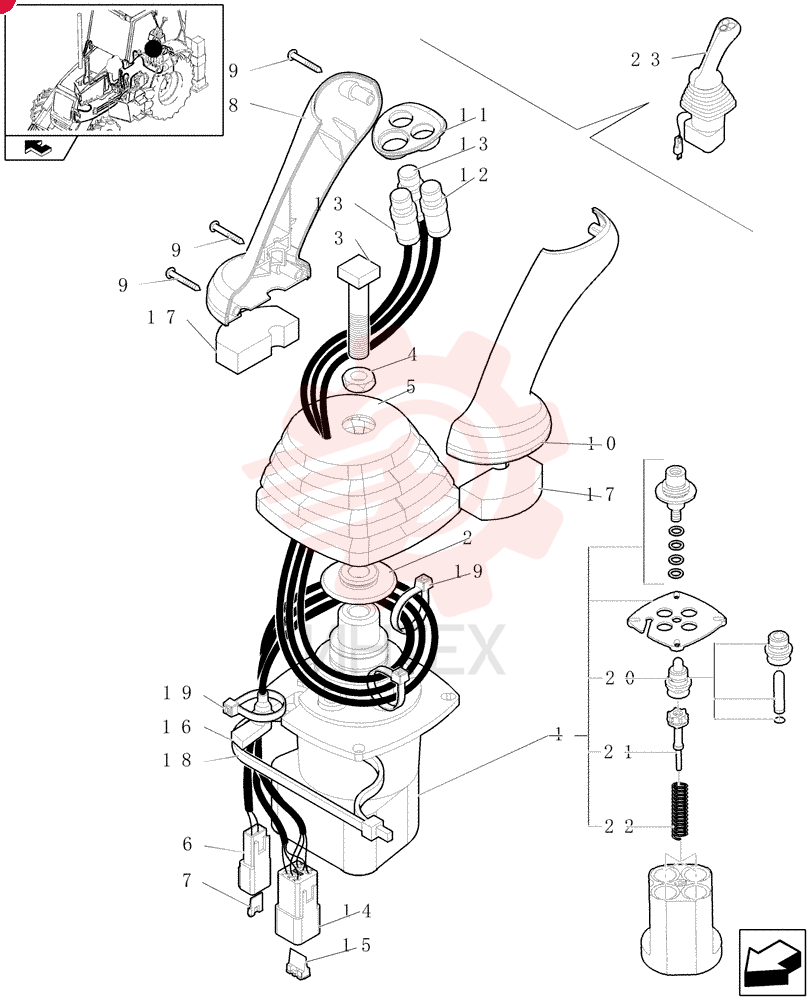

PILOT VALVE 87687141 (4)

PILOT VALVE 87687141 (4)

PILOT VALVE 87687141 (4)

1 87687141

  • 87687141 - PILOT VALVE

2 87687141R

  • 87687141R - REMAN-HYD VALVE

3 87687141C

  • 87687141C - CORE-VALVE HYD

4 87436225

  • 87436225 - RETAINER
  • 12.5mm ID
  • 46mm OD

5 87428023

  • 87428023 - BOLT
  • Square Head
  • M12 x 1.75 x 60

6 87037944

  • 87037944 - THIN NUT
  • Thin
  • M12 x 1.75
  • Cl 05

7 87443721

  • 87443721 - BOOT

8 225315C1

  • 225315C1 - ELEC CONNECTOR
  • Male
  • 2 Pin

9 225318C1

  • 225318C1 - ELEC CONNECTOR
  • 2 Pin

10 87308838

  • 87308838 - HANDLE GRIP

11 15687475

  • 15687475 - SELF-TAP SCREW
  • Pan Hd
  • M3.5 x 25mm
  • SST

12 87308839

  • 87308839 - HANDLE GRIP

13 87435243

  • 87435243 - BEZEL

14 87437372

  • 87437372 - SWITCH ASSY

15 84134639

  • 84134639 - SWITCH

16 225350C1

  • 225350C1 - ELEC CONNECTOR
  • Male
  • 6 Pin

17 225353C1

  • 225353C1 - WEDGE
  • Lock
  • Black

18 87424267

  • 87424267 - GROMMET

19 87435506

  • 87435506 - SEAL
  • 52mmL

20 87438046

  • 87438046 - CABLE TIE
  • 375.9 mm L x 8mm W

21 87000312

  • 87000312 - CABLE TIE
  • 4.8mm W x 203.2mm OAL
  • Nylon

22 87473380

  • 87473380 - GUIDE

23 87586772

  • 87586772 - PLATE

24 87586773

  • 87586773 - KIT

25 87685952

  • 87685952 - JOYSTICK
