New Holland Construction
/
(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

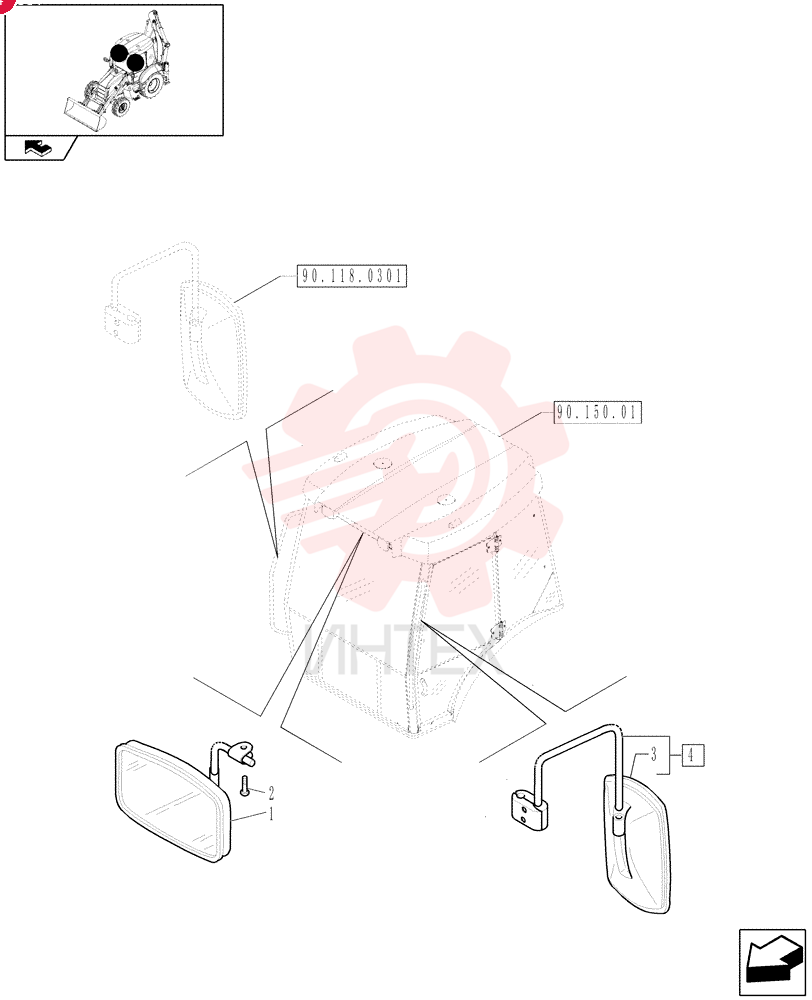

REAR VIEW MIRROR 87665407

REAR VIEW MIRROR 87665407

REAR VIEW MIRROR 87665407

1 87665407

  • 87665407 - REAR VIEW MIRROR

2 13313417

  • 13313417 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M6 x 25mm
  • Cl 5.8
  • Full Thd

3 85820138

  • 85820138 - REAR VIEW MIRROR
  • 170mm x 297mm

4 85820139

  • 85820139 - LH MIRROR
