(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

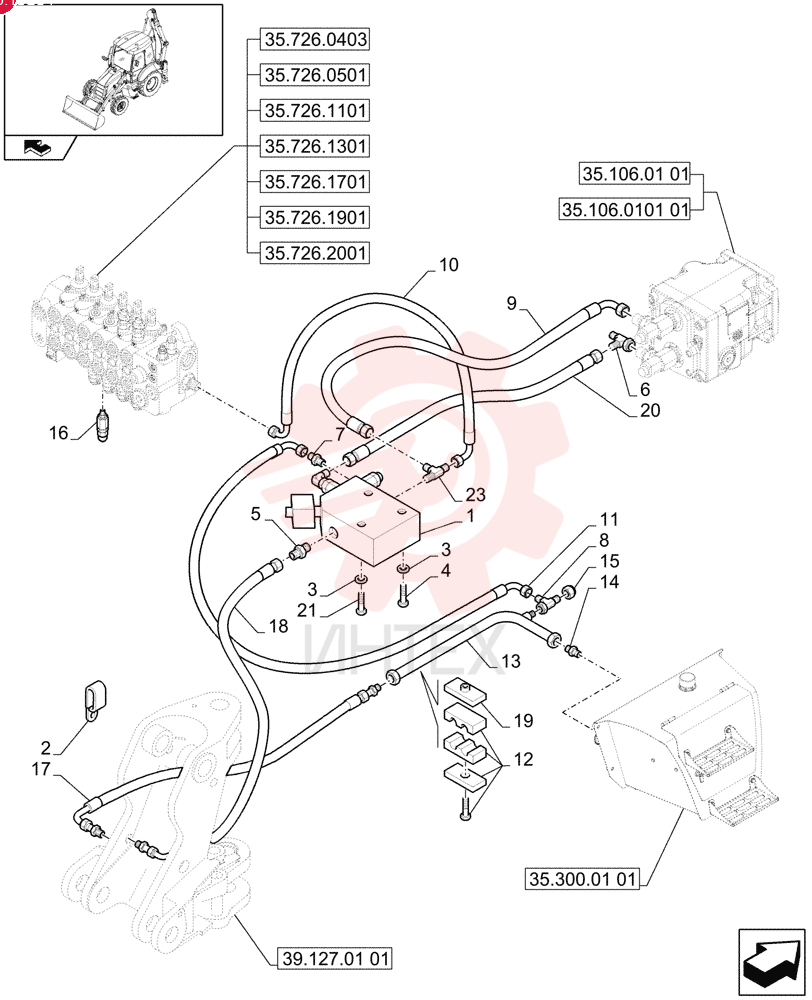

VALVE 87545337 (1)

VALVE 87545337 (1)

VALVE 87545337 (1)

1 87545337

  • 87545337 - VALVE

2 85803346

  • 85803346 - BRACKET

3 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

4 16044821

  • 16044821 - SCREW
  • Hex
  • M8 x 80mm
  • Cl 8.8

5 85803486

  • 85803486 - FITTING
  • 1 7/16"-12 ORFS x 1 1/16"-12 ORB

6 84989848

  • 84989848 - TEE
  • 11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

7 83963371

  • 83963371 - FITTING
  • 11/16"-16 ORFS x 9/16"-18 ORB

8 85807876

  • 85807876 - TEE
  • 1-14 ORS x 11/16-16 ORS x 1-14 SAE

9 84128041

  • 84128041 - FLEXIBLE HOSE
  • 19mm ID x 800mm L

10 87389637

  • 87389637 - FLEXIBLE HOSE
  • 19mm ID x 695mm L

11 85817633

  • 85817633 - HYDRAULIC HOSE
  • 6.35mm ID x 2050mm L

12 87390530

  • 87390530 - CLAMP

13 87389636

  • 87389636 - RETURN PIPE

14 85802801

  • 85802801 - HYD CONNECTOR
  • 1-11/16-12 ORFS x 1-5/16-12 ORB

15 83987627

  • 83987627 - CAP
  • 1-14UN-2A

16 84211070

  • 84211070 - VALVE

17 85820123

  • 85820123 - HYDRAULIC HOSE
  • 19mm ID x 2973mm L

18 87390664

  • 87390664 - FLEXIBLE HOSE

19 87390531

  • 87390531 - PLATE

20 84121388

  • 84121388 - FLEXIBLE HOSE
  • 8mm ID x 900mm L

21 395851

  • 395851 - BOLT
  • Hex
  • M8 x 1.25 x 90mm
  • Cl 8.8
  • Full Thd

22 85802901

  • 85802901 - SPACER
  • 10mm ID x 16mm OD x 17.5mm L

23 87498964

  • 87498964 - TEE
  • 1-7/16-12 ORFS x 1-1/16 UN/UNF 2A ORS x 1-7/16-12 ORFS
