(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

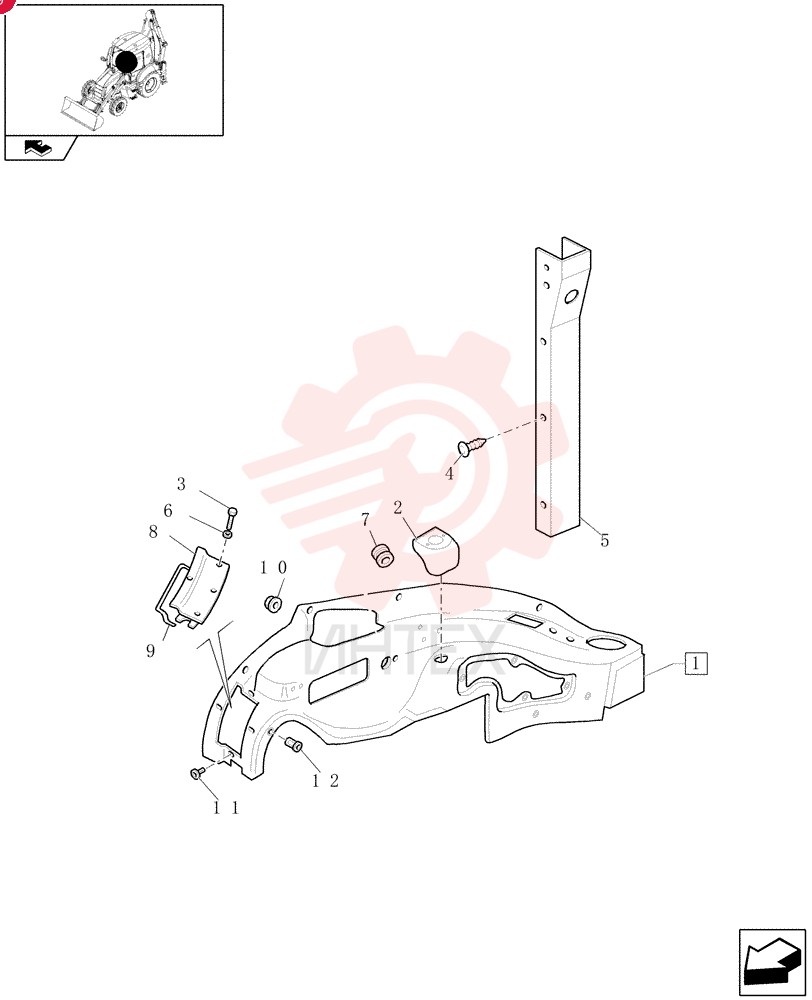

SOFT TRIM 87543600

SOFT TRIM 87543600

SOFT TRIM 87543600

1 87543600

  • 87543600 - SOFT TRIM

2 87743161

  • 87743161 - COVER

3 87745631

  • 87745631 - COVER

4 87543654

  • 87543654 - SOFT TRIM

5 87743160

  • 87743160 - COVER

6 87543716

  • 87543716 - SOFT TRIM

7 87543706

  • 87543706 - SOFT TRIM

8 87743163

  • 87743163 - COVER

9 87540633

  • 87540633 - DASHBOARD

10 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

11 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

12 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

13 85819285

  • 85819285 - SOFT TRIM

14 84130012

  • 84130012 - CONSOLE

15 12647004

  • 12647004 - WASHER
  • 8.15mm ID x 25mm OD x 2.5mm Thk

16 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

17 85825191

  • 85825191 - COVER

18 85806023

  • 85806023 - SEALING STRIP

19 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

20 14059314

  • 14059314 - FLANGE NUT
  • Hex
  • M8 x 1
  • Cl 8

21 85805819

  • 85805819 - THREADED BUSHING
  • M5 x 17mm L

22 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L
