(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

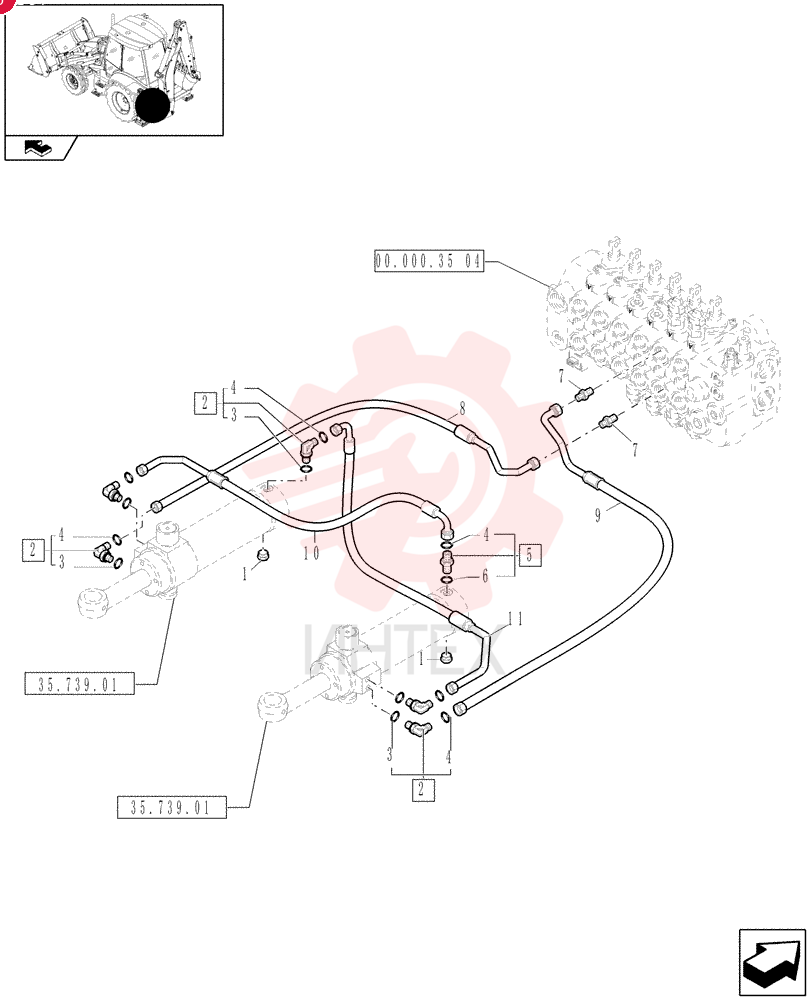

PLUG,3/4" Male 85802955 (1)

PLUG,3/4" Male 85802955 (1)

PLUG,3/4" Male 85802955 (1)

1 85802955

  • 85802955 - PLUG
  • 3/4" Male

2 83971549

  • 83971549 - 90 ELBOW
  • 13/16"-16 ORFS x 3/4"-16 ORB

3 80128825

  • 80128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

4 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

5 9992305

  • 9992305 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 3/4" - 16 ORB

6 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

7 87582906

  • 87582906 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 1-1/16" - 12 ORB

8 85819730

  • 85819730 - HYDRAULIC HOSE
  • 9.5mm ID x 480mm L

9 87755221

  • 87755221 - PIPE

10 87755220

  • 87755220 - PIPE

11 85819728

  • 85819728 - HYD TUBE

12 85820109

  • 85820109 - HYD TUBE

13 85819727

  • 85819727 - HYDRAULIC HOSE
  • 415mm lg

14 85819729

  • 85819729 - HYDRAULIC HOSE
  • 9.5mm ID x 385mm L
