(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

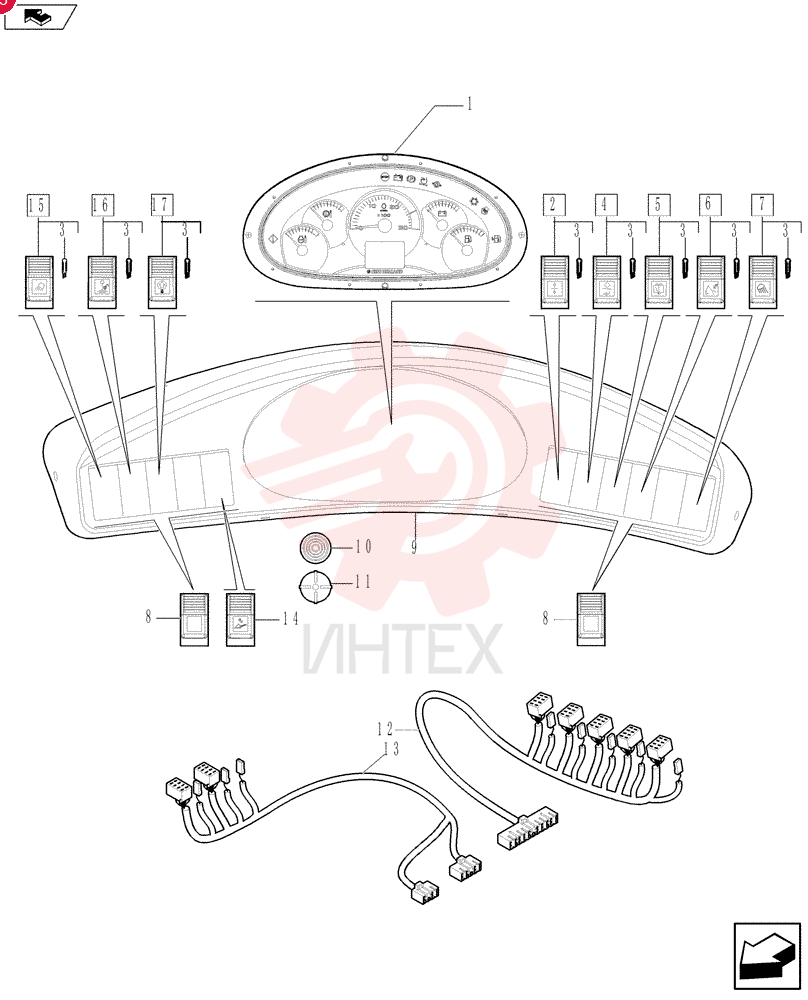

INSTRUMENT PANEL 87521757 (1)

INSTRUMENT PANEL 87521757 (1)

INSTRUMENT PANEL 87521757 (1)

1 87521757

  • 87521757 - INSTRUMENT PANEL

2 87536826

  • 87536826 - TOGGLE SWITCH

3 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

4 87536827

  • 87536827 - TOGGLE SWITCH

5 85818823

  • 85818823 - SWITCH ASSY

6 85819141

  • 85819141 - SWITCH ASSY

7 85818819

  • 85818819 - LIGHT SWITCH

8 85825254

  • 85825254 - PLUG

9 87540632

  • 87540632 - DASHBOARD

10 87527167

  • 87527167 - HORN
  • 5-15V

11 87539792

  • 87539792 - COVER

12 87550456

  • 87550456 - DASHBOARD

13 87482387

  • 87482387 - HARNESS

14 47659695

  • 47659695 - WIRE HARNESS

15 85819074

  • 85819074 - SWITCH ASSY

16 85818818

  • 85818818 - LIGHT SWITCH

17 85818895

  • 85818895 - SWITCH ASSY

18 87704582

  • 87704582 - SWITCH
