New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

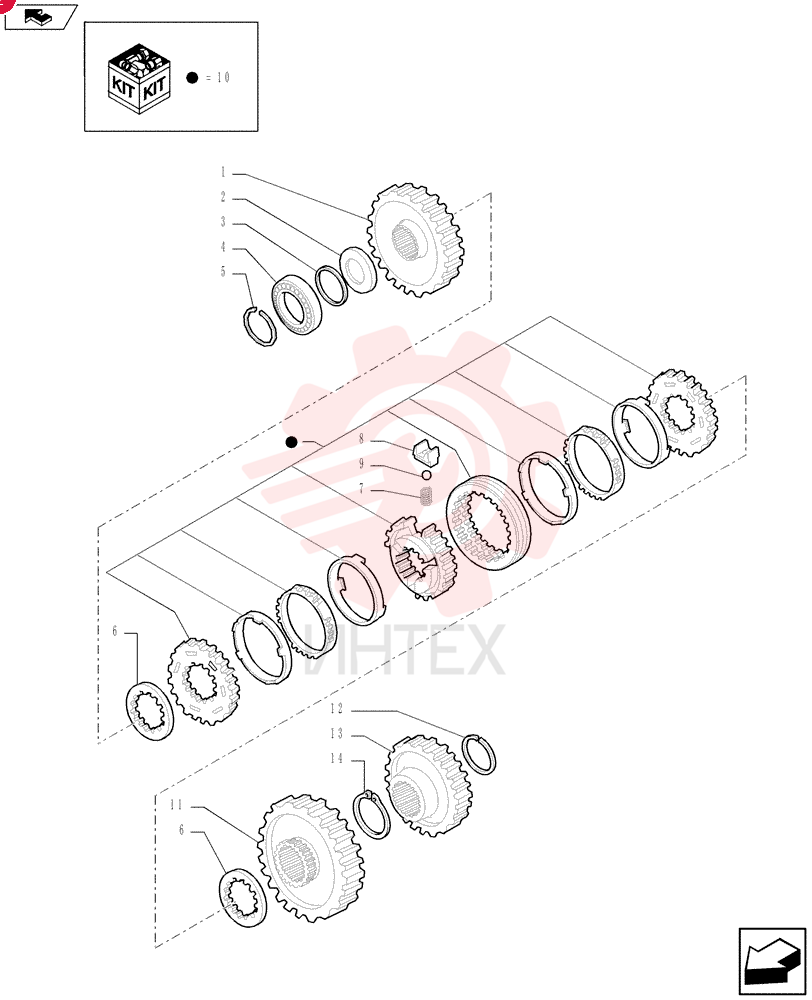

GEAR,44T 87701278 (1)

GEAR,44T 87701278 (1)

GEAR,44T 87701278 (1)

1 87701278

  • 87701278 - GEAR
  • 44T

2 358649A1

  • 358649A1 - THRUST WASHER

3 358650A1

  • 358650A1 - SHIM
  • 0.05mm Thk

4 358651A1

  • 358651A1 - SHIM
  • 0.1mm Thk

5 358652A1

  • 358652A1 - SHIM
  • 0.3mm Thk

6 196454A1

  • 196454A1 - SHIM
  • 0.5mm Thk

7 181132A1

  • 181132A1 - ROLLER BEARING
  • 40mm ID x 80mm OD x 18mm W

8 181118A1

  • 181118A1 - RING
  • LOCKING
  • 36.5mm ID x 1.75mm Thk

9 244109A1

  • 244109A1 - SPACER

10 384773A1

  • 384773A1 - COIL SPRING

11 326865A1

  • 326865A1 - SPACER

12 384769A1

  • 384769A1 - BALL

13 190427A1

  • 190427A1 - SYNCHRONIZER
  • 90T

14 87701293

  • 87701293 - GEAR
  • 50T

15 358654A1

  • 358654A1 - RING
  • SNAP
  • 65.5mm ID
  • Ext

16 358656A1

  • 358656A1 - GEAR
  • 44T

17 358655A1

  • 358655A1 - RING
  • SNAP
  • 67.4mm ID
  • Ext
