(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

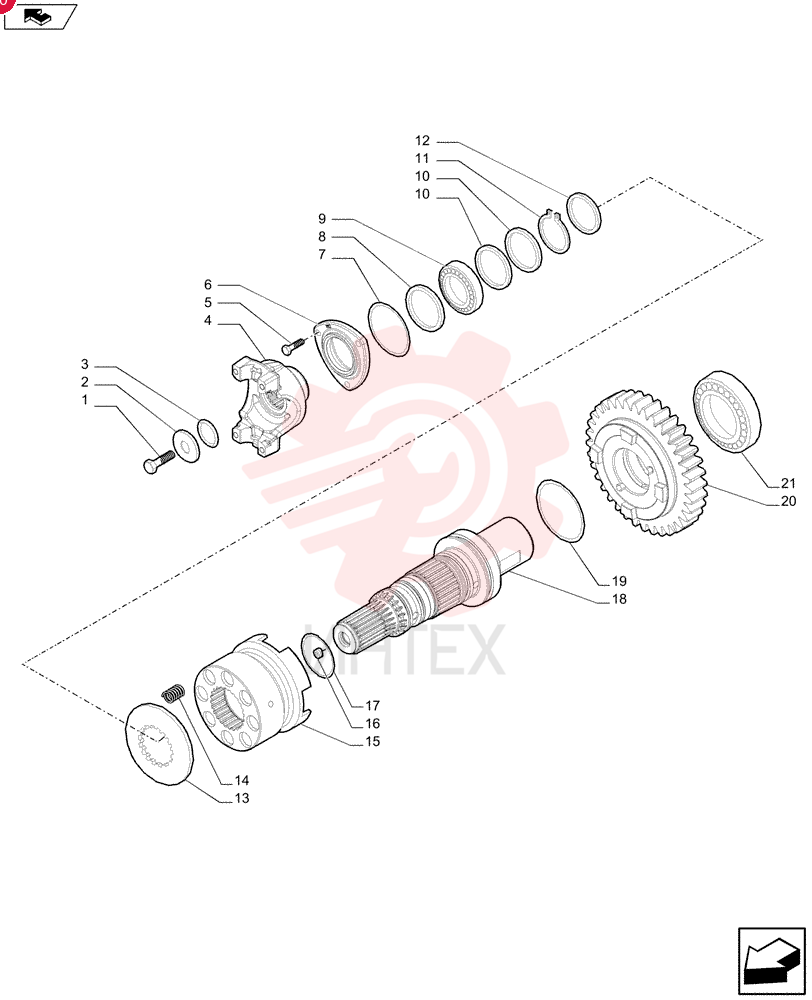

SCREW,M12 x 1.25 x 25mm P3533055 (2)

SCREW,M12 x 1.25 x 25mm P3533055 (2)

SCREW,M12 x 1.25 x 25mm P3533055 (2)

1 P3533055

  • P3533055 - SCREW
  • M12 x 1.25 x 25mm

2 P2745466

  • P2745466 - WASHER

3 238-8217

  • 238-8217 - O-RING
  • 0.139" Thk x 1.171" ID
  • -217
  • Cl 8
  • 90 Duro

4 87704971

  • 87704971 - YOKE

5 614-8022

  • 614-8022 - BOLT
  • Hex
  • M8 x 1.25 x 22mm
  • Cl 8.8
  • Full Thd

6 181198A1

  • 181198A1 - COVER

7 112517A1

  • 112517A1 - O-RING
  • 0.103" Thk x 2.8" ID
  • -149
  • Cl 5
  • 75 Duro

8 181122A1

  • 181122A1 - OIL SEAL
  • 50mm ID x 65mm OD x 8mm Thk

9 ST205A

  • ST205A - BEARING
  • BALL
  • 35 mm ID x 72 mm OD x 17 mm

10 358645A1

  • 358645A1 - SEALING RING

11 800-5145

  • 800-5145 - SNAP RING
  • M45
  • Ext

12 P2745478Q

  • P2745478Q - WASHER

13 366231A1

  • 366231A1 - WASHER

14 100753A1

  • 100753A1 - SPRING
  • Compression
  • 15mm OD x 41.2mm L

15 366232A1

  • 366232A1 - TRANSMISSION SLEEVE

16 D142898

  • D142898 - PLUG
  • M10 x 1

17 366236A1

  • 366236A1 - O-RING
  • 3.53mm Thk x 42.85mm ID

18 366230A1

  • 366230A1 - SHAFT

19 366235A1

  • 366235A1 - O-RING

20 366234A1

  • 366234A1 - PINION
  • 36T

21 181126A1

  • 181126A1 - BEARING
  • BALL
  • 45 mm ID x 85 mm OD x 19 mm
